Complete Kit - Check-line DC**-3000PS series Operating Instructions Manual

2.4

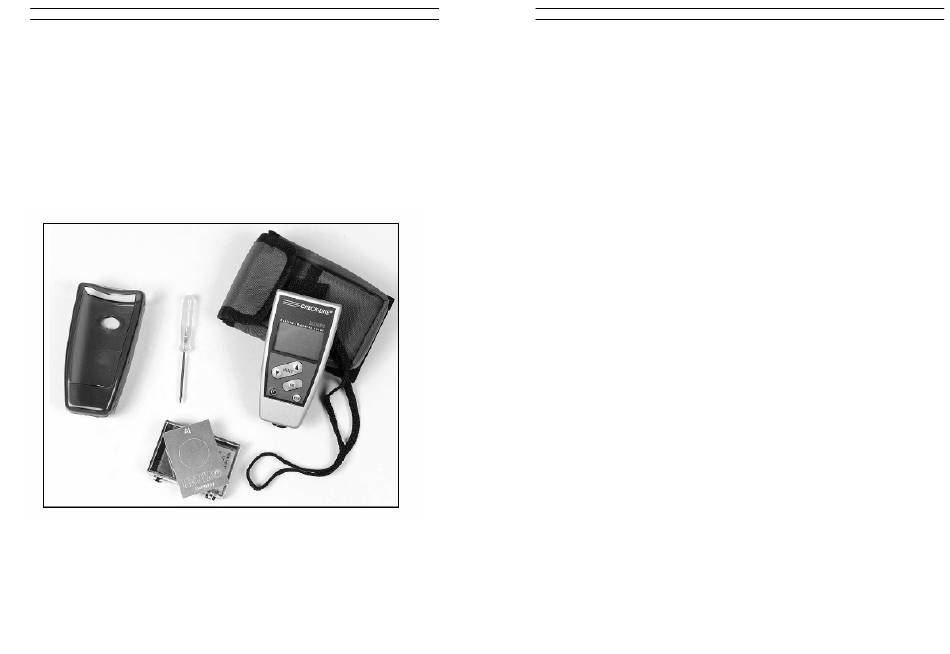

Complete Kit

3000PS Series gauges are supplied as a complete kit, including:
- Gauge
- Probe
- Zero calibration standards (Fe-stainless and/or Al)
- Calibration foils (2),
- Batteries (2x AA)
- Operating manual
- Calibration certificate
- Carrying case
© Checkline-Europe
-6-
9.0 SPECIFICATIONS
0 - 1500 μm (0 – 60.00 mils)
Range
Accuracy ± (1μm / 0.04 mils + 1% of reading)
Display Back-lit, 4-digit alphanumeric, digit height 10mm (0.4")
Min. Measuring Area 5mm x 5mm (0.2" x 0.2")
Min. Curv. Radius concave: 5mm (0.2"), convex: 3mm (0.12")
Min. Substrate Thickness 0.5 mm (20 mils)
Calibration Factory calibration, zero calibration, foil calibration,
Off-set function: addition or subtraction of a constant
value
Memory 80 readings
Statistics Program Number of readings, mean value, standard deviation,
maximum and minimum reading of max. 10,000
readings
Set Limits Adjustable selectable with acoustic alarm
Data Output Infrared IrDA standard
Operating Temp. 0 °C to 50 °C (32 °F to 122 °F)
Surface Temp. -15 °C to 60 °C (5 °F to 140 °F)
Storage Temp. -20 °C to +60 °C (-4 °F to 140 °F)
Power 2 AA - 1.5V
Dimensions 140mm x 562mm x 30mm (5.6" x 2.5" x 1.2")
Weight 200 g (7 oz) - gauge + probe
Protection Class IP 52 (proof against dust and dripping water)
Standards DIN, ISO, ASTM, BS
