Using The Gauge - Check-line DC**-3000PS series Operating Instructions Manual

A IR Sensor Transmits stored measurement data to a PC or printer
equipped with an infrared adapter
B LCD Screen Displays numerical data & operator prompts
C UP & DOWN Use to:
1. Scroll through main menu
2. Set calibration
3. Set zero offset
4 Set limit alerts
D OK Key Use to:
1. Confirm menu selection
2. Complete setting an action
E Power Switch Turns the gauge on and off
F Measurement Must be in contact with test sample for measurement
Sensor data to be recorded
G ESC Key Use to:
1. Move back to next higher menu level
2. Delete last reading (immediately after recording it)
3. Delete of statistics & stored readings
4. Exit calibration, zero offset and limit alert setting procedures
2.2

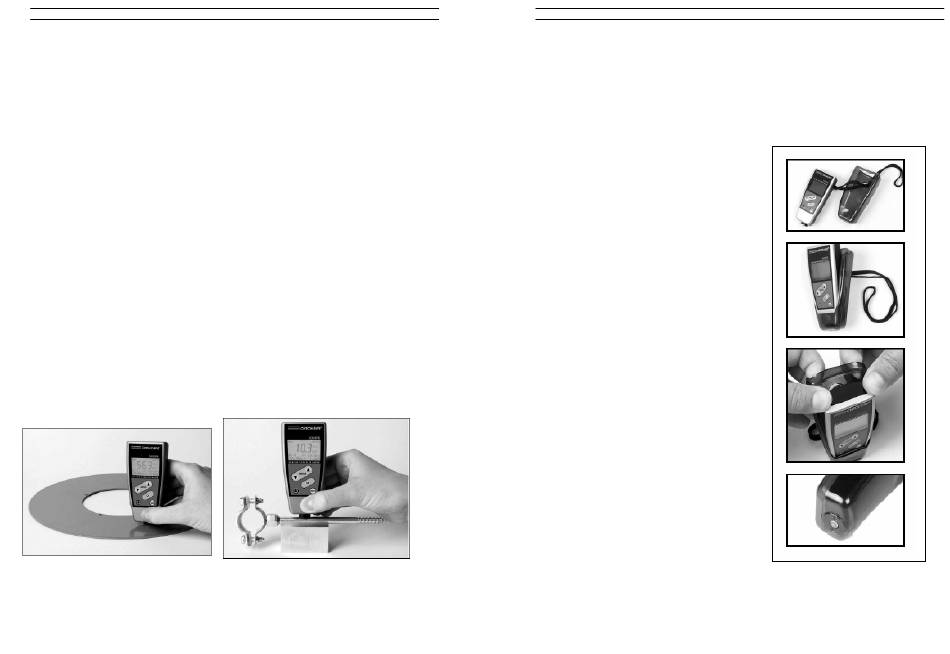

Using the Gauge

Measurement on flat areas
© Checkline-Europe
Measurement on cylindrical areas
-4-
12.0 PROTECTIVE RUBBER SHELL
The gauge is supplied with a durable rubber shell that provides an added measure
of physical and environmental protection in harsh applications.
To put on the shell, follow the procedure outlined below:
1. Insert the carrying strap through the hole in
the back of the proctective shell.
2. Slide the bottom of the gauge into the bottom
of the rubber shell. Press firmly to be sure
the gauge is fully seated.
3. Place your thumbs on top corners of the
gauge. Use your forefingers to slip the top
corners of the shell over the top corners of
the gauge.
4. Check the bottom of the gauge to be sure
that the measurement sensor is unobstruted
and adjust the shell if needed.
© Checkline-Europe
-21-
