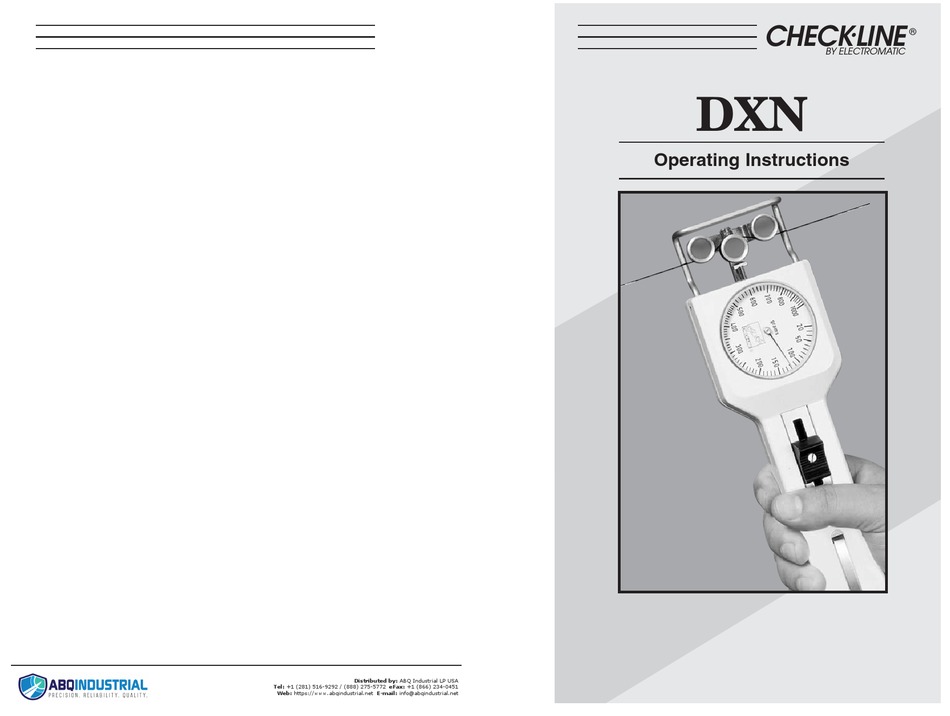

- Page 1 CHECK LINE ® • BY ELECTROMATIC Operating Instructions Distributed by: ABQ Industrial LP USA Tel: +1 (281) 516-9292 / (888) 275-5772 eFax: +1 (866) 234-0451 Web: https://www.abqindustrial.net E-mail: info@abqindustrial.net...
-
Page 2: Table Of Contents
OI803N 7.0 DXN MODEL DATA & SPECIFICATIONS CONTENTS Accuracy* ± 1% of full scale or ......... -
Page 3: Overview & Operating Principle
1.0 OVERVIEW & OPERATING PRINCIPLE 6.3 Air Dashpot Damping DXN Tension Meters incorporate a moderate amount DXN Tension Meters are hand-held, mechanical of movement damping to smooth out some high fre- instruments which accurately measure the running as quency tension fluctuation. However, where process... -
Page 4: Operating Elements
6.0 OPTIONS 2.0 OPERATING ELEMENTS 6.1 High-Speed Guide Rollers Roller Guides Measured Material DXN guide roller assemblies are rated 2000 meters/min., maximum. The following high-speed roller assemblies are optionally available: “K” Roller Assembly : 3,500 meters/min., maximum “HS” Assembly : 5,000 meters/min., maximum... -
Page 5: Thickness Compensation
3.0 THICKNESS COMPENSATION 5.4 Calibration Verification Schedule Frequency of calibration accuracy verification depends The 3-roller system for on many factors. These include frequency and extent tension measurement relies of tension overloads, operating speeds, length of oper- on the displacement of the ating times, environment, care in handling, etc. -
Page 6: Quick Start Instructions
3. Slowly release pressure on the Thumb Piece until 5.3 NIST Calibration the outer rollers return to their original position. While all DXN instruments are furnished with a This will automatically direct the material into the Calibration Certificate which certifies that they have guide roller grooves. - Page 7 5.0 CALIBRATION NOTES 5.1 Calibration with Factory Standard Filaments All DXN Tension Meters are calibrated with laboratory The calibration process weights suspended from factory Standard nylon involves hanging laboratory monofilament sizes, as noted in the table below. Any weights from a fixed point,...
