Panel mounting unit

3.2.1 Layout and Ground connection

The proper ground connection has to be realised over the panel door. No additional
grounding required!

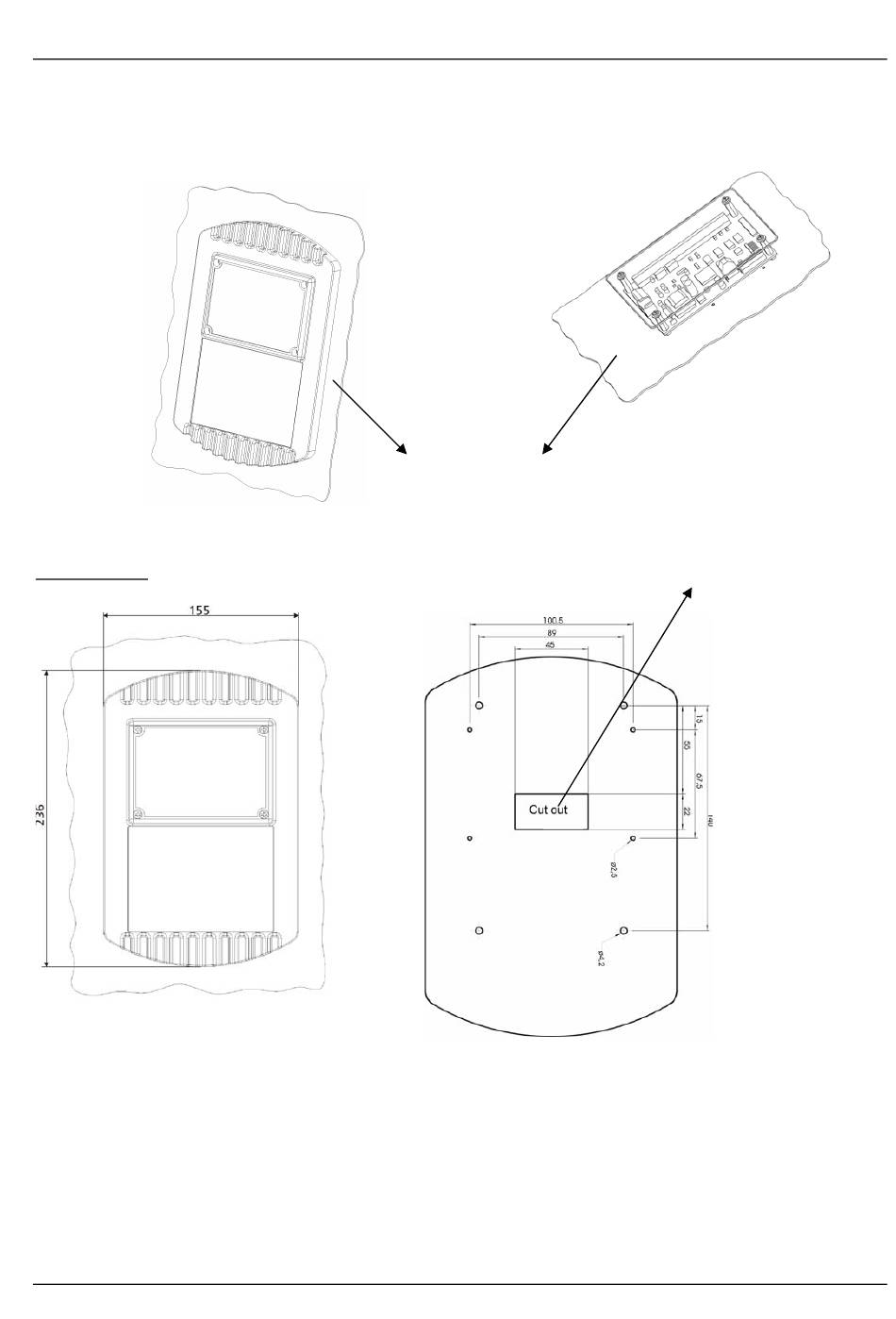

Dimensions:
All dimensions in mm
Panel door
You can find the drilling plan in
the real dimensions 1:1 on an
enclosed sheet.
10
Cutting or punching
