AC In/Charge
Inverter On
Low Battery
Fault
Enter
Xanbus System Control Panel
5.5 [140]
6 [152]
5 [127]

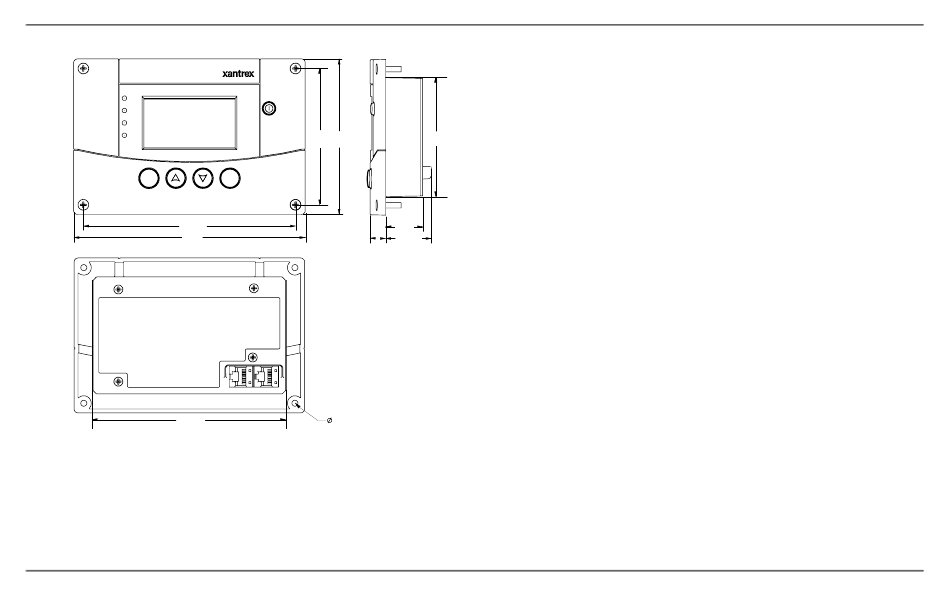

Figure 15 Xanbus SCP Dimensions
97-0022-01-01
STBY/ON
Fault Clear
3.53 4.03
[90] [102]
Func
.40
.96 [24]
[10]
1.18 [30]
ALL DIMENSIONS IN INCHES [mm]
0.125 [3] TYP.
3.04 [77]
Specifications
35
