TRUECHARGE™ 2 Remote Panel Owner's Guide
WARNING: Fire hazard
Read, follow, and save these instructions to reduce the risk of fire hazard, equipment damage, or
malfunction.
WARNING: Limitations on use
Do not use Remote Panel in connection with life support systems, medical equipment, or where human
life or medical property may be at stake.
This package includes:
1. Truecharge2 Remote Panel unit (Product Number: 808-8040-01)
2. Two 7.6 m (25 ft.) communications cables
3. Owner's Guide with mounting template
4. 1½" NPT locknut (for mounting)
About the Truecharge2 Remote Panel
The Remote Panel can be used to:
• Set the charger to on or standby,
1
• Adjust maximum charger output settings
,
• Program the charger for battery type and temperature,
• Set the charger mode (two or three-stage charging),
• Activate and terminate equalization (not allowed for GEL and AGM),
• Monitor charger status and output,
• Display faults and warnings,
• Display individual battery bank status, and
• Operate two chargers connected in parallel to increase output capacity.
2a
2
6a
1
3

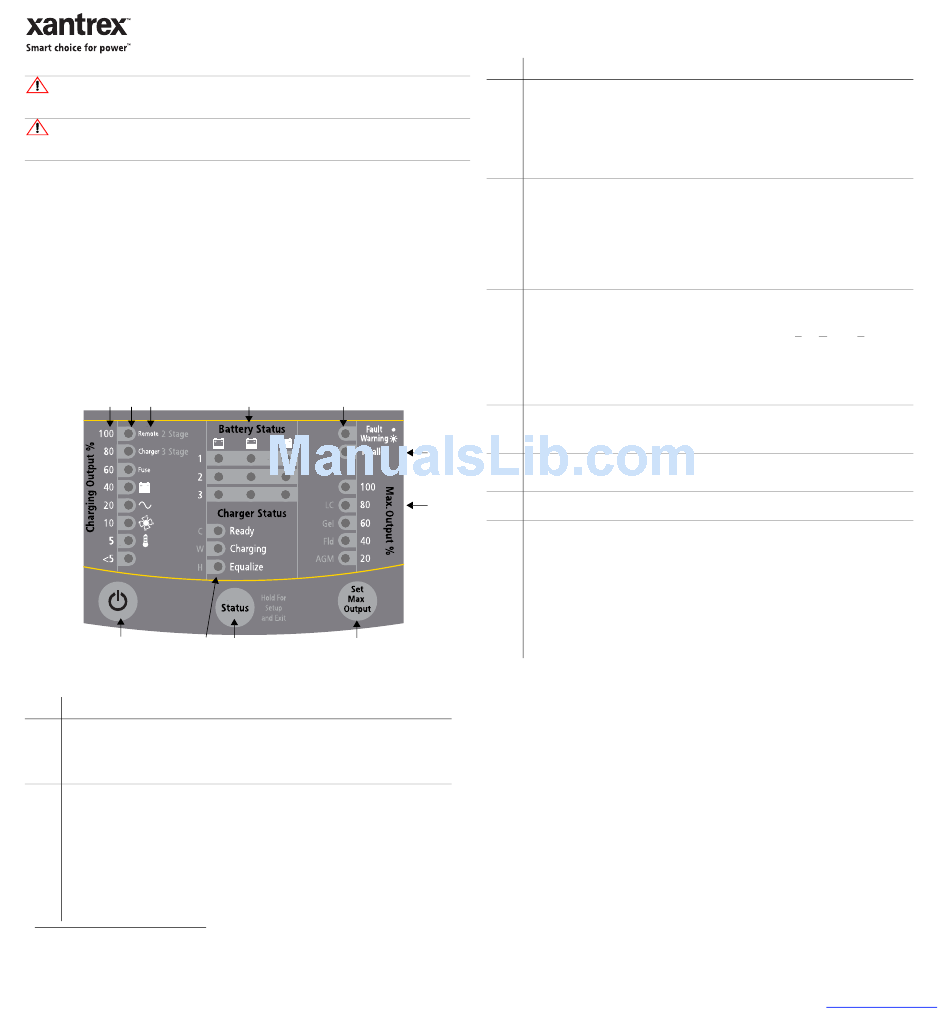

Figure 1 Truecharge2 Remote Panel
Item
Description
1
/
Button
ON
STANDBY
Press to enable or disable the charger while AC power is connected.
When in Setup Mode: Press to select the Charger Mode: two or three-stage.
To set or cancel an Equalization program: Press and hold both the Status and
buttons for more than five seconds.
2
Charging Output (%) LEDs
The LEDs illuminate like a bar graph displaying the present total output charge current as a
percentage of the maximum rated charge current. For example, unit model TC4012 has a
maximum rated charge current of 40 A so at 60% the charger's current output is 24 A. The
numbers to the left of the LEDs represent the percentage values (see 2a).
NOTE: When the maximum Charge Output current is limited by pressing the Set Max Output
button, the LEDs will still display the total charge output current as a percentage of the
maximum charge current and NOT as a percentage of the limited charge current.
An LED may flash intermittently in combination with a solid Fault LED to indicate a fault or
with a flashing Fault LED to indicate a warning condition. The icons on the right side of the
LEDs represent different types of faults and warnings.
1.
Limits the maximum charger output current (20, 40, 60, 80, and 100% of charger rating) to lower the current drawn from the
generator or AC source
4
6
5
9
/
ON
STANDBY
Item
Description
3
Charger Status LEDs
Displays the present status of the charger.
Ready - a solid light indicates that all batteries are fully charged and in rest stage.
Ready and Charging - solid lights indicate that batteries are fully charged and in float stage.
Charging - a solid light indicates that the charger is performing a normal charge cycle.
Equalize - a solid light indicates that the charger is performing an equalization cycle.
- a flashing light indicates that the equalization cycle will begin after the absorption
stage is done.
4
Battery Status LEDs
Displays the present status of each battery (or battery bank) – available only on the Remote Panel.
Each row represents the battery (or battery bank) number designation—1, 2, or 3. Each column
represents Low, Medium, or Full battery capacity.
NOTE: These levels are measured and the status updated at the start of each stage in the charge
cycle during charging, on demand when AC is disconnected and the Status button is pressed, or
whenever AC is cycled.
Low if battery voltage is below 11.9 V (23.8 V for 24 Vdc systems)
Medium if the voltage is 11.9 to 12.4 V (23.8 to 24.8 V for 24 Vdc systems)
Full if the voltage is above 12.4 V (24.8 V for 24 Vdc systems)
5
Status Button
NOTE: The LEDs will flash intermittently when the Remote goes into Setup Mode.
Press and hold for five seconds to enter Setup Mode.
When in Setup Mode: Press to select the Battery Temperature: Cold, Warm, or Hot.
NOTE: If the optional BTS
Press and hold for five seconds to save settings and exit Setup Mode.
When setting or cancelling an Equalization cycle or program: Press and hold both the Status
and
/
ON
STANDBY
When AC is disconnected: Press to view battery status.
6
Fault/Warning LED
The LED displays a solid light to indicate a fault condition or flashes intermittently to indicate a
warning condition. Faults or warnings are displayed in combination with a flashing Charging
Output (%) LED to indicate the type of fault or warning (6a).
7
7
Parallel LED
The LED illuminates a solid light indicating that two Truecharge2 Battery Chargers are in parallel
configuration.
8
Max. Output (%) LED
8
The LED illuminates a solid light corresponding to the Maximum Charger Output % setting.
9
Set Max Output Button
Press to select and limit the maximum charge current. For example, the unit model TC4012
has a maximum charge current of 40 A. Changing the Max Output setting from 100 to 80 will
limit the maximum charge current to 32 A (80% of 40 A). It will also limit the equalization
current if the Max Output is set to below 50%. This feature is available only on the Remote
Panel.
When in Setup Mode: Press to select the Battery Type: AGM, Flooded, GEL, or Lead-
Calcium.
NOTE: The OEM battery type setting is also available if a custom setting has been programmed
by Xantrex or a designated OEM and is indicated when all four battery type LEDs are
illuminated.
a. Battery Temperature Sensor (to order reference part number: 808-0232-01)
Installing the Truecharge2 Remote Panel
1. Choose a location for the remote panel that is within 7.6 m (25 ft.) from the charger. Use only the six-conductor
communications cable (RJ-12) that comes with the package. If you require a longer communications cable, call
Xantrex and order the 15.2 m (50 ft.) communications cable (part number: 31-6262-00).
2. Use the mounting template provided on the right to predrill a 1.875-inch (48 mm) hole where the threaded
bracket at the back of the remote will go through and a small 0.125-inch (3 mm) hole where the stud pin will go.
Take care that there is nothing behind the surface for you to damage such as other cables or pipes.
3. After making the holes, push the back of the remote panel through and secure the remote panel in place by
screwing the locknut (provided) to the threaded bracket until fastened firmly to the wall.
4. Connect the RJ-12 connector to the remote panel's PRIMARY port and route it to the charger. Be careful not to
damage the connector locking tab when routing the cable. You can protect the locking tab by covering it with tape
temporarily to prevent it from catching on something and breaking off when routing the cable.
5. Once the Truecharge2 Battery Charger is mounted, plug the other RJ-12 connector into the Remote port on the
rear panel of the primary Truecharge2 Battery Charger.
6. If two Truecharge2 Battery Chargers will be operated in parallel, connect the second communications cable to the
remote panel's second RJ-12 port. Connect the other end of the cable to the secondary charger's Remote port.
IMPORTANT: If the remote panel does not turn on automatically when you first connect it to a powered
Truecharge2 Battery Charger, cut power to the battery charger by disconnecting the AC source (via the AC
breaker switch) and disconnecting the batteries (via the DC disconnect switch). Wait one minute before returning
power to the battery charger.
975-0373-01-02 Revision A December 2010
a
is used, the battery temperature setting is adjusted automatically.
buttons.
