Operation of the Xanbus System Control Panel
Using the STBY/ON Fault Clear Button
The STBY/ON Fault Clear button has two functions.
The STBY/ON Fault Clear button can disable inverting and charging
functions for all SCPs in the system, or when pressed momentarily, can be
used to clear all faults in the system.
T M
AC In/Charge
Inverter On
Low Battery
Fault
Enter Func
Xanbus System Control Panel (SCP)

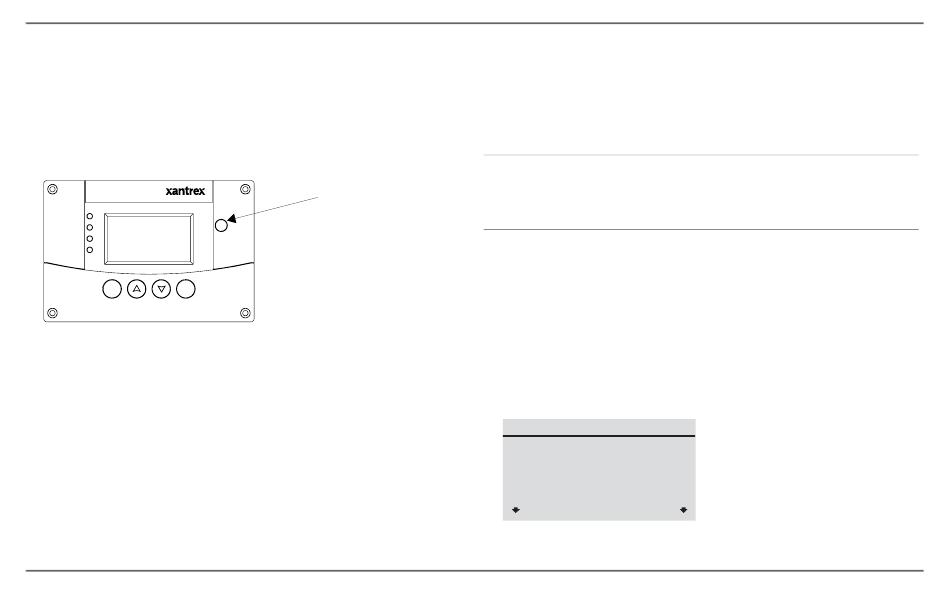

Figure 10 Xanbus SCP STBY/ON Fault Clear Button
26
STBY/ON Fault Clear
Button
STBY/ON
Fault Clear
FGA: 809-0921
Warnings and Faults
This section describes how fault and warning messages behave, and what
you should do when they appear. For a complete list of fault and warning
messages specific to the SCP, along with recommended actions to correct
the fault or warning condition, refer to "Troubleshooting" on page 31.
IMPORTANT: The SCP displays fault and warning messages for all
Xanbus-enabled devices in the system. For information about fault and
warnings for other devices, refer to the Troubleshooting chapter in the
Owner's Guide or Operation Guide for each device.
Warning Messages
Warning messages appear when the SCP detects a condition that may
eventually affect its continued operation. When a warning occurs, the SCP
continues operating. However, you should consult the Troubleshooting
chapter to find out what actions you can take to prevent the warning from
escalating into a fault.
Warning: W250
System Panel
The selected value
failed to change.
Try again.
continue cancel
Figure 11 SCP Warning Message
Xanbus System Control Panel (SCP) Owner's Guide
