Xanbus-Enabled Device Configuration Using the SCP
Reading Screens and Menus
The content of Xanbus System Control Panel (SCP) screens and menus
varies depending on power system activity or the device you have selected
to view information for.
Viewing the Xanbus System Control Panel (SCP) Home
Screens
The top level screens on the Xanbus System Control Panel (SCP) are the
Startup screen, the System Status screen, and the Select Device
Setup screens. After power is applied and the Startup screen appears, the
SCP displays the System Status screen. After pressing the Enter button,
the Select Device screen appears. The Device Setup screens can be
selected by pressing the up and down arrow buttons, choosing a device then
pressing Enter, as shown in Figure 8.
14
Power Up
Appears for a few
Startup Screen
seconds after the
system starts up or
when the system
has been reset.
Press Enter to
System Status
view Select
Battery 12.1V -257A
Device menu.
BatLev Invert
Load 120V
AC In 0V
menu EnInv EnChg
Select device
Select Device
from list and
System Settings
press Enter to
FSW3012 00
view the Device XAGS 00
XSCP
Setup screen.
Press Func twice
from a Device
Setup screen to
return to the
System Status
screen.

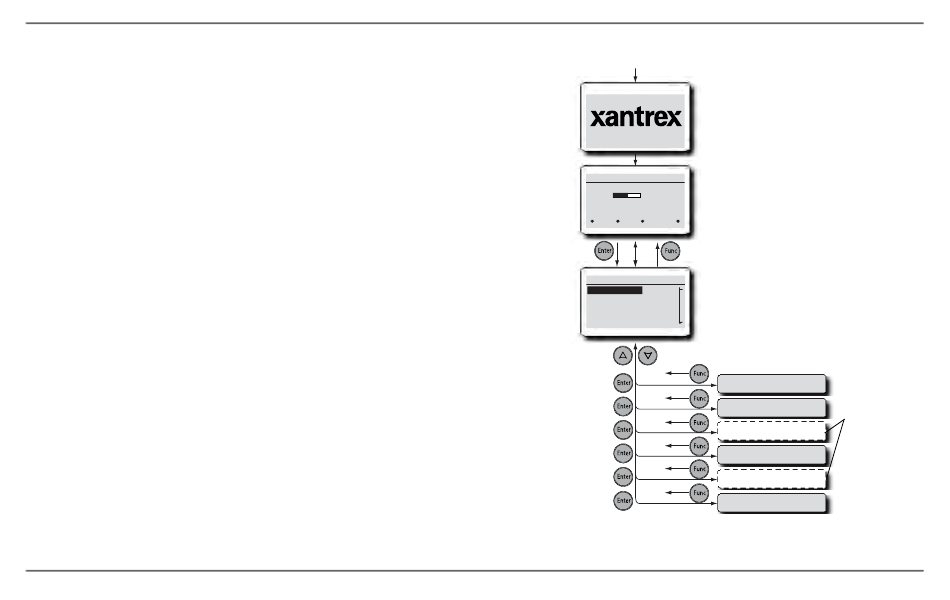

Figure 8 Xanbus System Control Panel (SCP) Home Screens
Xanbus System Control Panel (SCP) Owner's Guide
T M
84 " F
12A
0A
Shr
NOTE: The number of
Device Setup screens
depends on the number
of Xanbus-enabled
devices installed in the
system.
System Settings
FSW Inv/Chg Device Setup
AGS Device Setup
SCP Device Setup
FSPM Device Setup
Clock
These optional
devices appear
only when they
are connected
on the Xanbus
network.
