Chapter 3. Configuration
PNC001. Within the geniusgateway branch, two daughter devices are displayed by
default: the GCG (shown at slot 0 with its connected PNC) and the Gateway module itself
at slot 31. You may drag the gateway to slot 30, if desired.
Note that slot 0, normally used by the Genius HHM, is not really consumed by the GCG001.
The slot 0 indication for the GCG001 in the ME display should be ignored: it does not
impact the SBA assignments on the Genius Bus.
Note:
Example: GCG_inside and GCG_outside are acceptable Device Names.
8.
Add Genius I/O devices to the Genius Bus by right-clicking geniusgateway... and selecting
Change Module List.... (see Figure 15). If the application is a retrofit of an existing Genius
solution, be sure to set all I/O reference addresses to match those of the Genius
configuration being incorporated. To ease confusion, it is also recommended that the
Genius Devices be assigned the same serial bus addresses (Location column) as had
been assigned in the system under retrofit.
30 Public
PACSystems RX3i Genius Communications Gateway User Manual
geniusgateway... is the default PROFINET Device Name that Machine Edition
gives to a GCG001 in the Hardware Configuration under a PNC001. This
Device Name must match that given to the module itself using the
PROFINET/DCP (Discovery and Configuration Protocol) tool (see below). If
there are multiple GCG001s on a PROFINET bus, each of the modules' Device
Names must be unique. You can change it by selecting the device in the
Navigator, then typing in a new name in the Inspector.

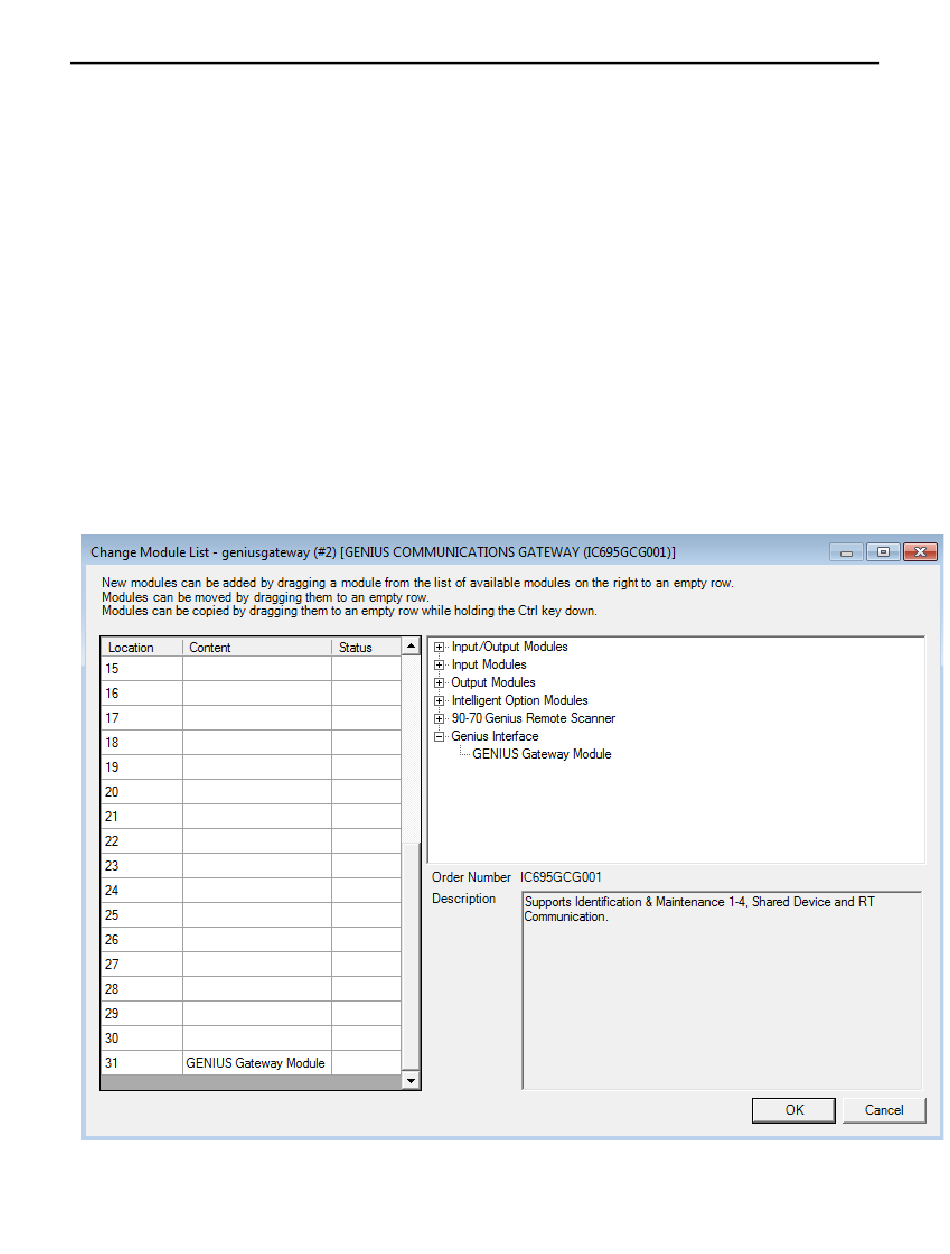

Figure 15: Change Module List for Genius Gateway GCG001
GFK-2892B
