Genius Status Data; Module Led Indicators; Figure 22: Genius Status Data - GE PACSystems RX3i Genius User Manual

Chapter 5. Diagnostics
Bit#
0
1
2
3
4-9
10
11
12-31

5.1.2 Genius Status Data

For the Genius Status Data, status bits are arranged in ascending order of the Genius Serial
Bus Addresses (SBAs), beginning at the first %I status reference assigned to this bank of 32.
Bit
Condition
OFF
ON

5.2 Module LED Indicators

Refer to Section 2.4.4 for a description of LED indications.
38 Public PACSystems RX3i Genius Communications Gateway User Manual
Bit
Name
Condition
OFF
Module OK
ON
OFF
Fault Present
ON
OFF
Port1 Link Up
ON
OFF
Port2 Link Up
ON
OFF
Reserved
ON
OFF
MRP Enabled
ON
OFF
MRP Role
ON
OFF
Reserved
ON

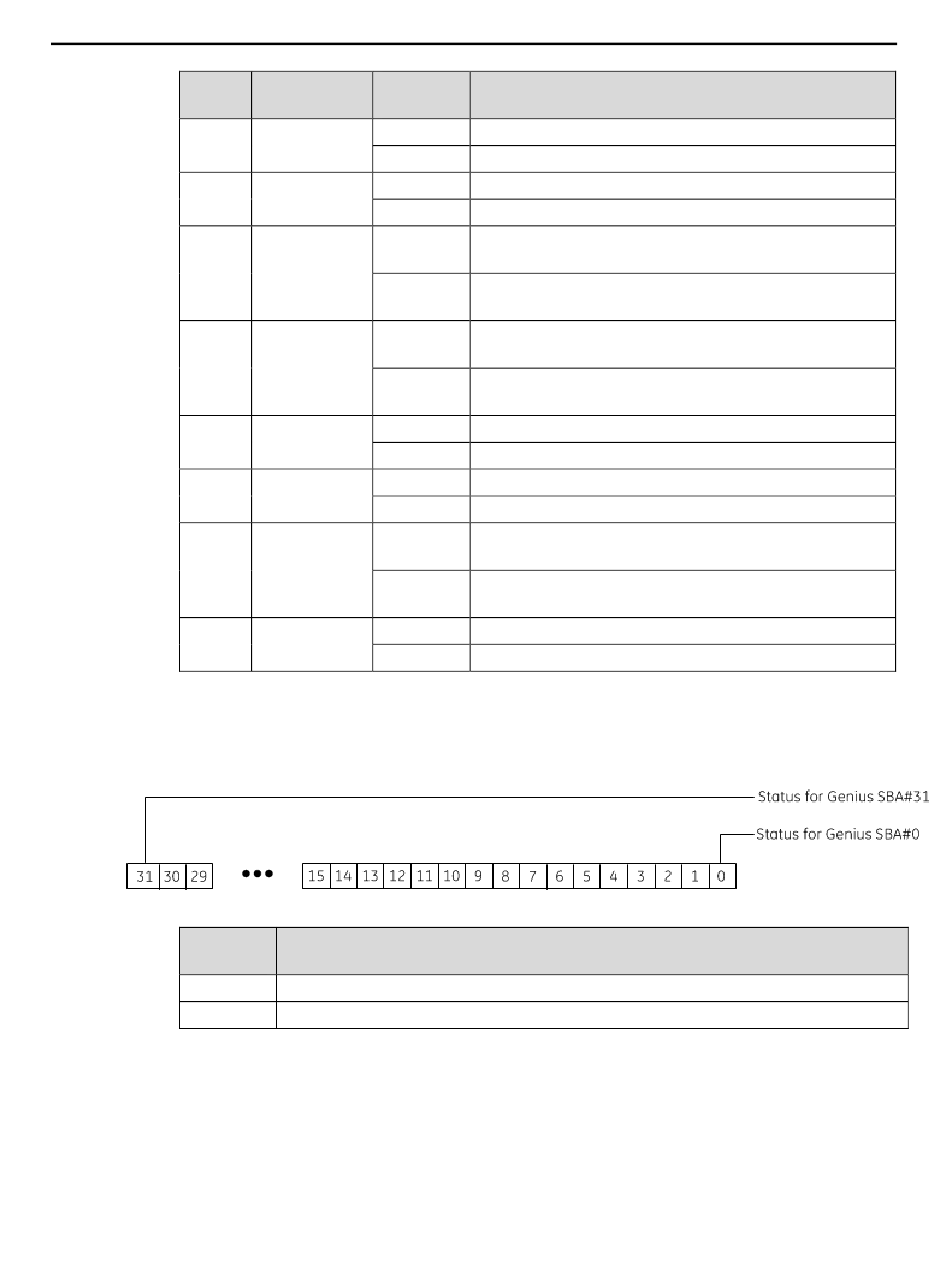

Figure 22: Genius Status Data

Meaning of Status Bit
No device present at SBA, or device not configured, or device not communicating.
Device present, configured and communicating at corresponding SBA.
Meaning of Status Bit
The GCG001 module is powering up or has failed.
Indicates the GCG001 module is functioning properly.
No GCG001 diagnosis data available; FAULT LED is Off.
GCG001 diagnosis data is available; FAULT LED is On.
Port is not connected to a properly configured device,
or port is experiencing communications errors.
Port is connected to another device and is
communicating.
Port is not connected to a properly configured device,
or port is experiencing communications errors.
Port is connected to another device and is
communicating.
Always off
N/A
MRP is not enabled
MRP is enabled
Indicates that the GCG001 is an MRP Client (if MRP is
enabled), or that MRP is not enabled.
Indicates role is that of an MRP Manager – this is not a
possible role for the GCG001.
Always off
N/A
