1.4.1 Mounting

The GCG001 may either be panel-mounted or mounted in the rightmost slot (expansion slot)
of an RX3i rack (IC695CHS012, IC695CHS016).
Note:
section 2.4.1 for instructions for installing the SD Card when doing a retrofit. The presence of
the SD Card should be checked before mounting the module.
Note:
proper ventilation and to permit cable access.
Note:
mounting arrangement is chosen. When rack-mounted, the GCG001 does not draw power
from the RX3i Universal Backplane.
RX3i Backplane Mounting
The GCG001 may be mounted in the
rightmost slot (expansion slot) of an RX3i
Universal Backplane.
The two captive M3.5 screws at the rear
of the GCG001 align with mating tapped
holes on the right side of the backplane,
providing a convenient mounting
location. When rack-mounted, the
module does not make contact with the
backplane connector.
Panel-Mounting
Panel-mounting allows for mounting
where no RX3i backplane slot is
available. The two captive M3.5 machine
screws on the GCG001 can be used for
attaching the unit to a panel.
Note:
minimum thickness of 2.4mm (0.094in).
1. Drill two mounting holes using the
spacing shown in the drawing (at
right) and tap for M3.5 (3.5 x 0.6mm).
2. Align the two mounting screws of the
module with the mounting holes in
the panel.
3. Using a Philips screwdriver, tighten
the two screws to a maximum torque
of 0.5 Nm (4.4 in-lbs).
GFK-2892B
The SD Card supplied with the GCG001 will have been installed at the factory. See
Clearance of 3 inches (75mm) must be provided above and below the module for
External power must always be supplied to the module, regardless of which
The panel must have a
PACSystems RX3i Genius Communications Gateway User Manual
Chapter 1. Introduction

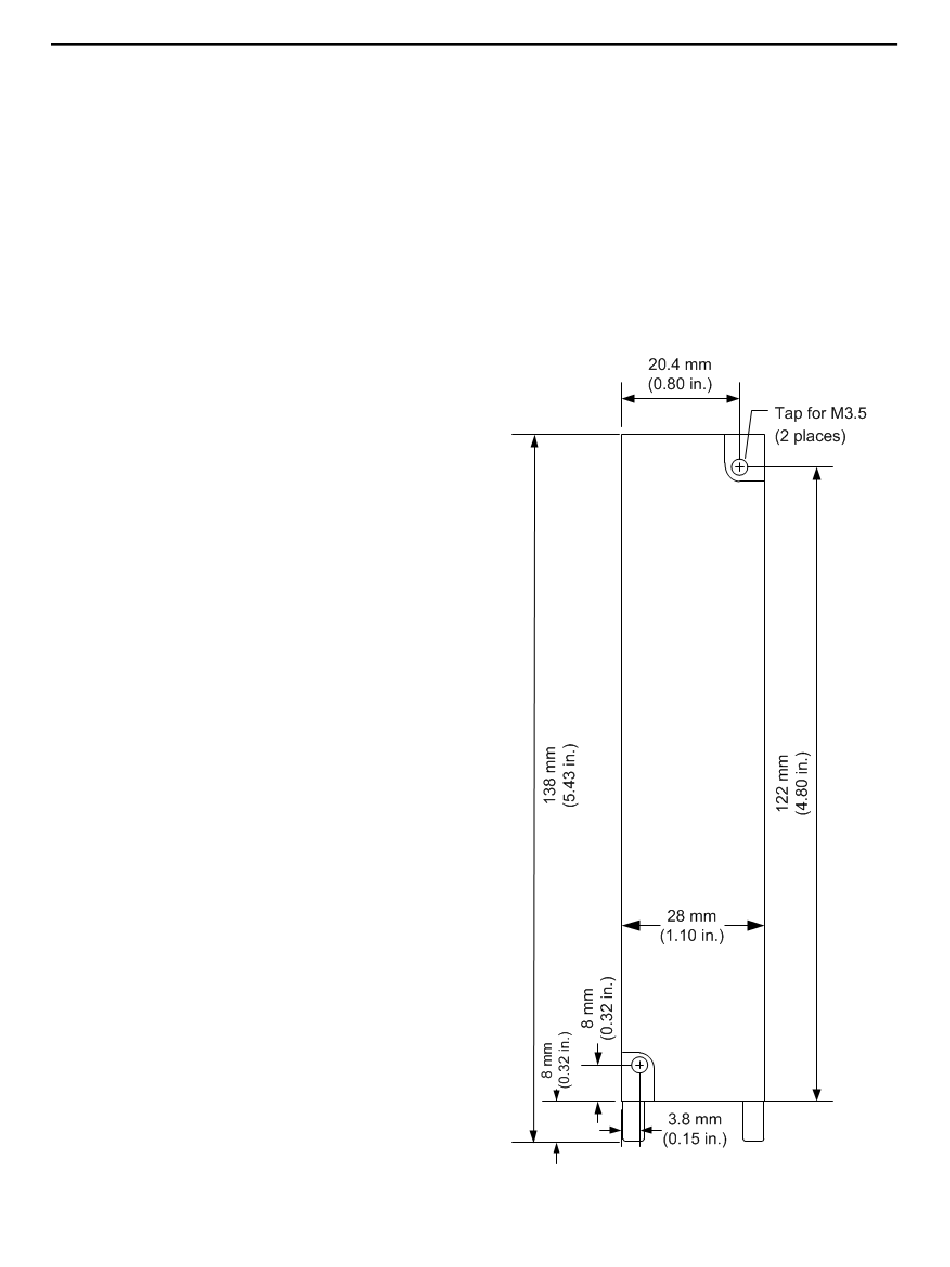

Figure 4: GCG001 Panel Mount Diagram
