Chapter 6. COMMREQ/Data_Init_Comm Programming

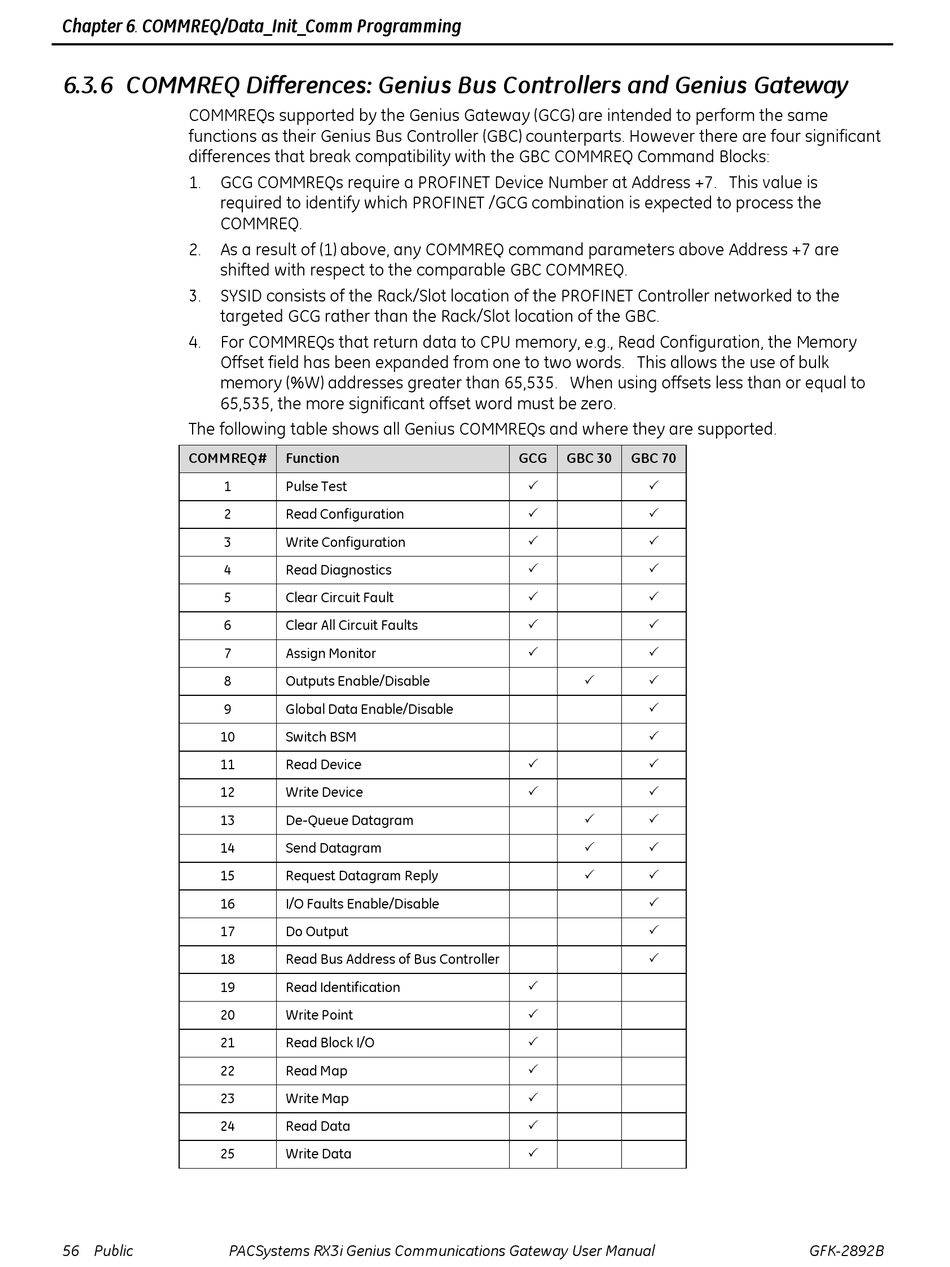

6.3.6 COMMREQ Differences: Genius Bus Controllers and Genius Gateway
COMMREQs supported by the Genius Gateway (GCG) are intended to perform the same
functions as their Genius Bus Controller (GBC) counterparts. However there are four significant
differences that break compatibility with the GBC COMMREQ Command Blocks:
1.
GCG COMMREQs require a PROFINET Device Number at Address +7. This value is
required to identify which PROFINET /GCG combination is expected to process the
COMMREQ.
2.
As a result of (1) above, any COMMREQ command parameters above Address +7 are
shifted with respect to the comparable GBC COMMREQ.
3.
SYSID consists of the Rack/Slot location of the PROFINET Controller networked to the
targeted GCG rather than the Rack/Slot location of the GBC.
4.
For COMMREQs that return data to CPU memory, e.g., Read Configuration, the Memory
Offset field has been expanded from one to two words. This allows the use of bulk
memory (%W) addresses greater than 65,535. When using offsets less than or equal to
65,535, the more significant offset word must be zero.
The following table shows all Genius COMMREQs and where they are supported.
COMMREQ#
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
56 Public
PACSystems RX3i Genius Communications Gateway User Manual
Function
Pulse Test
Read Configuration
Write Configuration
Read Diagnostics
Clear Circuit Fault
Clear All Circuit Faults
Assign Monitor
Outputs Enable/Disable
Global Data Enable/Disable
Switch BSM
Read Device
Write Device
De-Queue Datagram
Send Datagram
Request Datagram Reply
I/O Faults Enable/Disable
Do Output
Read Bus Address of Bus Controller
Read Identification
Write Point
Read Block I/O
Read Map
Write Map
Read Data
Write Data
GCG
GBC 30
GBC 70
GFK-2892B
