FPC 6000 • Setup Guide (Continued)
For complete instructions about creating and breaking ties, or saving and recalling presets, see the FPC 6000 User Guide.
Create Ties
NOTE:
One input can be tied to multiple outputs but each output can be tied to only one input.
Press an input button to select it. The color of the button changes to blue. If the input is already tied to one or more outputs,
1.
those output buttons change color to orange.
Press one or more previously untied output buttons to select them. The selected button changes color and an orange plus sign
2.
appears in the bottom right corner of the button. The Take button becomes activated.
Press Take . The tie is saved.
3.
Break Ties
Press an input button to select it. The color of the button changes to blue and any outputs already tied to that input change to
1.
orange.
Press one or more of the previously tied output buttons to select them. An orange minus sign appears in the bottom right corner
2.
of the button. The Take button becomes activated.
Press Take . The tie is broken.
3.
Select All
Press an input button to select it. The color of the button changes to blue and any outputs already tied to that input change to
1.
orange.
Press Select All . All the output buttons are selected. The Take button becomes active and a new, Break button is also
2.
available.
Press Take to tie the selected input to all outputs.
3.
Or press Break to break all existing ties to the selected input.
Save Presets (Global Presets only)
NOTE:
To save rooms or room presets, you must use Simple Instruction Set™ commands (see the user guide for your matrix
switcher). The FPC 6000 can save global presets and recall global and room presets.
Press Presets to open the presets menu.
1.
Press Save As... . A drop-down menu shows all the previously saved and unassigned presets.
2.
Select a preset. You can overwrite an existing preset or select [unassigned] and create a new preset.
3.
If you select an unassigned preset, an on-screen keyboard opens. Enter a name for the preset.
4.
Press Submit on the keyboard (for a new preset) or press Save Preset to overwrite an existing preset.
5.
Recall Presets
When you recall a preset, it overwrites the current configuration for the matrix switcher.
Press Presets to open the presets menu.
1.
Press Recall from... .
2.
Select either Global or Room from the Preset Type .
3.
If you select Global , a list of global presets appears. Select a preset and press Recall Preset .
4.
If you select Room , a list of rooms appears. Select a room. A list of presets for that room appears. Select a preset and press
5.
Recall Preset .
Status
Press the Status menu button.
The Status screen is read-only and provides information
about the status of the matrix switcher.
6

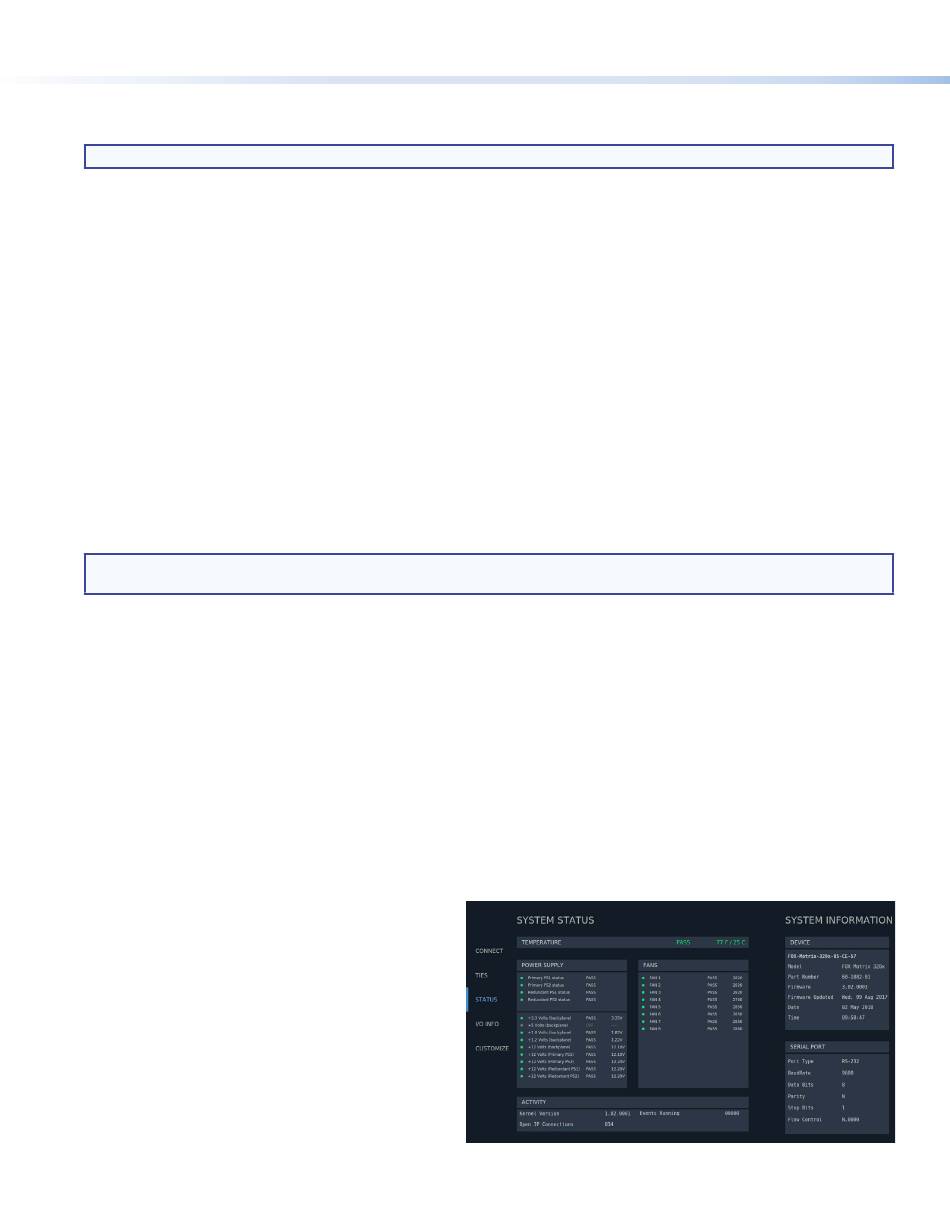

FPC 6000 Status Screen
Figure 10.
