EE820-FAC - Forced Air Circulation Module (Replacement/Retrofit)
CAutioN
The EE820-FAC Forced Air Circulation Module is an ESD sensitive device and shall be handled at all times according to the general
precautions for handling of ESD sensitive equipment .
sCoPE oF suPPLY
EE820 Cover is not included in the scope of supply and shall be ordered separately, type number:

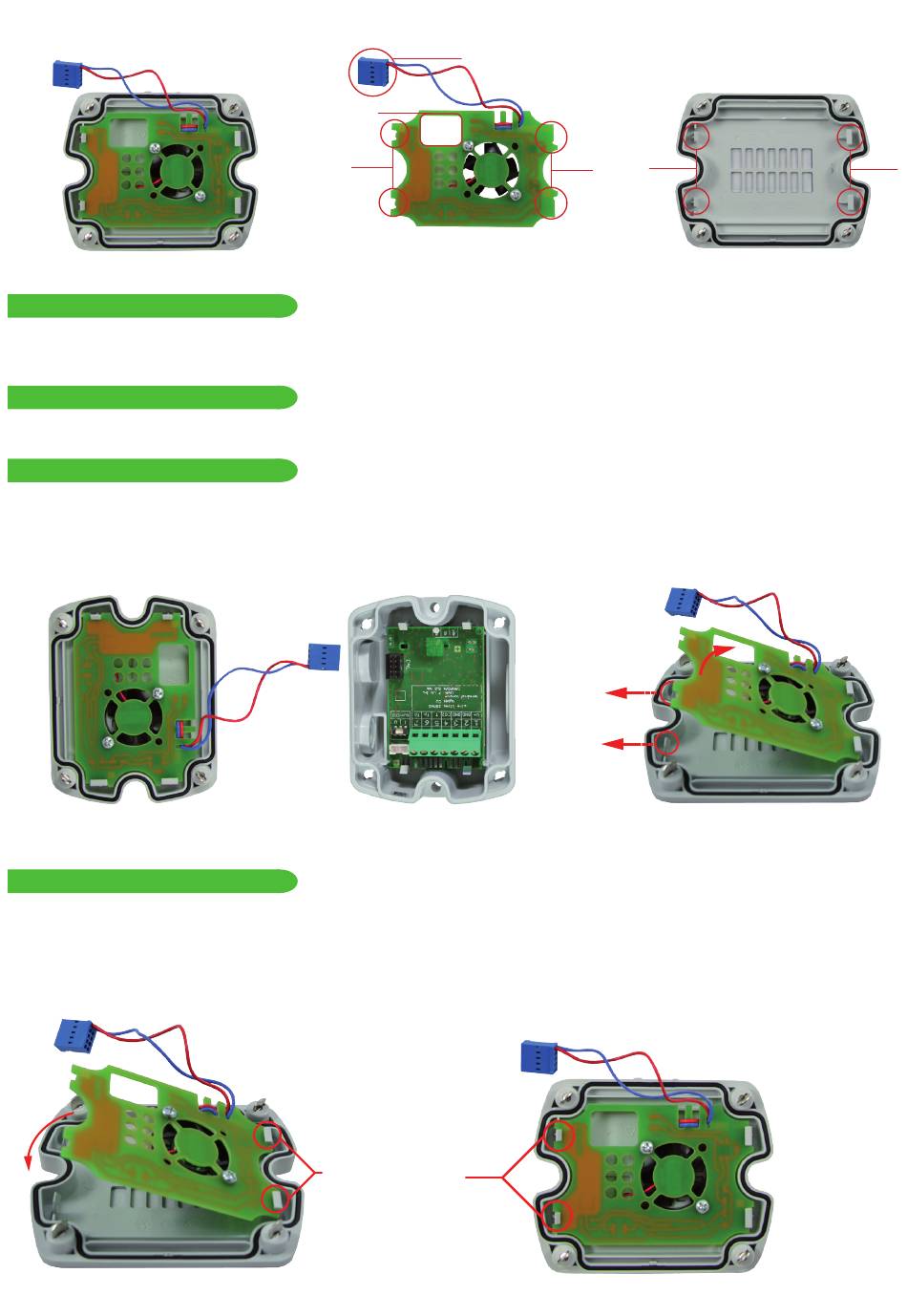

REPLACiNG
FOR REplACInG an existing EE820-FAC modul remove first the old EE820-FAC module:
•
Disconnect the blue connector from the main EE820 board
1)
iNstALLiNG
•
Release the old EE820-FAC by acting on restraint A.
For installing the new EE820-FAC:
•
Observe the position of the A and B restraints in the cover and of the corresponding cut-outs 1 and 2 in the EE820-FAC board.
•
Insert first the EE820-FAC into the B restraints. Than press the EE820-FAC as in the picture below, till in snaps into the A restraints.
2.
Blue connector
cut-out 3
cut-out 1
1.
"CLICK"
restraint A
cut-out 2
EE820-COVER
2)
1.
restraint B
2.
