Table of Contents

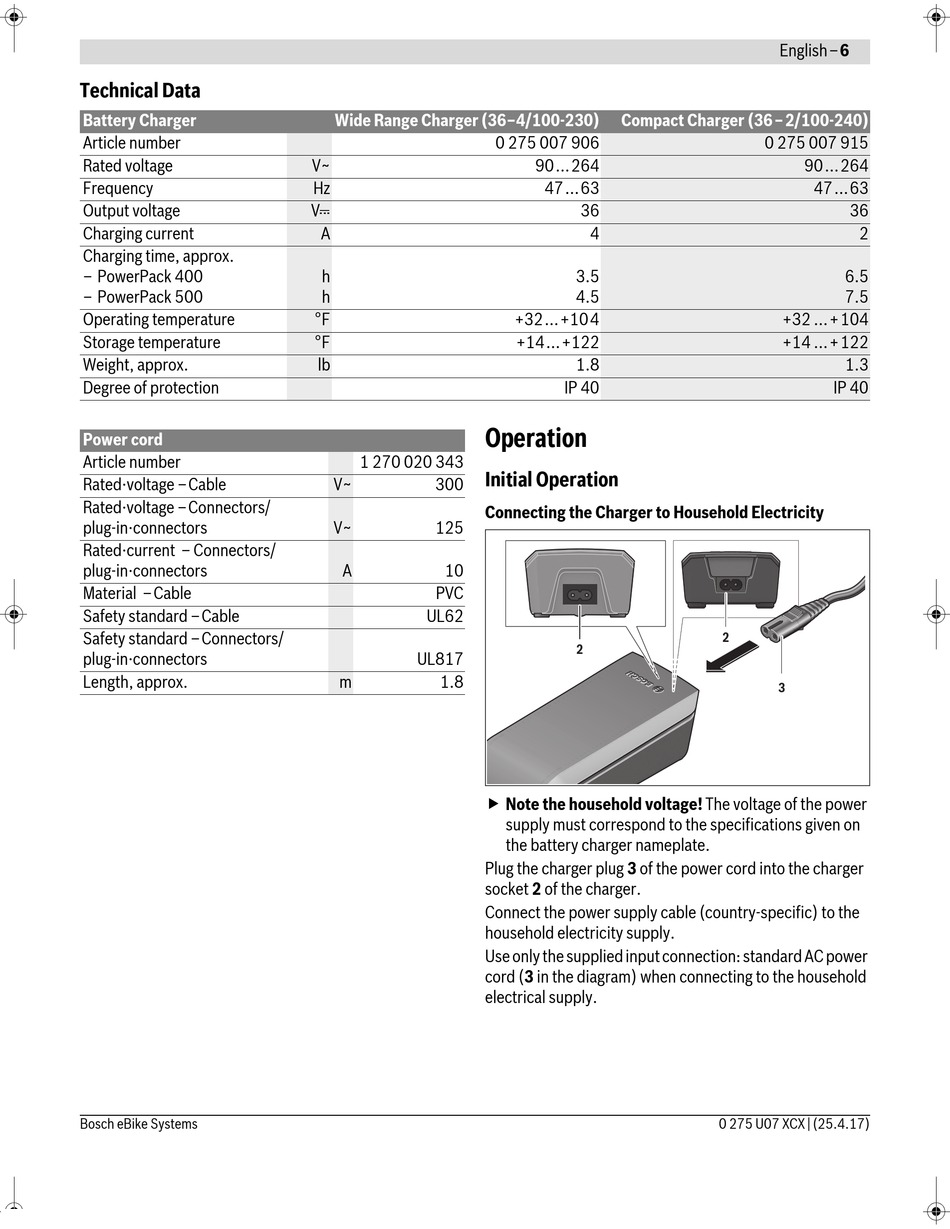

Technical Data
Battery Charger
Article number
Rated voltage
Frequency
Output voltage
Charging current
Charging time, approx.
– PowerPack 400
– PowerPack 500
Operating temperature
Storage temperature
Weight, approx.
Degree of protection
Power cord
Article number
Rated·voltage –Cable
Rated·voltage –Connectors/
plug-in·connectors
Rated·current – Connectors/
plug-in·connectors
Material –Cable
Safety standard –Cable
Safety standard –Connectors/
plug-in·connectors
Length, approx.
Bosch eBike Systems
Wide Range Charger (36–4/100-230)
V~
Hz
V
A
h
h
°F
°F
lb
1 270 020 343
V~
300
V~
125
A
10
PVC
UL62
UL817
m
1.8
Compact Charger (36–2/100-240)
0 275 007 906
90...264
47...63
36
4
3.5
4.5
+32...+104
+14...+122
1.8
IP 40

Operation

Initial Operation
Connecting the Charger to Household Electricity
2
 Note the household voltage! The voltage of the power
supply must correspond to the specifications given on
the battery charger nameplate.
Plug the charger plug 3 of the power cord into the charger
socket 2 of the charger.
Connect the power supply cable (country-specific) to the
household electricity supply.
Use only the supplied input connection: standard AC power
cord (3 in the diagram) when connecting to the household
electrical supply.
English–6
0 275 007 915
90...264
47...63
36
2
6.5
7.5
+32 ...+104
+14 ...+122
1.3
IP 40
2
3
0 275 U07 XCX | (25.4.17)
