PNP Receiver Selection and Installation

The Convergence aircraft uses the Spektrum
(SPM4648), included in the BNF-Basic aircraft,

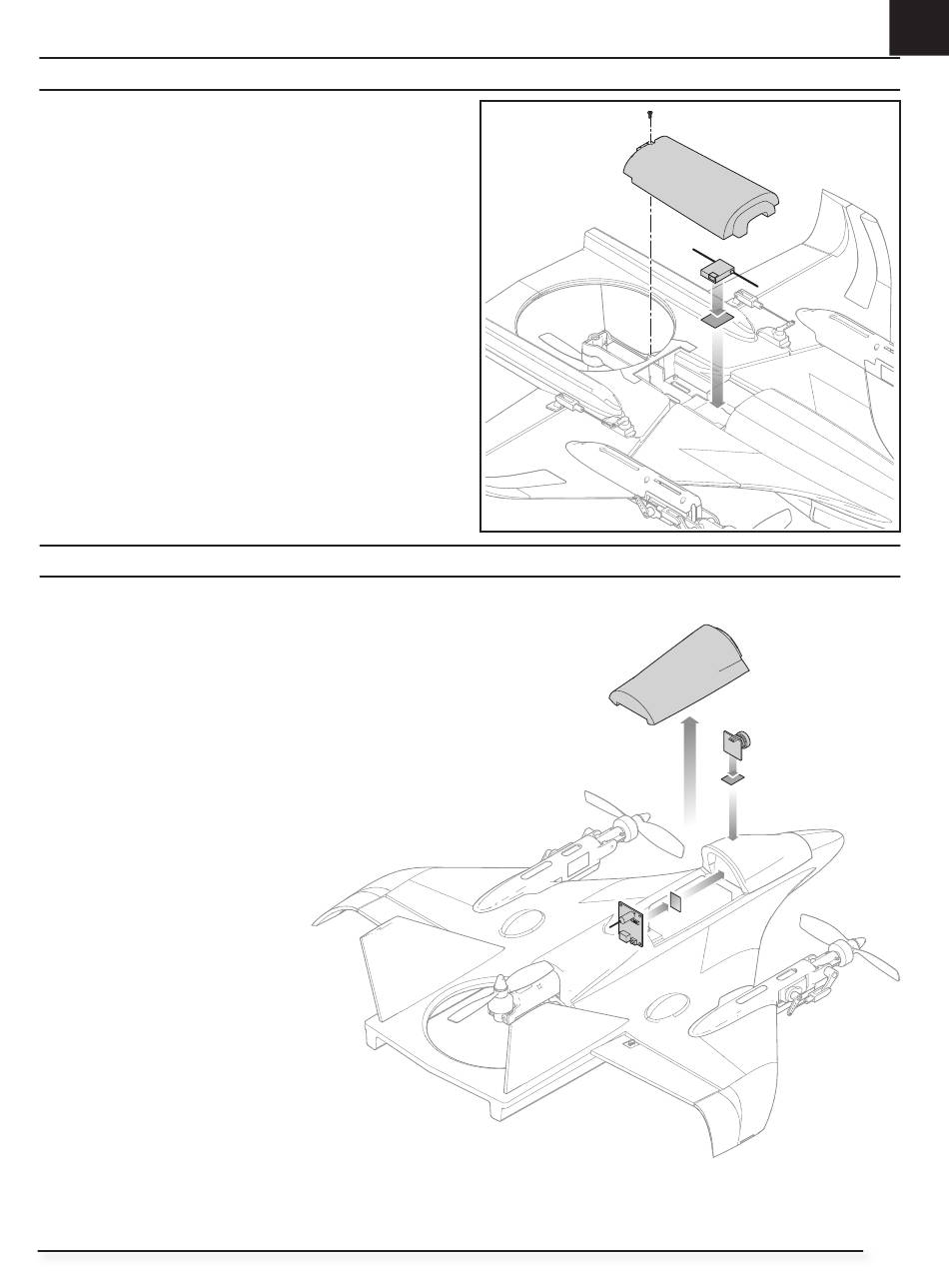

Installation of a DSMX serial receiver
1. Remove the bottom cover from the fuselage.
2. Mount the receiver to the fuselage as shown using double-sided servo tape
or hook and loop material.
3. Attach the serial receiver lead to the receiver and to the fl ight control board.
4. Replace the bottom fuselage cover.

FPV System Installation (Optional)

Items required for FPV installation:
• Camera, 600TVL CMOS FPV Camera (SPMVCM01)
• Video transmitter with the power output appropriate for your region
SPMVTM150 for North America (Amateur radio licence required}
SPMVTM025
• 5.8GHz FPV headset or monitor (SPMVR2520, SPMVM430C)
Installation of optional FPV camera:
1. Connect the FPV power cable from the aircraft to the video transmitter
2. Mount the video transmitter with double sided tape at the front of the
battery area.
3. Mount the camera with double sided tape to the canopy area.
™ DSMX ® serial receiver
