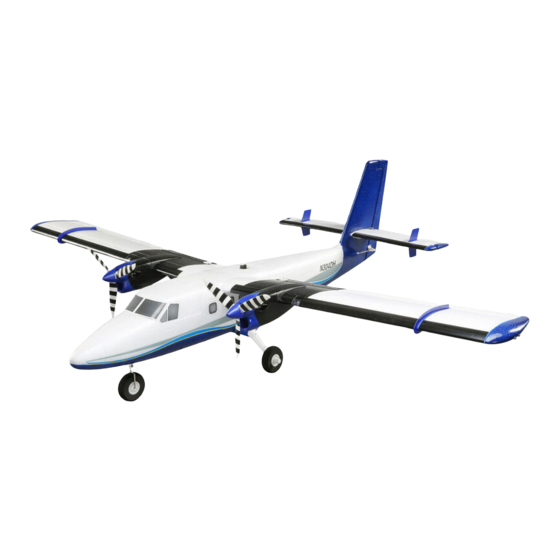

Twin Otter Weight: 37~39.5 oz (1049~1118g)
Model Assembly
Landing Gear Installation
1. Remove the screw (2mm x 15mm) on the bottom of the fuselage and remove the landing gear cover.
2. Install the six mounting screws (2mm x 10mm) and three landing gear mounting clamps as shown.
3. Reinstall the landing gear cover and tighten the fuselage screw (2mm x 15mm).
4. Install the nose wheel, aligning the flat area on the nose gear with the set screw in the nose gear bracket.
TIP: The steering arm for the water rudder can be removed when flying with wheeled landing gear if desired.
5. Tighten the set screw.
TIP: Apply a drop of CA to the landing gear strut covers and nose gear set screw, if desired.
Horizontal Tail Installation
1. Slide the horizontal stabilizer into place within the vertical fin, inserting it with the
elevator control horn on the bottom of the stabilizer and the right side of the fuselage.
2. Install two screws (2mm x 10mm) on each side of the horizontal tail, as shown.
3. Flex the foam hinge line on the elevator up and down several times to loosen it
for proper movement.
4. Snap the elevator clevis (right) into place, then snap the rudder clevis into place.
5. Slide the horizontal stabilizing fins into place.
TIP: You may apply a drop of CA to secure the horizontal stabilizing fins, if desired.
Wing Installation
1. Connect the ESC, ailerons, LED lights, and flaps to the receiver in the following locations:
1–ESC
2–Aileron
3–Elevator
2. Install the wing, then secure it by tightening the thumb screw as shown.
3. Slide each wing strut into the fuselage slot.
4. Snap each wing strut into place at rear of motor nacelle.
Twin Otter 1.2m BNF Basic/PNP
Manual Addendum / Ergänzung Bedienungsaneitung / Addendum au manuel / Addendum Manuale
4–Rudder
5–LED Lights
6–Flaps
1
3
4
2
5
AR636 Port Assignments
BND/PRG = BIND
1 = ESC
2 = Aileron
3 = Elevator
4 = Rudder
5 = LED Lights
6 = Flaps
3
2
4
5
1
5
4
1
