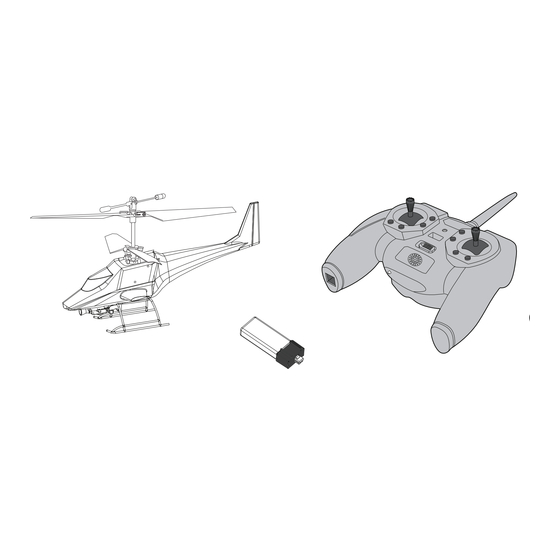

Mh-35 or fhx force helicopter and transmitter

Advertisement

Instruction Manual | Bedienungsanleitung | Manuel d'utilisation | Manuale di istruzioni
MH-35 or FHX FORCE helicopter and transmitter
MH 35 oder FHX FORCE Hubschrauber und Sender
Hélicoptère MH-35 ou FHX FORCE et émetteur
Elicottero e trasmittente MH-35 o FHX FORCE
Note: Attempting to fly the helicopter without completely reading the manual may cause injury to yourself and people in
the vicinity, as well as damage to the helicopter.
Hinweis: Der Versuch, den Helikopter zu fliegen, ohne das Handbuch vollständig zu lesen, kann Verletzungen an Ihnen
selbst und Menschen in der Nähe, wie auch Schäden am Helikopter verursachen.
A noter: tenter de faire voler l'hélicoptère sans avoir lu l'intégralité du manuel peut provoquer des blessures (à vous-
même et aux personnes alentour) ainsi que des dégâts à l'hélicoptère.
Nota: Un tentativo di far volare l'elicottero senza aver letto completamente il manuale può avere come risultato una
lesione del manovratore e delle persone circostanti, nonchè danni all'elicottero stesso.
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FORCE MH-35 and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby FORCE MH-35

  • Page 1 Instruction Manual | Bedienungsanleitung | Manuel d’utilisation | Manuale di istruzioni MH-35 or FHX FORCE helicopter and transmitter MH 35 oder FHX FORCE Hubschrauber und Sender Hélicoptère MH-35 ou FHX FORCE et émetteur Elicottero e trasmittente MH-35 o FHX FORCE Note: Attempting to fly the helicopter without completely reading the manual may cause injury to yourself and people in the vicinity, as well as damage to the helicopter.
  • Page 2: Meaning Of Special Language

    Do not attempt disassembly, use with incompatible components or augment product in any way without the approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
  • Page 3: Table Of Contents

    Table of Contents Product Registration ......3 VDAS ........7 Box Contents .
  • Page 4: Battery Warnings And Guidelines

    Battery Warnings and Guidelines Always use a Never leave Always charge charger compatible charging Batteries Batteries away from with batteries. flammable materials. unattended. 120F/49C Always remove Always remove Never Alter Never touch or Never charge batteries batteries before damaged Batteries. use hot Batteries.
  • Page 5: Flying Your Force Helicopter

    Flying your FORCE helicopter If you are not accustomed to the controls of your FORCE heli, familiarize yourself with them before attempting your first flight. To learn more about advanced flying techniques, visit www.force-rc.com. Transmitter Mode Legend MODE 2 MODE 1 Climb Descend Nose Turns Right...
  • Page 6: Transmitter Control Identification

    Transmitter Control Identification Mode 2/Mode 1 Mode Switch Rudder/Throttle Aileron/Elevator Fire Buttons Rudder/Elevator Aileron/Throttle Rear of Transmitter Note: When pressed down, trim but- tons make a sound that increases or decreases in pitch at each pressing. Rudder Trim Aileron Trim The middle or neutral trim position uses ON/OFF Rudder Trim...
  • Page 7: Restore Transmitter To Factory Settings

    Restore Transmitter to Factory Settings Press and hold down two trim buttons (see illustration) Release buttons Hold down 2 trim buttons. while pushing power switch to ON. Hold trim buttons when tone sounds. Push Power Switch to ON. 8 seconds. Release trim buttons when tone sounds, indicating transmitter has been restored to factory settings.
  • Page 8: Force Operations Setup Mode

    FORCE Operations Setup Mode Your helicopter is ready for battle when you open the box. Factory settings are standard flight (not SimpliFly), Green team (rogue or free-for-all), and long range (20 feet (6m)). Only when you want to change these battle settings is FORCE Operations Setup Mode required.
  • Page 9: Advanced Swashplate Settings

    Advanced Swashplate Settings More information is available at www.force-rc. com for advanced settings and adjustments for Short Swashplate Control Balls EFLH2427 EFLH2219B your FORCE helicopter and transmitter. Anti-rotation The FORCE helicopter comes with an adjustable swashplate for advanced pilots. Move lower rotor head links from the shorter to the longer set of inner swashplate control balls (see illustration).
  • Page 10: Troubleshooting Guide

    Troubleshooting Guide Some issues may be not addressed in this short guide. Please refer to more FORCE information at www.force-rc.com. Problem Possible Cause Possible Solution Gun does not seem to fire • Damage to IR Combat Unit • Replace IR IR Combat Unit Helicopter does not respond to fire • Battle conditions interfere • Do a check of IR Combat Unit range from opponent settings, decrease lighting in room,...
  • Page 11: Warranty And Repair Policy

    WARRANTY SERVICES Questions, Assistance, and Repairs: Your local hobby store and/or place of purchase cannot provide war- Warranty Period: Exclusive Warranty- Horizon Hobby, ranty support or repair. Once assembly, setup or use of Inc., (Horizon) warranties that the Products purchased the Product has been started, you must contact Horizon (the “Product”) will be free from defects in materials and...
  • Page 12: Fcc Statement

    Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH20100806 Product(s): FORCE MH-35 Heli RTF, FORCE MH-35 Heli RTF Mode 1, FORCE FHX Heli RTF, FORCE FHX Heli RTF Mode 1 Item Number(s): FCE2000, FCE2000M1, FCE2100, FCE2100M1...
  • Page 13 ©2010 FORCE® is an exclusive brand of Horizon Hobby, Inc. All marks are trademarks or registered trademarks of Horizon Hobby, Inc. US 7,391,320. US D578,146. PRC ZL 200720069025.2. Other patents pending. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
