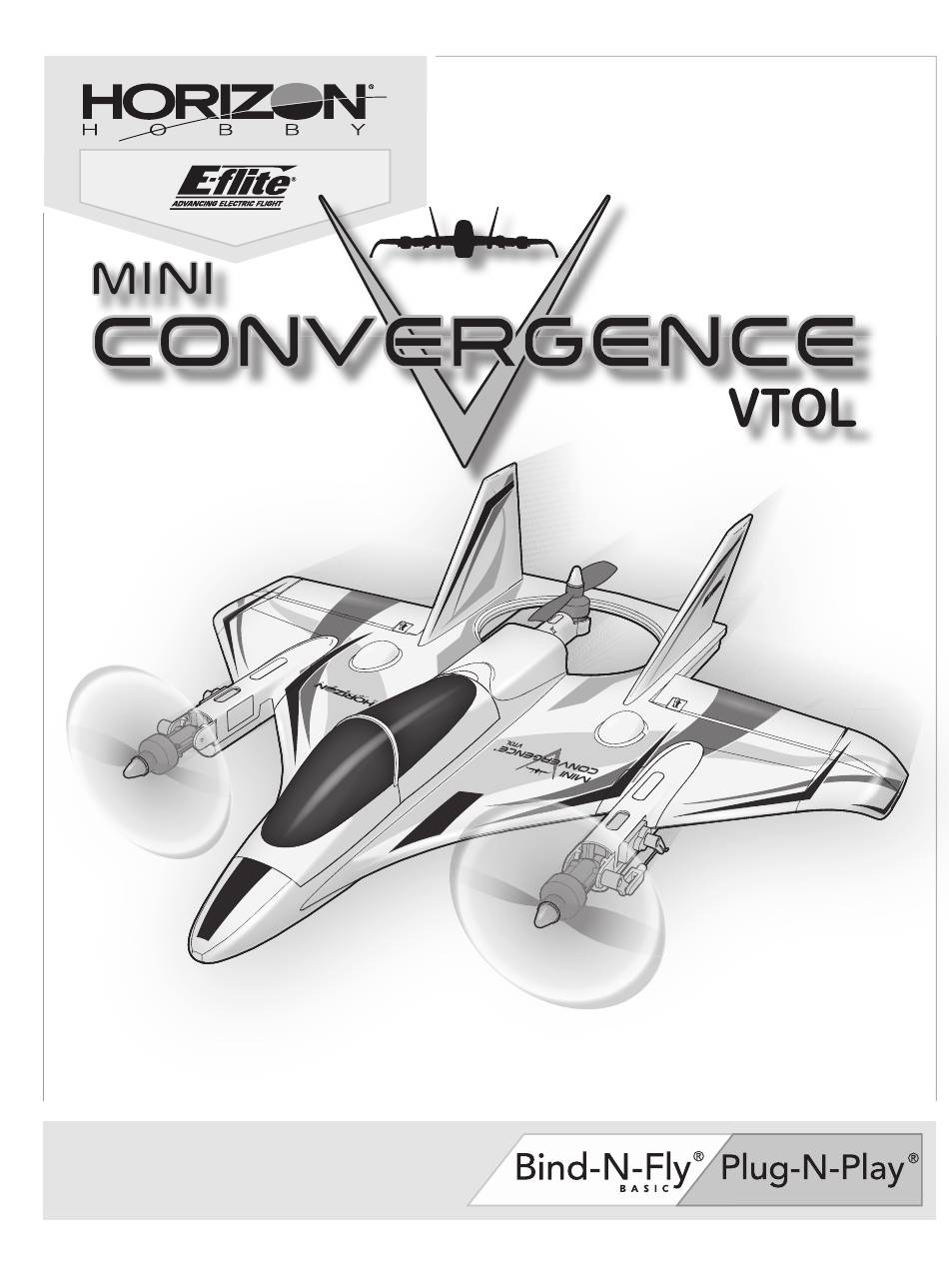

- Page 1 ® Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi...
-
Page 3: Table Of Contents
Box Contents Quick Start Information Transmitter Set up your transmitter using the Setup transmitter setup table 200-210mm from the nose of the airplane as shown in the Center of Gravity section Center of Gravity (CG) (CG must be set with the motor nacelles in the multirotor fl... -
Page 4: Prefl Ight
Prefl ight 1. Remove and inspect contents. 9. Make sure linkages move freely. 2. Read this instruction manual thoroughly. 10. Perform the Control Direction Test with the transmitter. 3. Charge the fl ight battery. 11. Perform the stability system control direction test with the aircraft. 4. -
Page 5: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection ® We recommend the E-fl ite 800mAh 11.1V 3S 30C Li-Po battery (EFLB8003S30). Refer to the Optional Parts list for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-fl... -
Page 6: Flight Conditions
Flight Conditions Stability and Acro Flight Modes are available in both Airplane Flight Mode and Motor Nacelle Positions Multirotor Flight Mode. The basic function of each mode is the same regardless of what realm of fl ight is active. Stability Mode Stability Mode limits the bank and pitch angle of the aircraft. -
Page 7: Control Horn And Servo Arm Settings
Linkage Settings and Flight Trimming The table to the right shows the factory settings for the control horns and Control Horns Servo Arms servo arms. Fly the aircraft at factory settings before making any changes to the elevon linkages. Elevons Trim 1. - Page 8 Multirotor Flight Mode Aileron Rear view Rear view Right Left Aileron right Aileron left Rudder Top view Top view Yaw left Yaw right Rudder right Rudder left Airplane Flight Mode Throttle Left side view Left side view Faster Slower Throttle up Throttle down Elevator Left side view...
-
Page 9: Flying Your Aircraft
Flying Your Aircraft Consult local laws and ordinances before choosing a fl ying location. Airplane Flight Range Check your Radio System Fly the aircraft and trim it for level fl ight per the Trimming Your Aircraft section. Before you fl y, range check the radio system. Refer to your specifi c transmitter instruction manual for range test information. -
Page 10: In Flight Trimming
Post Flight 1. Disconnect the fl ight battery from the fl ight controller 5. Repair or replace all damaged parts. (Required for Safety and battery life). 6. Store the fl ight battery apart from the aircraft and monitor the battery charge. 2. -
Page 11: Pnp Receiver Selection And Installation
PNP Receiver Selection and Installation The Convergence aircraft uses the Spektrum ™ DSMX ® serial receiver (SPM4648), included in the BNF-Basic aircraft, Installation of a DSMX serial receiver 1. Remove the bottom cover from the fuselage. 2. Mount the receiver to the fuselage as shown using double-sided servo tape or hook and loop material. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater respond to throttle but responds to other Throttle channel is reversed... -
Page 13: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight 1. All pilots shall avoid fl ying directly over unprotected people, vessels, in the atmosphere. It may not exceed limitations of this code and is intended vehicles or structures and shall avoid endangerment of life and property of exclusively for sport, recreation, education and/or competition. -
Page 14: Limited Warranty
Product, (iv) attempted service by and is accepted at our facility. An Online Service Request is available at http:// anyone other than a Horizon Hobby authorized service center, (v) Product not www.horizonhobby.com/content/_service-center_render-service-center. If you... -
Page 15: Contact Information
Compliance Information for the European Union Mini Convergence BNF Basic (EFL9350) Mini Convergence PNP (EFL9375) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this EU Compliance Statement: Horizon Hobby, LLC hereby declares product is in compliance with the essential requirements and other relevant that this product is in compliance with the essential requirements provisions of the EMC Directive. -
Page 16: Exploded View
Exploded View / Explosionszeichnung / Vue Éclatée / Vista Esplosa ®... -
Page 17: Replacement Parts
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Part # / Nummer Numéro / Codice Description Beschreibung Description Descrizione Cellule de remplacement: Mini Telaio di ricambio: Mini 1 EFL9301 Replacement Airframe: Mini Convergence Ersatzfl ugzeug: Mini Convergence Convergence Convergence Queue ensemble: Mini... - Page 18 E-fl ite, Convergence, AS3X, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, ModelMatch, Dynamite, EC3, Prophet , Focal and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
