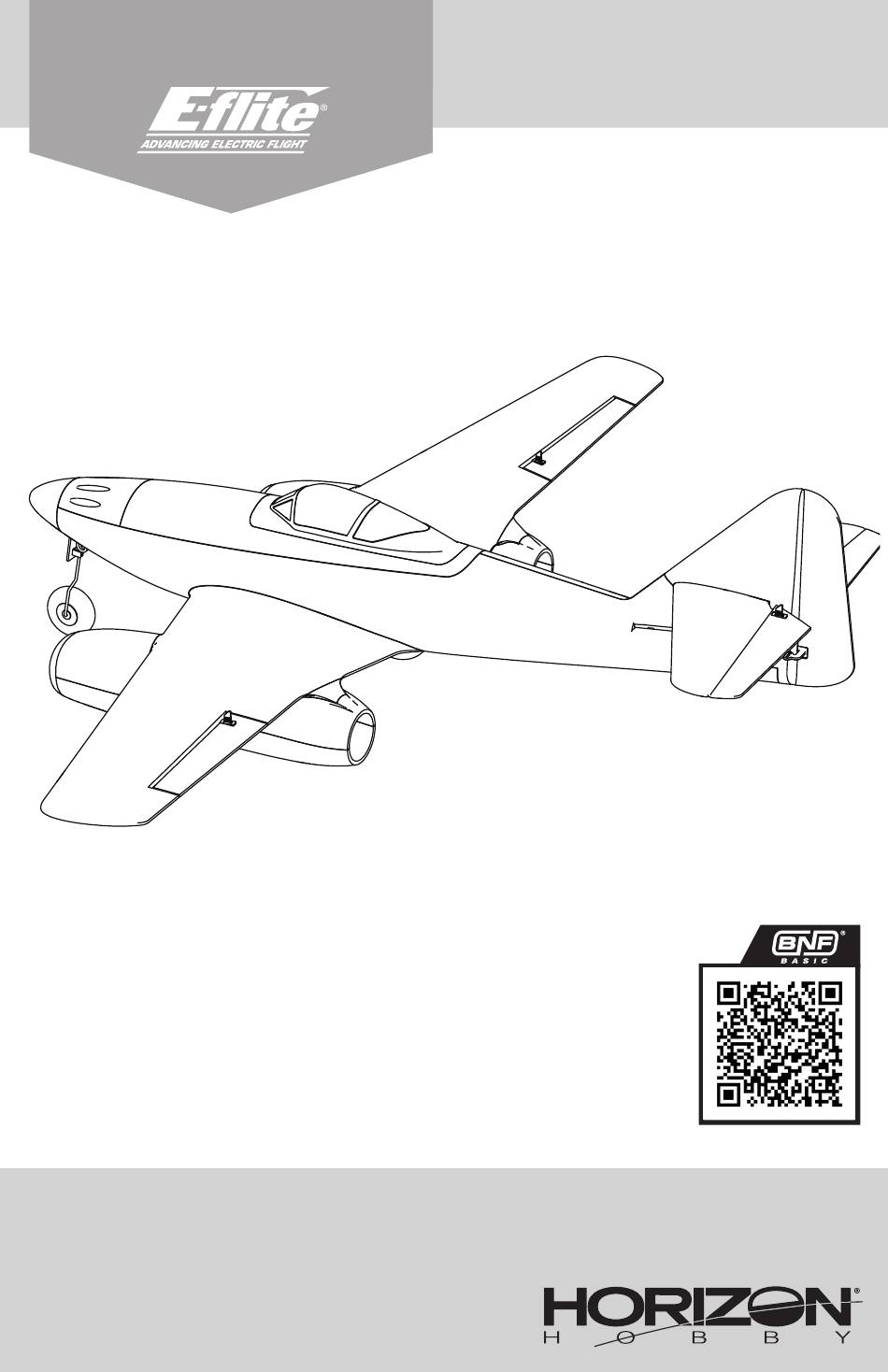

UMX Me 262
Scan the QR code and select the Manuals and Support quick links
from the product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
EFLU31050
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
858503
Created 04/23
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Horizon Hobby UMX Me 262
Summary of Contents for Horizon Hobby UMX Me 262
- Page 1 UMX Me 262 Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
- Page 2 WARNING AGAINST COUNTERFEIT PRODUCTS: If you ever need to replace your Spektrum receiver found in a Horizon Hobby product, always purchase from Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology.
-
Page 3: Table Of Contents
Registration Specifications Wingspan 26" (660mm) Register your product today to join our mailing list and keep up Length 21.25" (540mm) to date with product updates, Without Battery: 7.23 oz (205g) offers and E-flite news. ® With Recommended 3S 850mAh Battery (SPMX8503S30): 9.81 oz (278g) Weight *8.45 oz (242g) with 3s 600mAh... -
Page 4: Low Voltage Cutoff (Lvc)
High Rates: 100%, Expo 10% — Low Rates 70%, Expo 5% 9. Set Rates and Expo: Rudder Set Switch: Switch G High Rates: 100%, Expo 10% — Low Rates 70%, Expo 5% 10. Set Throttle Cut; Switch: Switch H, Position: -100% UMX Me 262 BNF Basic... - Page 5 DX Series Transmitter Setup 1. Power ON your transmitter, click on scroll wheel, roll to System Setup and click the scroll wheel. Select YES. 2. Go to Model Select and choose Add New Model at the bottom of the list. The system asks if you want to create a new model, select Create.
-
Page 6: Transmitter And Receiver Binding
AS3X mode, the control inputs used for SAFE mode will be excessive for AS3X mode and the aircraft will react immediately. UMX Me 262 BNF Basic... - Page 7 Differences Between SAFE and AS3X Modes This section is generally accurate but does not take into account flight speed, battery charge status, and other limiting factors. SAFE Select AS3X Control stick is Aircraft will continue to fly at its Aircraft will self level neutralized present attitude Holding a small...
-
Page 8: Esc/Receiver Arming And Battery Installation
This CG location has been determined with the recommended battery. Check the CG with the model inverted. Adjust the battery forward or aft so the model balances level at the recommended point. 44mm from leading edge +/-4mm UMX Me 262 BNF Basic... -
Page 9: Control Direction Test
If the control surfaces do not respond as shown, DO NOT FLY. Refer to the Troubleshooting Guide for more informa- tion. If you need more assistance, contact the appropriate Horizon Hobby Product Support department. 1. Power on the transmitter. 2. Enable throttle cut. -
Page 10: As3X ® Control Response Test
0, then adjust the linkages to center the control surfaces. • Turn the linkage clockwise or counterclockwise until the control surface is centered. • Attach the linkage to the control horn after adjustment. UMX Me 262 BNF Basic... -
Page 11: Hand Launching
Hand Launching OTICE: We recommend hand launching in SAFE Mode, into the wind at 100% power, in high rates. When hand launching in SAFE mode, the control unit will sense the force of the launch and automatically enable the Hand Launch Assist feature. When this feature is active, the control unit will add up elevator so the aircraft climbs at a higher angle for a few seconds. -
Page 12: Landing Gear Removal Continued
1. Press down the tab and slide the end of the landing gear wire over the plastic tab. 2. Gently pull the landing gear toward the front of the air- craft, until it is fully removed from the plastic bracket. Installation Assemble in reverse order. UMX Me 262 BNF Basic... -
Page 13: Service And Repairs
Service and Repairs Disassembly Ducted Fan Unit 1. Carefully remove the plastic nose ring ( ) from the front of the nacelle using a hobby knife to cut through the glue joint. 2. Carefully cut along the left and right seam ( ) of the nacelle using a hobby knife or razor blade. -
Page 14: As3X ® System Trouble Shooting Guide
Hold transmitter bind button or switch during bind process binding) until receiver is bound Aircraft or transmitter is too close to large Move aircraft and transmitter to another metal object, wireless source or another location and attempt binding again transmitter UMX Me 262 BNF Basic... -
Page 15: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Less than a 5-second wait between first Leaving transmitter on, disconnect and powering on transmitter and connecting reconnect flight battery to aircraft flight battery to aircraft Select correct model memory on transmitter Aircraft bound to different model memory and disconnect and reconnect flight battery (ModelMatch radios only) -
Page 16: Replacement Parts
S100 1x100W USB-C Smart Charger EFL-1500 Battery Hatch: UMX Me 262 SPMXCA320 Adapter: IC3 Battery / IC2 Device EFL-1501 Landing Gear Set: UMX Me 262 EFL-1502 Decal Sheet: UMX Me 262 Optional Parts and Accessories SPMX-1072 Brushless Motor: UMX Me 262 Part #... -
Page 17: Important Federal Aviation Administration (Faa) Information
Important Federal Aviation Administration (FAA) Information Use the QR code below to learn more about the Recre- If your model aircraft weighs more than .55lbs or 250 grams, ational UAS Safety Test (TRUST), as was introduced by you are required by the FAA to register as a recreational flyer the 2018 FAA Reauthorization Bill. -
Page 18: Limited Warranty
(iii) modification of or to any part of the Product, (iv) attempted mission process found on our website or call Horizon to obtain a service by anyone other than a Horizon Hobby authorized service Return Merchandise Authorization (RMA) number. Pack the Prod- center, (v) Product not purchased from an authorized Horizon uct securely using a shipping carton. -
Page 19: Contact Information
Supplier’s Declaration of Conformity • Reorient or relocate the receiving antenna. EFL UMX Me 262 BNF Basic (EFLU31050) • Increase the separation between the equipment and This device complies with part 15 of the FCC Rules. - Page 20 ©2024 Horizon Hobby, LLC. E-flite, AS3X, UMX, DSM, DSM2, DSMX, ModelMatch, Bind-N-Fly, the Bind-N-Fly logo and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
