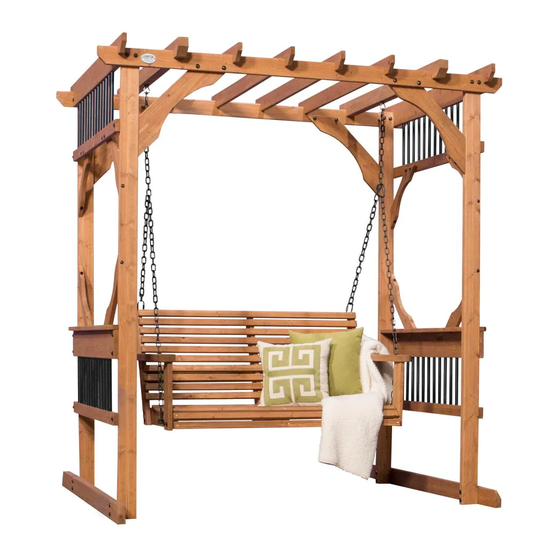

Backyard Discovery PERGOLA SWING Owner's Manual

Outdoor product
Hide thumbs

Advertisement

Quick Links

Download this manual
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
1-800-856-4445
• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
www.backyarddiscovery.com (you will also find any updates on
assembly instructions and information to order replacement parts)
Features the
Save this assembly manual for future reference in the event that
INS-1806627-A-PERGOLA SWING-ENG 09/12/2017
PERGOLA SWING
Register your new (Outdoor Product) on-line @
you need to order replacement parts.
OUTDOOR PRODUCT
MODEL: #1806627
fastening system.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the PERGOLA SWING and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery PERGOLA SWING

Summary of Contents for Backyard Discovery PERGOLA SWING

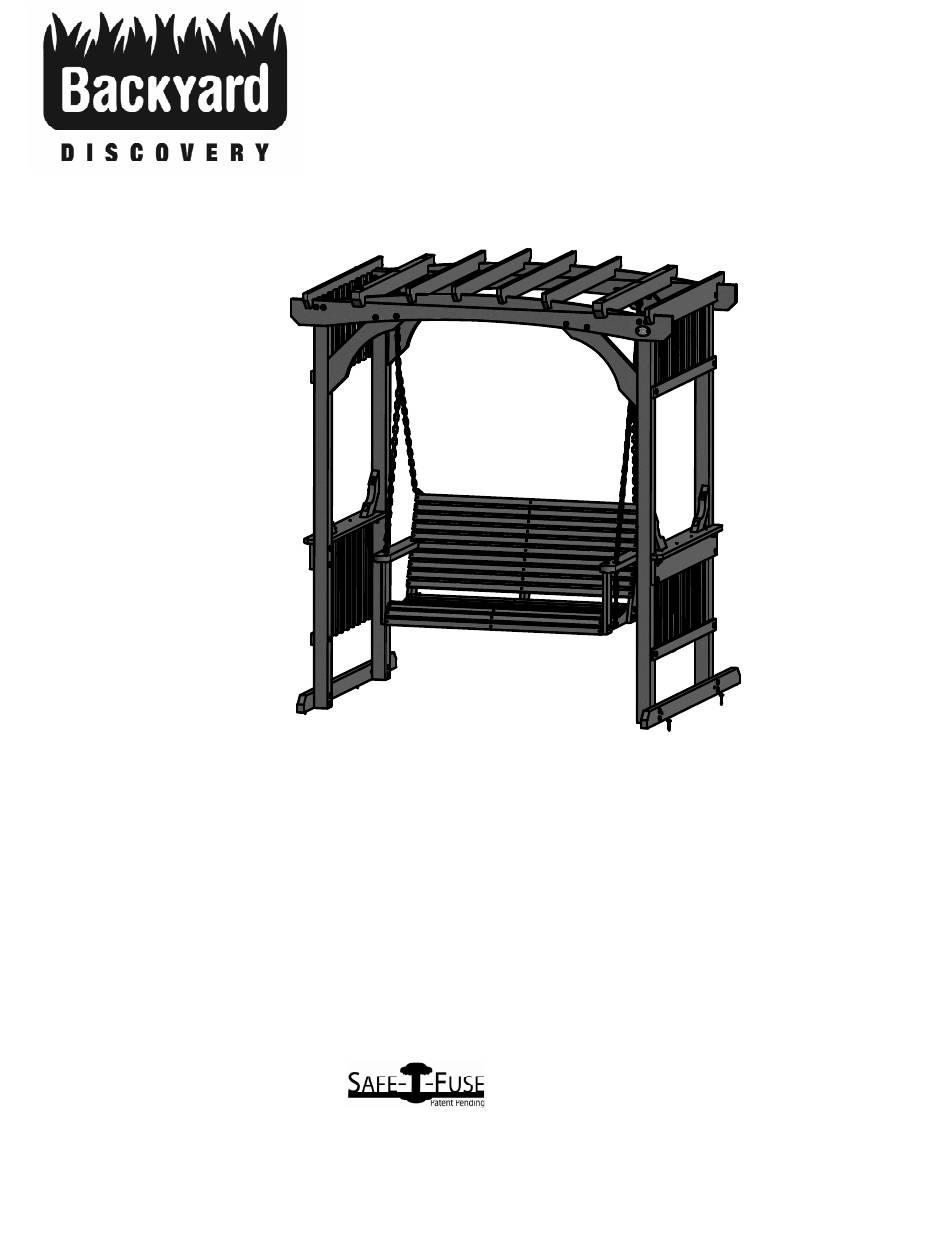

  • Page 1 (you will also find any updates on assembly instructions and information to order replacement parts) Features the fastening system. Save this assembly manual for future reference in the event that you need to order replacement parts. Made in China INS-1806627-A-PERGOLA SWING-ENG 09/12/2017...
  • Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.backyarddiscovery.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La enda donde realizó...
  • Page 3 Owner’s Manual Outdoor Product Dear Customer: Please read entire booklet completely before beginning the assembly process. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Recreational Park, or any similar Commercial Application.
  • Page 4 Owner’s Manual Outdoor Product Maintenance Instructions: 1. Check all nuts and bolts twice monthly during the usage season and tighten as required. (But not so tight that you crack the wood) It is particularly important that this procedure be followed at the beginning of each season. 2.
  • Page 5 Our wood carries a 5 year pro-rated warranty on rot and decay as well. Please see warranty details for more information. 5. What is the best way to get started assembling the product? Backyard Discovery recommends taking all the parts out of the boxes and arranging them by part number before you begin any assembly.

  • Page 6: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Drill Attachments: Phillips (3/8" Drive Ratchet, 1/2" STD (Cordless Drill or Electric Drill) Head &...
  • Page 7 Basic Setup Dimensions Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. 6'-10" 4'-6" 7'-5 7/8" 2'-11" NOT TO EXCEED 600 LBS 5'-6 1/8"...

  • Page 8: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) B1 - POST - W4L07351 3"x3"x85" (76x76x2160) B2 - POST - W4L07358 3"x3"x85" (76x76x2160) D1 - SUPPORT BRACE - W4L07809 1 3/8"x5 1/4"x25 3/8" (36x134x646) E1 - GROUND BOARD - W4L07353 1 3/8"x3 3/8"x66 1/8" (36x86x1680) E3 - LEFT ARM REST - W4L07341 E2 - RIGHT ARM REST - W4L07340 1 3/8"x3 3/8"x26 5/8"...
  • Page 9 Parts Identification Wood Components (NOT TO SCALE) H9 - SIDE SEAT SUPPORT - W4L07350 1"x3 3/8"x21 3/4" (24x86x551) H10 - SWING RAIL SUPPORT - W4L07344 1"x3 3/8"x13" (24x86x330) H11 - CENTER BACK RAIL - W4L07347 1"x3 3/8"x24 3/4" (24x86x630) M1 - SWING SEAT SUPPORT - W4L07345 5/8"x3 3/8"x44 3/4"...
  • Page 10 Parts Identification Hardware - SCREW PFH 8x1/2 BLK - H100203 - BOLT WH 5/16x2-1/4 BLK - H100205 (70) - SCREW PFH 8x1-1/2 BLK - H100200 (13) - SCREW PFH 8x1 3/4 BLK - H100382 - BOLT WH 5/16x3 1/4 BLK - H100484 - SCREW PFH 8x2 1/4 BLK - H100483 - SCREW PFH 8x2-1/2 BLK - H100201 (30)
  • Page 11 Parts Identification Hardware (13) - WASHER FLAT 9x18 BLK - H100474 - T-NUT 5/16 BLK - H100379 - SCREW PWH 8x5/8 BLK - H100202 (78) - WASHER LOCK EXT 8x19 BLK - H100198 - WASHER FLAT 8x27 BLK - H100478 - NUT LOCK 5/16 BLK - H100479 (62) - WASHER LOCK EXT 12x19 BLK - H100199...
  • Page 12 - CHAIN SUPPORT BRACKET - A4M00632 - GROUND STAKE REBAR - A4M00527 - L BRACKET 2.5x38x50x55 BLK - A4M00615 - PERGOLA SWING CHAIN - A4M00634 - 3-SIDED-90° BRACKET - BLK - A4M00706 - QUICK LINK - A4M00633 - PERGOLA SWING FOOT - A6P00081...
  • Page 13 3"x3"x85" (76x76x2160) 1 9/16"x53 9/16"x19 1/4" (40x1360x489) 1 9/16"x44 1/2"x21" (40x1130x533) E1 - GROUND BOARD - W4L07353 1 3/8"x3 3/8"x66 1/8" (36x86x1680) - PERGOLA SWING FOOT - A6P00081 SQ - "A" REVISION TAG - A100314 STEP 1 SCREW PWH 8x5/8 BLK...
  • Page 14 B2 - POST - W4L07358 1 9/16"x53 9/16"x19 1/4" (40x1360x489) 1 9/16"x44 1/2"x21" (40x1130x533) 3"x3"x85" (76x76x2160) E1 - GROUND BOARD - W4L07353 - PERGOLA SWING FOOT - A6P00081 1 3/8"x3 3/8"x66 1/8" (36x86x1680) STEP 2 NUT BARREL WH 5/16x7/8 BLK NUT BARREL...
  • Page 15 H1 - ARCH RAIL - W4L07806 1"x5 1/4"x82" (24x134x2084) STEP 3 BOLT WH 5/16x3 1/2 BLK (8 PLCS) WASHER LOCK EXT 8x19 BLK NUT BARREL (8 PLCS) WH 5/16x7/8 BLK SCREW PFH 8x3 BLK (4 PLCS) WASHER LOCK WASHER LOCK EXT 12x19 BLK EXT 8x19 BLK (8 PLCS) WASHER LOCK...
  • Page 16 D1 - SUPPORT BRACE - W4L07809 1 3/8"x5 1/4"x25 3/8" (36x134x646) WASHER (12) LOCK EXT 8x19 BLK STEP 4 WASHER LOCK EXT 8x19 BLK WASHER LOCK EXT (8 PLCS) BARREL WH 12x19 BLK 5/16x7/8 BLK BOLT WH 5/16x2 BLK (8 PLCS) WASHER LOCK EXT 12x19 BLK (8 PLCS) NUT BARREL WH 5/16x7/8 BLK...
  • Page 17 G1 - SHELF - W4L07352 BOLT WH 5/16x1 1"x5 1/4"x44 1/2" (24x134x1130) BOLT WH 1/2 BLK 1/4x1/2 BLK LAG SCREW WH E4 - SHELF BRACE - W4L07416 - 3-SIDED-90° BRACKET - BLK 1/4x1-1/2 BLK 1 3/8"x3 3/8"x12" (36x86x304.8) - A4M00706 NUT BARREL WH 1/4x7/8 BLK STEP 5...
  • Page 18 19 3/4 TOWARDS BACK W1 - SWING SUPPORT - W4L07807 2"x3 3/8"x53 1/2" (50x86x1360) LAG SCREW WH 5/16x3 1/2 BLK STEP 6 WASHER LOCK EXT 8x19 BLK FIG. 1 WASHER FLAT LAG SCREW WH 5/16x3 1/2 BLK 8x27 BLK (4 PLCS) WASHER LOCK EXT 8x19 BLK NUT LOCK 5/16 (4 PLCS)
  • Page 19 H2 - CENTER RAFTER - W4L07808 1"x3 3/8"x53 1/2" (24x86x1360) STEP 7 SCREW PFH 8x3 BLK (8 PLCS)
  • Page 20 M1 - SWING SEAT SUPPORT - W4L07345 5/8"x3 3/8"x44 3/4" (16x86x1138) H8 - CENTER SEAT SUPPORT - W4L07349 H9 - SIDE SEAT SUPPORT - W4L07350 1"x3 3/8"x21 3/4" (24x86x551) 1"x3 3/8"x21 3/4" (24x86x551) STEP 8 FIG. 2 SCREW PFH 8x1 3/4 BLK (2 PLCS) FIG.
  • Page 21 M2 - SWING BACK SUPPORT - W4L07348 - TIE STRAP PLATE - A4M00631 5/8"x3 3/8"x46 3/4" (16x86x1186) H5 - SIDE BACK RAIL - W4L07346 H11 - CENTER BACK RAIL - W4L07347 1"x3 3/8"x24 3/4" (24x86x630) 1"x3 3/8"x24 3/4" (24x86x630) STEP 9 BOLT HEX 5/16x1-1/2 - BLK (4 PLCS) TIE STRAP PLATE...
  • Page 22 (1) SWING SEAT FRAME ASSEMBLY (1) SWING BACK FRAME ASSEMBLY STEP 10 WASHER LOCK EXT 12x19 BLK WASHER LOCK EXT 12x19 BLK WASHER LOCK (6 PLCS) EXT 8x19 BLK NUT BARREL NUT BARREL WH 5/16x7/8 BLK WH 5/16x7/8 BLK (6 PLCS) BOLT WH 5/16x1 1/2 BLK (6 PLCS) WASHER LOCK EXT 8x19 BLK...
  • Page 23 T3 - SWING SEAT BOARD - W4L07343 (12) 1"x1 3/8"x46 3/4" (24x36x1186) STEP 11 SCREW PFH 8x1-1/2 BLK (36 PLCS) NOTE: ORIENTATION OF ‘T3’ BOARDS 8mm (5/16") TYPICAL SPACING...
  • Page 24 T2 - SWING BACK BOARD - W4L07342 (10) 1"x1 3/8"x48 5/8" (24x36x1234) STEP 12 15mm (5/8") TYPICAL SPACING SCREW PFH 8x1-1/2 BLK (30 PLCS) NOTE: ORIENTATION OF ‘T2’ BOARDS...
  • Page 25 E2 - RIGHT ARM REST - W4L07340 1 3/8"x3 3/8"x26 5/8" (36x86x677) - CHAIN SUPPORT BRACKET - A4M00632 H10 - SWING RAIL SUPPORT - W4L07344 1"x3 3/8"x13" (24x86x330) STEP 13 NUT BARREL FIG. 1 WH 5/16x7/8 BLK WASHER LOCK EXT 12x19 BLK (2 PLCS) WASHER LOCK EXT 8x19 BLK...
  • Page 26 E3 - LEFT ARM REST - W4L07341 1 3/8"x3 3/8"x26 5/8" (36x86x677) - CHAIN SUPPORT BRACKET - A4M00632 H10 - SWING RAIL SUPPORT - W4L07344 1"x3 3/8"x13" (24x86x330) STEP 14 NUT BARREL WH 5/16x7/8 BLK (2 PLCS) NUT BARREL WH 5/16x7/8 BLK WASHER LOCK EXT 12x19 BLK FIG.
  • Page 27 - QUICK LINK - A4M00633 - PERGOLA SWING CHAIN - A4M00634 STEP 15 TIGHTEN ATTACH CHAIN TO QUICK LINK. QUICK LINK FIG. 1 INSERT CHAIN INTO QUICK LINK 1. ATTACH QUICK LINK TO BRACKET. 2. ATTACH CHAIN TO QUICK LINK.
  • Page 28 * * * IF INSTALLING ON HARD SURFACE SKIP TO THE NEXT STEP * * * - GROUND STAKE REBAR - A4M00527 XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241 STEP 16 BOLT WH 5/16x1 BYD ID TAG (SMALL) WITHOUT AGES 1/4 BLK (1 PLC) NUT BARREL...
  • Page 29 * * * FOR INSTALLATION ON HARD SURFACE * * * CONCRETE ANCHOR 1/4" x 2" - L BRACKET 2.5x38x50x55 BLK - A4M00615 WASHER FLAT 8x19 BLACK STEP 17 BOLT WH 5/16x1 1/4 BLK WASHER LOCK EXT 12x19 BLK NUT BARREL WH 5/16x5/8 BLK CONCRETE ANCHOR 1/4"...
  • Page 30 Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
