Backyard Discovery PERGOLA SWING Owner's Manual page 14

B1 - POST - W4L07351
(1)
3"x3"x85" (76x76x2160)
B2 - POST - W4L07358
(1)
3"x3"x85" (76x76x2160)
(1)

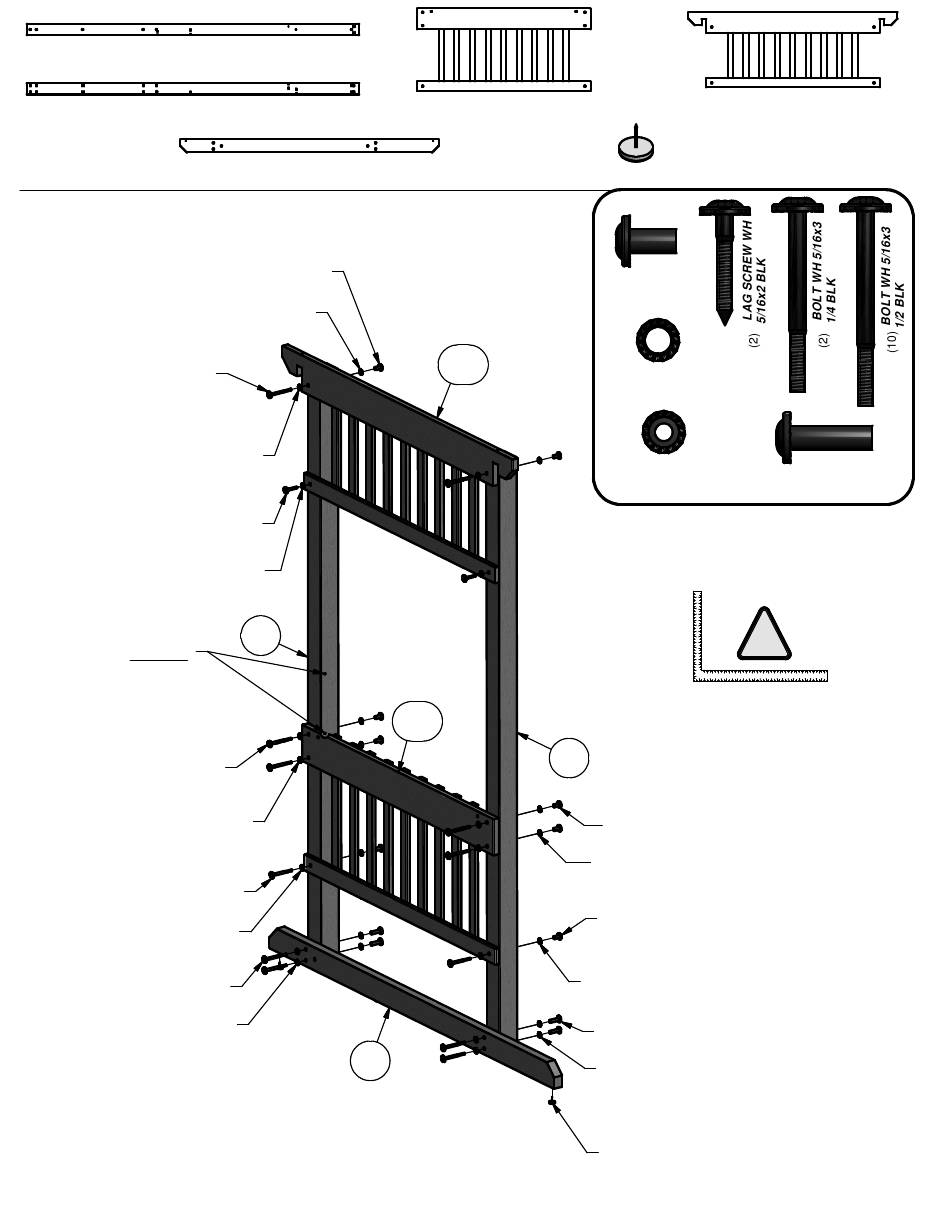

STEP 2
NUT BARREL WH 5/16x7/8 BLK
WASHER LOCK EXT 12x19 BLK
BOLT WH 5/16x3 1/2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
LAG SCREW WH 5/16x2 BLK
WASHER LOCK EXT 8x19 BLK
NOTE:
HOLE LOCATIONS
ARE SAME ON 'B2'
AS SHOWN ON 'B1'
BOLT WH 5/16x3 1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x3 1/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x3 1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
(1)
E1 - GROUND BOARD - W4L07353
1 3/8"x3 3/8"x66 1/8" (36x86x1680)
(2 PLCS)
(2 PLCS)
(2 PLCS)
(2 PLCS)
(2 PLCS)
B1
E1
WP2 - LOWER WALL PANEL - W2A02028
1 9/16"x44 1/2"x21" (40x1130x533)
(2)
- PERGOLA SWING FOOT - A6P00081
WP1
WP2
B2
WP1 - UPPER WALL PANEL - W2A02027
(1)
1 9/16"x53 9/16"x19 1/4" (40x1360x489)
NUT BARREL
(8)
WH 5/16x7/8 BLK
WASHER LOCK
(12)
EXT 12x19 BLK
WASHER LOCK
(14)
EXT 8x19 BLK
!
NUT BARREL WH 5/16x7/8 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(2 PLCS)
WASHER LOCK EXT 12x19 BLK
(2 PLCS)
NUT BARREL WH 5/16x1-1/2 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
PERGOLA SWING FOOT
(2 PLCS)
NUT BARREL
(4)
WH 5/16x1-1/2
BLK
