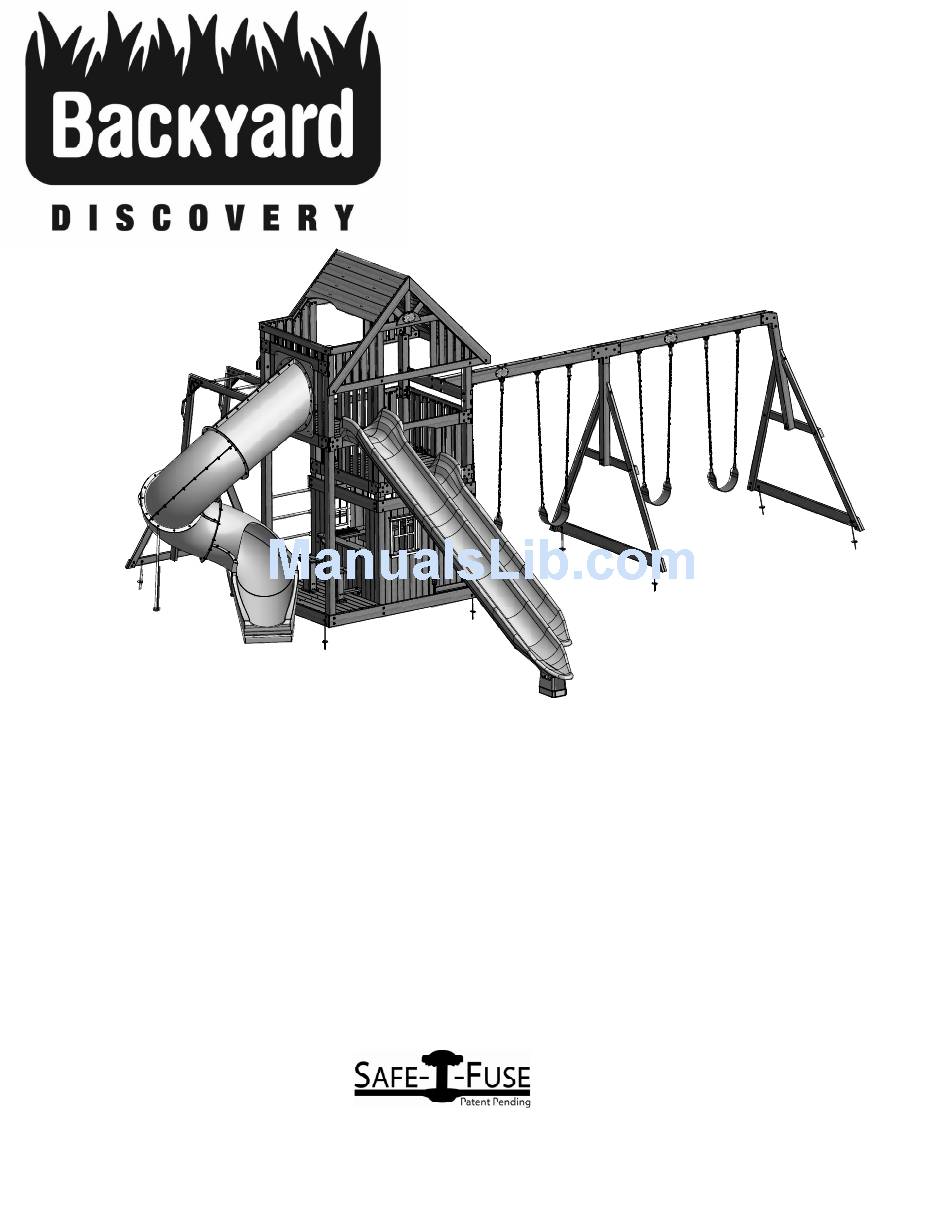

Backyard Discovery Traverse Owner's Manual

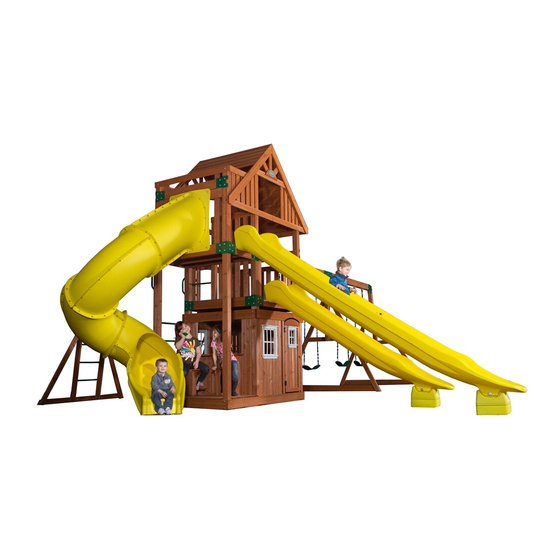

Wooden swing set
Hide thumbs

Advertisement

Table of Contents

• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
Register your new swing set and / or accessories on-line @ www.swingsetsonline.com
(you will also find any updates on assembly instructions and information to order
Features the
Save this assembly manual for future reference in the event that
INS-54293-A-TRAVERSE-ENG 08/21/13
Manufacturer: Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
replacement parts)
you need to order replacement parts.
TRAVERSE
Wooden Swing Set
Model: # 54293
fastening system.
Meijer.com
Made in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Traverse and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery Traverse

Summary of Contents for Backyard Discovery Traverse

  • Page 1 Model: # 54293 • Owner's Manual • Frequently Asked Questions • Assembly Instructions • Warranty Information Manufacturer: Backyard Discovery 3001 North Rouse Pittsburg, KS 66762 1-800-856-4445 Register your new swing set and / or accessories on-line @ www.swingsetsonline.com (you will also find any updates on assembly instructions and information to order...
  • Page 2 Meijer.com STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...

  • Page 3: For Your Records

    Meijer.com Owner’s Manual Play Set Dear Customer: Please read entire booklet completely before beginning the assembly process. Equipment is recommended for use by children 3 to 10 years of age. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Daycare, Preschool, Nursery School, Recreational Park, or any similar Commercial Application.

  • Page 4: Positioning Your Playcenter

    Meijer.com Owner’s Manual Play Set Please refer to the Assembly section of the Assembly Manual for Maximum Fall Height. Positioning Your Playcenter 1. The Playcenter is designed to be installed on a level surface by an Adult with an Adult helper.
  • Page 5 Meijer.com Owner’s Manual Play Set The following chart explains the fall height in feet from which a life threatening head injury would not be expected Critical Heights in feet (m) of Tested Materials Material Uncompressed Depth Compressed Depth 6" (152mm) 9"...

  • Page 6: Maintenance Instructions

    Meijer.com Owner’s Manual Play Set 18. Verify that any suspended climbing ropes, chain, or cable are secured at both ends and that they cannot be looped back on it. 19. Instruct children not to attach items to the playground equipment that are not specifically designed for use with the equipment, such as, but not limited to, jump ropes, clothesline, pet leashes, cables and chain as they may cause a strangulation hazard.
  • Page 7 Third Party Assembly: Customer may, in their sole discretion, elect to use a third party person or service to assemble this product. Backyard Discovery assumes no responsibility or liability for any charge incurred by the Customer for any assembly services’.
  • Page 8 Meijer.com Owner’s Manual Play Set APPENDIX A Information on Playground Surfacing Materials: The following information is from the United States Consumer Product Safety Commission’s Information Sheet for playground surfacing material; also see the following website for additional information: www.cpsc.gov/cpscpub/pubs/323.html. X3. SECTION 4 OF THE CONSUMER PRODUCT SAFETY COMMISSION’S OUTDOOR HOME PLAYGROUND SAFETY HANDBOOK X3.1 Select Protective Surfacing—One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-absorbing protective surfacing under and around your play equipment.
  • Page 9 Meijer.com Owner’s Manual Play Set The American Society for Testing and Materials takes no position respecting the validity of any parent right asserted in connection with any item mentioned in this standard. Users of this standard are expressly advised that determination of the validity of any such parent rights, and the risk of infringement of such rights, are entirely their own responsibility.
  • Page 10 5. How often should the playset be stained? Backyard Discovery recommends the playset be stained once each year. A water or oil based stain can be used at the customer’s discretion. 6. Why does it seem that my swing set is developing cracks? Wood is a natural material;...

  • Page 11: Tools Required For Installation

    Meijer.com Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included with the outdoor product purchase.) (Square) (Level 24") (Claw Hammer) (Phillips Screw Driver) (Tape Measure) (Drill Attachments: (3/16"...
  • Page 12 Basic Setup Dimensions Meijer.com Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. 41'-2" [12.5 m] 6'-0" 29'-2" [1.8 m] [8.9 m] 24'-4 1/2"...
  • Page 13 Meijer.com TRAVERSE PLAYSET Box Identification Modules Used (NOT TO SCALE) PEDESTAL SEATS & FLOOR MODEL #5418 4 POSITION SWING BEAM (2) MODEL #5404 (1) MODEL #5405 TOWER II MODEL #54113 (2 Boxes) 5' MONKEY BAR KIT BALCONY CABIN KIT MODEL #69012...

  • Page 14: Important Notes

    Meijer.com ***READ ME FIRST!*** Important Notes 1) OPEN AND ASSEMBLE ONE BOX AT A TIME to prevent confusion during assembly. 2) USE THIS MANUAL IN CONJUCTION WITH THE ASSEMBLY MANUAL FROM EACH BOX to properly assemble your playset. 3) Note "Omitted" and "Modified" steps as found on each page of this manual. 4) Due to the modularity of this playset, some boards and hardware may not be used.
  • Page 15 Meijer.com TRAVERSE PLAYSET "Order of Assembly" TOWER II - MODEL #54113 BALCONY - MODEL #5412 CABIN KIT - MODEL #5416 PEDESTAL SEATS AND FLOOR - MODEL #5418 4 POSITION SWING BEAM - (2) MODEL #5404 & (1) MODEL #5405 7' SPIRAL SLIDE - MODEL #1808 7.
  • Page 16 Meijer.com TRAVERSE PLAYSET Tower II Model #54113 START • OPEN "TOWER II" BOX, MODEL #54113 AND USE THE INSTRUCTION MANUAL. • MODIFIED STEPS: STEP 6 - ASSEMBLE ONLY 'SP5', 'SP6', 'G3', & 'G4' BOARDS. STEP 7 - ASSEMBLE ONLY THE 'J6' BOARD.
  • Page 17 Meijer.com TRAVERSE PLAYSET Balcony Model #5412 • OPEN "TOWER II BALCONY" BOX, MODEL #5412 AND USE THE INSTRUCTION MANUAL. • MODIFIED STEPS: STEP 8 - DO NOT ASSEMBLE THE (3) CENTER M1 BOARDS. • OMITTED STEPS: THE "PART REMOVAL" STEPS.
  • Page 18 Meijer.com TRAVERSE PLAYSET Cabin Kit Model #5416 • OPEN "CABIN KIT" BOX, MODEL #5416 AND USE THE INSTRUCTION MANUAL. • BUILD "CABIN KIT" FOR TOWER II (LOCATED AFTER THE TOWER I INSTRUCTIONS IN THE MANUAL). • YOUR CABIN KIT SHOULD LOOK LIKE THIS ILLUSTRATION WHEN INSTALLED.
  • Page 19 Meijer.com TRAVERSE PLAYSET Pedestal Seats & Floor Model #5418 • OPEN "PEDESTAL SEATS & FLOOR" BOX, MODEL #5418 AND USE THE INSTRUCTION MANUAL. • YOUR PEDESTAL SEATS & FLOOR SHOULD LOOK LIKE THIS ILLUSTRATION WHEN INSTALLED.
  • Page 20 Meijer.com TRAVERSE PLAYSET 4 Position Swing Beam Model #5405 • OPEN (2) "2 POSITION SWING BEAM" BOXES, MODEL #5404 & (1) "4 POSITION SWING BEAM" BOX, MODEL #5405 AND USE THE INSTRUCTION MANUALS. • YOUR 4 POSITION SWING BEAM SHOULD LOOK...
  • Page 21 Meijer.com TRAVERSE PLAYSET 7' Spiral Slide Model #1808 • OPEN "7 FT. SPIRAL SLIDE" BOX, MODEL #1808 AND USE THE INSTRUCTION MANUAL. • OMITTED STEPS: STEP 1 & STEP 2. • YOUR 7 FT. SPIRAL SLIDE SHOULD LOOK LIKE THIS ILLUSTRATION WHEN INSTALLED.
  • Page 22 Meijer.com TRAVERSE PLAYSET 10' & 14' Rocket Slides Model #1809 & #1811 • OPEN "14' ROCKET SLIDE" BOX, MODEL #1811 AND USE THE INSTRUCTION MANUAL. • OMITTED STEPS: STEP 1 & STEP 2. • OPEN "10' ROCKET SLIDE" BOX, MODEL #1809 AND USE THE INSTRUCTION MANUAL.
  • Page 23 Meijer.com TRAVERSE PLAYSET 5' Monkey Bar Kit Model # 69012 • OPEN "5' MONKEY BAR KIT" BOX, MODEL #69012 AND USE THE INSTRUCTION MANUAL. • PAY CLOSE ATTENTION TO THE STEPS THAT SAY "TOWER II ONLY." • OMIT STEPS: FOR "HIGHLANDER ONLY" & FOR "PATRIOT ONLY."...
  • Page 24 Limited Warranty. In addition, Backyard Discovery will replace any parts within the first 30 days from date of purchase found to be missing from or damaged in the original packaging.
