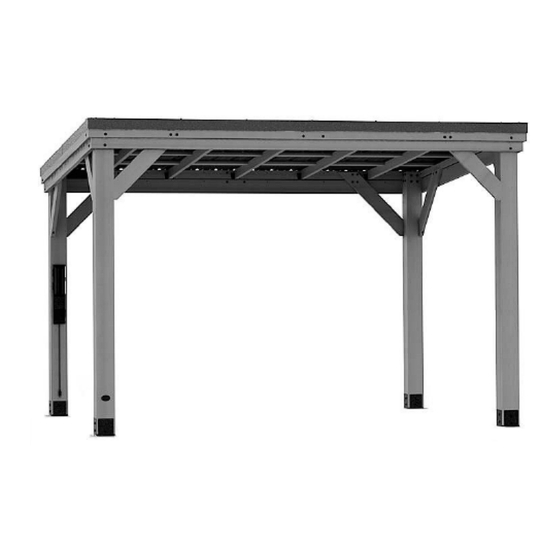

Backyard Discovery Arcadia 2306073B Installation Instructions Manual

12x9.5 gazebo
Hide thumbs

Advertisement

Quick Links

Download this manual
Manufactured by:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
12
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990
MODEL # : 2306073B
Gazebo
Please visit www.backyarddiscovery.com
For the most up to date assembly manual, to register your product, or to order
replacement parts Para obtener instrucciones en español, visite
www.backyarddiscovery.com
Made in China
B
2-21-2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the Arcadia 2306073B and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery Arcadia 2306073B

Summary of Contents for Backyard Discovery Arcadia 2306073B

  • Page 1 Manufactured by: Backyard Discovery 3305 Airport Drive, Pittsburg, KS 66762 800-856-4445 Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476 J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 08005678990 Gazebo MODEL # : 2306073B Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your product, or to order replacement parts Para obtener instrucciones en español, visite...
  • Page 2 OWNER'S MANUAL - BASIC SETUP DIMENSIONS & ASSEMBLY NOTES It is critically important that you start with square and level footings, concrete pad or deck to attach your structure Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step. •...
  • Page 3 OWNER'S MANUAL - ANCHORING LAYOUT...
  • Page 4 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) JOIST ASSEMBLY - W2A04170 (x1) 1 7/16"x8 7/16"x95 1/16" (36x214x2414) JOIST ASSEMBLY - W2A03551 JOIST ASSEMBLY - W2A03552 (x1) 1 7/16"x8 7/16"x28 7/16" (36x214x722) (x1) 1 7 /16"x8 7 /16"x28 7 /16" (36x214x722) CLEAT - W4L 17306 (x2) 15/16"x2 3/8"x97 9/16"...
  • Page 5 OWNER'S MANUAL - PARTS IDENTIFICATION Wood Components (Not to Scale) 0 O 0 0 O 0 JOIST ASSEMBLY -W2A03549 JOIST ASSEMBLY -W2A03550 (x1) 17/16"x87/16"x28 7/16" (36x214x 722) (x1) 17/16"x87/16"x28 7/16" (36x214x 722) • FASCIA- W4L 17307 (x2) 15/16"x5 1/4"x72 15/16" (24x134x1853) PURLIN -W4L 195 79 (x4) 15/16"x3 3/8"x45 13/16"...
  • Page 6 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components H100120 | CONCRETE ANCHOR | 1/4x2 (x16) H100405 | WASHER LOCK EXT BLK H100198 | WASHER LOCK EXT BLK | 6x15 (x8) (x94) | 8x19 H100200 | SCREW PFH BLK (x16) | 8x1-1/2 H100653 | NUT LOCK BLK (x10)
  • Page 7 OWNER'S MANUAL - PARTS IDENTIFICATION Hardware Components | SCREW TAPPING H101116 H101127 | BOLT WH BLK | 1/4 x 1 (x21) (x4) | 1/4x3-1/2 | SCREW WOODGRIP H101117 | 10x3/4 (x120) H100114 | TORX WRENCH (x1) | T-30 | NUT LOCK BLK H100479 | 5/16 (x6)
  • Page 8 OWNER'S MANUAL - PARTS IDENTIFICATION Accessory Components (Not to Scale) A4M02794 DRIP EDGE TRIM (x1) A4M02738 29GA SHEETING (x4) A4M01787 RAFTER BRACKET (x6) A4M02739 29GA SHEETING (x2) A4M02764 RAFTER BRACKET A4M02793 DRIP EDGE (x4) (x2) A4M02763 RAFTER BRACE (x2) A4M02734 TRIM SPLICE (x3) A4M00978...

  • Page 9: Hardware Parts

    PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 10 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 7/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits Cordless Drill or Electric Drill 3/8" Drive Ratchet, 1/2" & 7/16" STD Sockets, 1/2" & 7/16" Deep Sockets Phillips Screw Driver 3/8 &...
  • Page 11 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 18 STEP 68 - FRONT JOIST ASSEMBLY QTY PART NUMBER DESCRIPTION H100379 T-NUT 5/16 BLK JOIST ASSEMBLY-W2A04171 (x1) 1 7/16"x8 7/16"x95 1/16" (36x214x2414) NOTE: -NOTE NOTCH IN JOIST FOR LOCATION OF T-NUTS. J02 (x1) JOIST ASSEBML Y 379 (x6) T-NUT - 5/16"...
  • Page 19 STEP 6C - FRONT JOIST ASSEMBLY PART NUMBER DESCRIPTION H100379 TNUT-5/16" BLK FASCIA- W4L 17307 BOLT WH 5/16x2 1/4 BLK H100205 ( x2 ) 15/16"x5 1/4"x72 15/16" ( 24x134x1853 ) WASHER LOCK EXT 8x19 H100198 JOIST ASSEMBLY FROM PREVIOUS STEP NOTE HOLES ARE 1-1/2"...
  • Page 22 (x1) STEP 78 - REAR JOIST ASSEMBLY QTY PART NUMBER DESCRIPTION H100379 T-NUT 5/16 BLK JOIST ASSEMBLY - W2A04170 1 7/16"x87/16"x95 1/16" (36x214x2414) NOTE: -NOTE NOTCH IN JOIST FOR LOCATION OF T-NUTS. J05 (x1) JOIST ASSEBML Y 379 (x6) T-NUT - 5/16"...
  • Page 23 STEP 7C - REAR JOIST ASSEMBLY PART NUMBER DESCRIPTION H100379 TNUT-5/16" BLK FASCIA- W4L 17303 BOLT WH 5/16x2 1/4 BLK H100205 ( x2 ) 15/16"x5 1/4"x72 15/16" ( 24x134x1853 ) WASHER LOCK EXT 8x19 H100198 JOIST ASSEMBLY FROM PREVIOUS STEP NOTE HOLES ARE 1-1/2"...
  • Page 33 QTY PART NUMBER DESCRIPTION STEP 13 - GAZEBO ASSEMBLY BOLT WH 5/16x1 1/4 BLK H100459 2764 RAFTER BRACKET - A4M02764 1787 RAFTER BRACKET - A4M01787 (x4) 1 5/8"x2 7/16"x5 1/4" (42x62x133) (x6) 1 5/8"x27/16"x4" (42x62x101) NOTE: - BRACKETS AL TERNA TE STARTING WITH 459 (x20) A4M01787.
  • Page 35 STEP 148 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H100653 NUT LOCK 1 /4 BLK RAFTER - W4L 17300 H100488 BOLT WH 1/4x2 BLK (x3) 1 7/16"x3 3/8"x109 3/4" (36x86x2787) H101127 BOLT WH 1/4x3-1/2 BLK H100630 WASHER FLAT 8x19 BLK (x2) RAFTER ASSEMBLY FROM STEP 14A NOTES: - INSERT RAFTERS INTO BRACKETS...
  • Page 36 STEP 15 - GAZEBO ASSEMBLY PURLIN - W4L 19578 (x4) 15/16"x3 3/8"x97 5/8" (24x86x24 79) NOTE: - POSITION H01 PURLINS AS SHOWN.
  • Page 37 STEP 16 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H100382 SCREW PFH 8x1 3/4 BLK PURLIN - W4L 19579 (x4) 15/16"x3 3/8"x45 13/16" (24x86x1163) NOTE: - ALIGN PURLIN HOLES WITH RAFTER PILOT HOLES. -ATTACH SCREWS FROM CENTER AND WORK OUTWARDS. 382 (x56) SCREW - 1 3/4"...
  • Page 38 STEP 17A- GAZEBO ASSEMBLY A4M02739 29GA SHEETING (x1) WARNING: GLOVES ARE RECOMMENDED WHEN HANDLING STEEL ROOF PIECES. NOTES: - REMOVE BLUE FILM FROM ROOF PANELS. -IT IS IMPORTANT THAT YOU POSITION THE ROOF PANELS AS SHOWN SO THE TRIM PIECES WILL FIT CORRECTLY IN FUTURE STEPS.
  • Page 39 STEP 178 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H101117 SCREW WOODGRIP 10-16x3/4" BLK WARNING: GLOVES ARE RECOMMENDED WHEN HANDLING STEEL ROOF PIECES. NOTES: - REMOVE BLUE FILM FROM ROOF PANELS. - IT IS IMPORTANT THAT YOU POSITION THE ROOF PANELS AS SHOWN SO THE TRIM PIECES WILL FIT CORRECTLY IN FUTURE STEPS.
  • Page 40 STEP 18 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H101117 SCREWWOODGRIP 10-16x3/4"BLK A4M02738 29GA SHEETING (x4) NOTES: -REMOVE BLUE FILM FROM ROOF PANELS. - IT IS IMPORTANT THAT YOU POSITION THE ROOF PANELS AS SHOWN SO THE TRIM PIECES WILL FIT CORRECTLY IN FUTURE STEPS.
  • Page 41 STEP 19 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H101117 SCREW WOODGRIP 10-16x3/4" BLK A4M02739 29GA SHEETING (x1) NOTES: - ENSURE PANEL OVERHANGS THE BACK SIDE OF THE GAZEBO BY 1/4". - OVERLAB PANEL BY ONE RIB AS SHOWN BELOW. - DO NOT GET ON THE ROOF TO ATTACH SCREWS.
  • Page 42 A4M02736 A4M02735 A4M02734 A4M02740 2736 2734 2740 2740 2735...
  • Page 43 STEP 21 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H101116 SCREWSELP TAPPING1/4x1"BLK A4M02734 TRIM SPLICE A4M02733 TRIM SHORT (x4) (x2) LAY EDGE TRIM ON SIDE OF ROOF AS SHOWN BELOW, SLIDE EACH PIECE INTO ONE ANOTHER. FLUSH LAST PIECE WITH THE REAR EDGE OF SHEETING.
  • Page 44 STEP 22 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H101116 SCREW TAPPING 1/4x1" BLK H101117 SCREW WOODGRIP 10-16x3/4" BLK A4M02794 DRIP EDGE TRIM (x1) A4M02793 DRIP EDGE (x2) NOTE: - DRIP EDGES ARE FLUSH WITH THE EDGES OF THE GAZEBO AS SHOWN. - GENTLY LIFT ROOF SHEETS TO SLIDE DRIP EDGE UNDER.
  • Page 45 QTY PART NUMBER DESCRIPTION STEP 23 - GAZEBO ASSEMBLY H100471 LAG SCREW WH 5/16x1 1/2 BLK A4M00978 POST PLATE A4M00977 POST ANCHORING PLATE WITH FLANGE (x8) (x8) NOTES: -977 POST ANCHORING PLATES MOUNT ON OUTSIDE OF POST AS SHOWN. -978 POST PLATES GO ON INSIDE OF POST AS SHOWN. 978 (x8) POST PLATE 977 (x8)
  • Page 46 STEP 24 - GAZEBO ASSEMBLY QTY PART NUMBER DESCRIPTION H100202 SCREW PWH 8x5/8 BLK ------iTS C O � ™ A4M02158 BYD ID TAG PATIO (x1) 202 (x4) SCREW - 5/8" 2158 (x1) BYD ID TAG PATIO...
  • Page 47 STEP 25 - GAZEBO ASSEMBLY CONCRETE SCREW...

  • Page 48: Electrical Enclosure

    PowerPort™ 9205413 ELECTRICAL ENCLOSURE (x1) FOR POWERPORT INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COME PACKAGED WITH THE POWERPORT KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
