Parts Identification - Backyard Discovery PERGOLA SWING Owner's Manual

E2 - RIGHT ARM REST - W4L07340
(1)
1 3/8"x3 3/8"x26 5/8" (36x86x677)
(1)

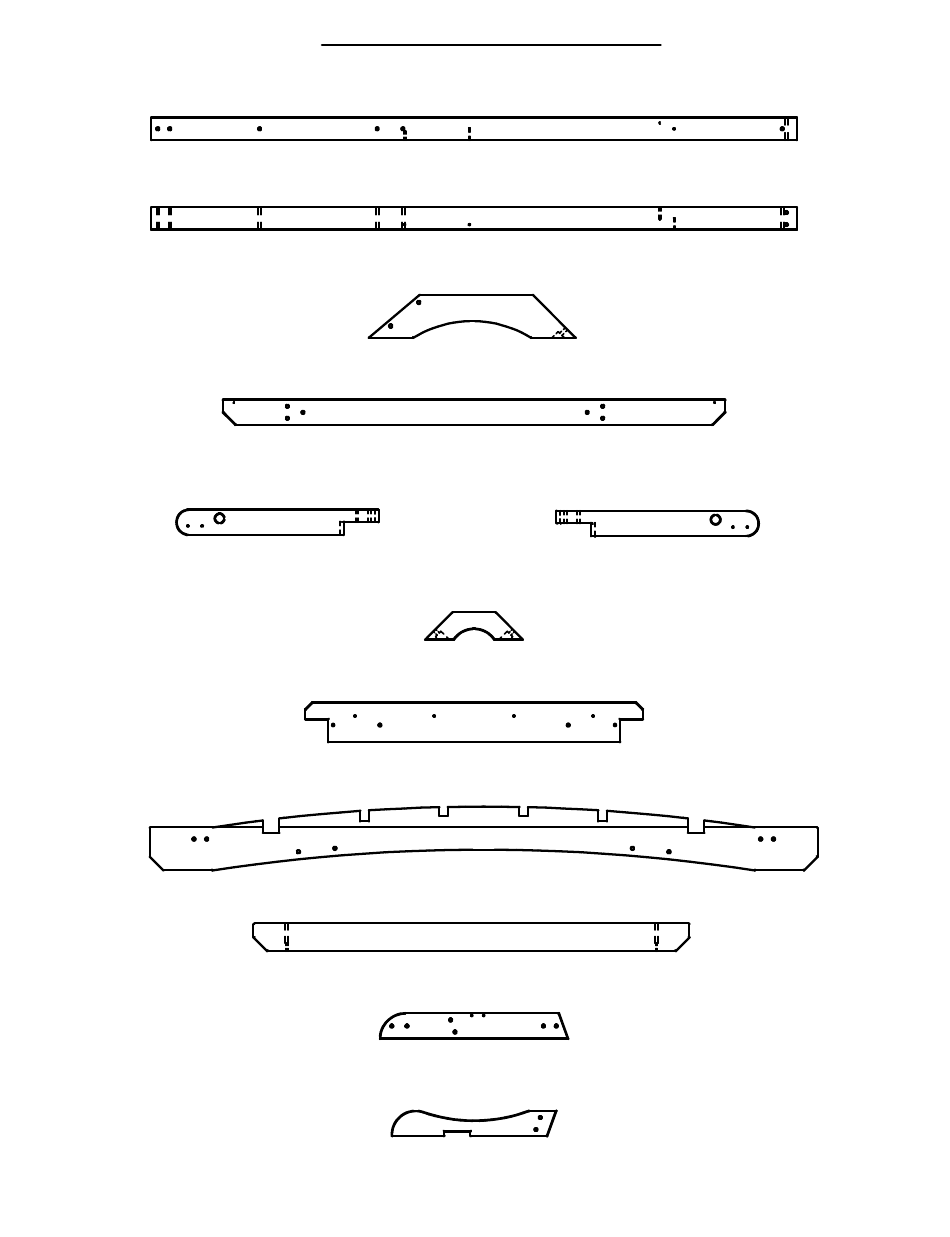

Parts Identification

Wood Components
(NOT TO SCALE)
B1 - POST - W4L07351
(2)
3"x3"x85" (76x76x2160)
B2 - POST - W4L07358
(2)
3"x3"x85" (76x76x2160)
D1 - SUPPORT BRACE - W4L07809
(4)
1 3/8"x5 1/4"x25 3/8" (36x134x646)
E1 - GROUND BOARD - W4L07353
(2)
1 3/8"x3 3/8"x66 1/8" (36x86x1680)
E4 - SHELF BRACE - W4L07416
(4)
1 3/8"x3 3/8"x12" (36x86x304.8)
G1 - SHELF - W4L07352
(2)
1"x5 1/4"x44 1/2" (24x134x1130)
H1 - ARCH RAIL - W4L07806
(2)
1"x5 1/4"x82" (24x134x2084)
H2 - CENTER RAFTER - W4L07808
(4)
1"x3 3/8"x53 1/2" (24x86x1360)
H5 - SIDE BACK RAIL - W4L07346
(2)
1"x3 3/8"x24 3/4" (24x86x630)
H8 - CENTER SEAT SUPPORT - W4L07349
1"x3 3/8"x21 3/4" (24x86x551)
E3 - LEFT ARM REST - W4L07341
(1)
1 3/8"x3 3/8"x26 5/8" (36x86x677)
