To Use Math Waveforms - Tektronix CSA8000B User Manual

f

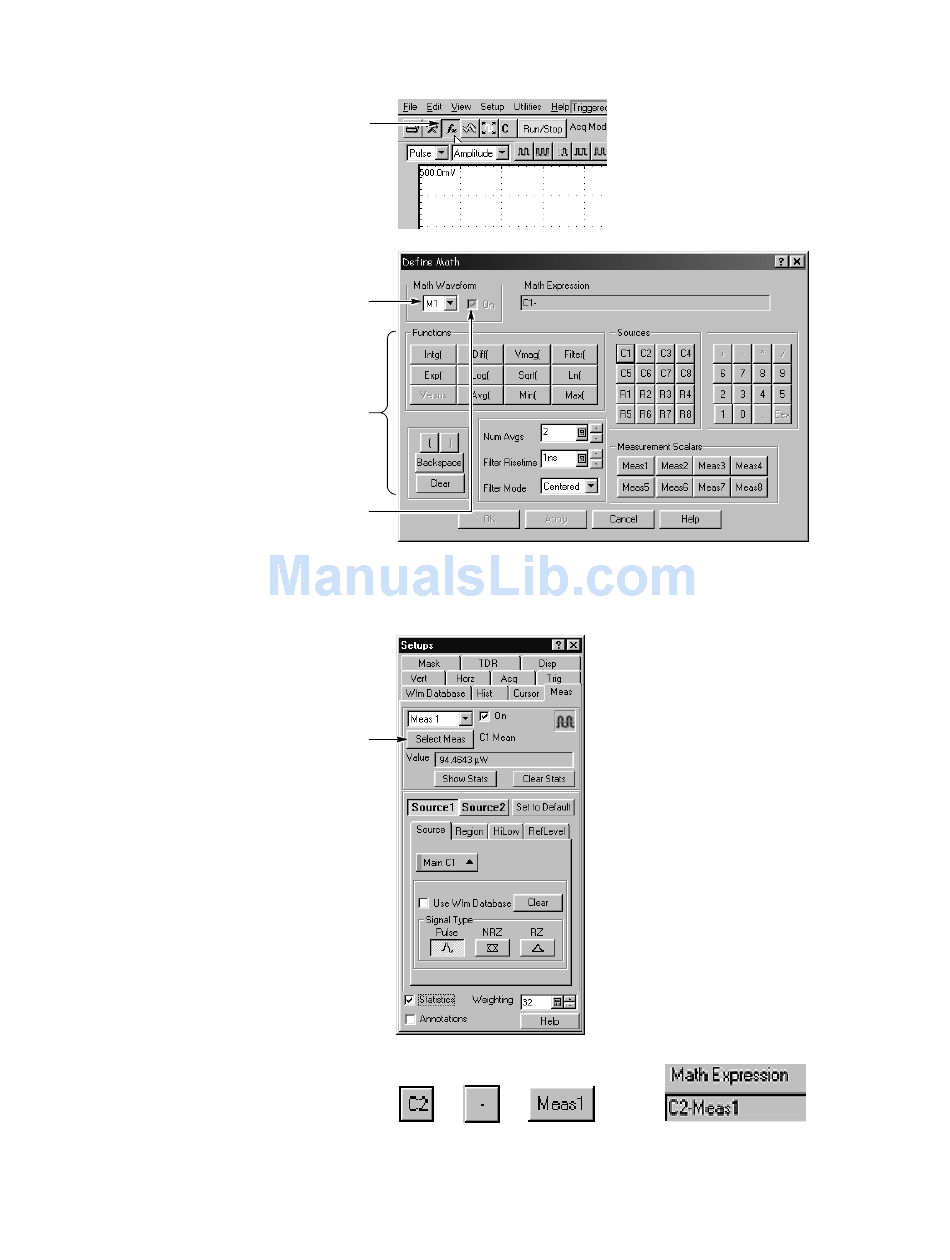

Click the button to display the
x
Define Math dialog box.
Select the math waveform you want to define.
Use the controls in the Define Math dialog
box to define the math expression. Build
the waveform expression using sources,
operators, constants, and functions.
Click to check the On box to display
the math waveform.
A Math Waveform Example
Math expressions can combine waveforms with
measurement results, as shown in this example
(C1 minus the mean value of C1).
Define Meas1 as the Mean value of
C1 in the Meas setup dialog box.
Enter this sequence in the Define
Math dialog box to build the math
waveform expression.

To Use Math Waveforms

1
2
3
4
1
2 , ,
Result:
