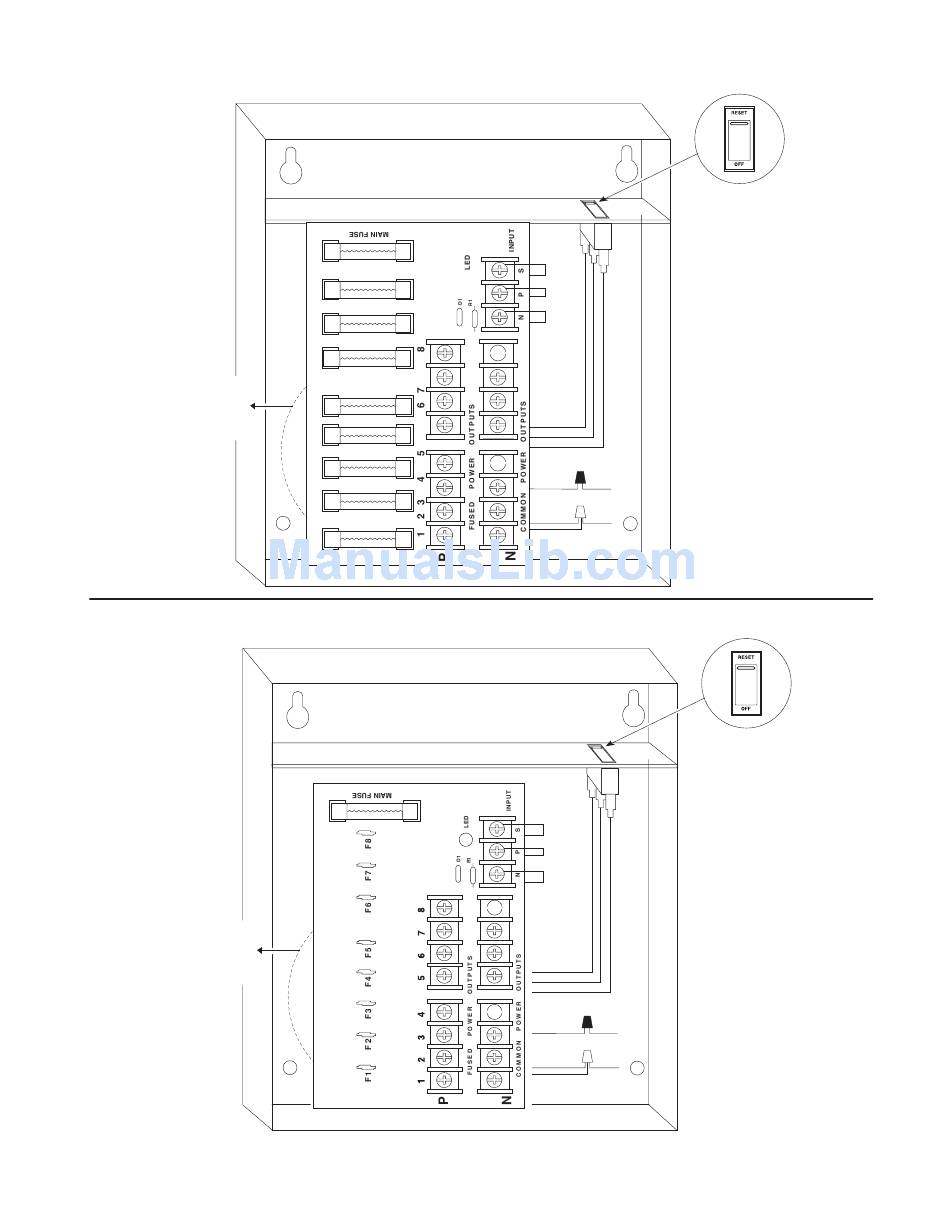

Fig. 7
ALTV248300ULM
Transformer
underneath
power supply
board
Fig. 8
ALTV248300ULCBM
Transformer
underneath
power supply
board
- 8 -
XFMR*
XFMR*
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Fig. 7a
Illuminated Power Disconnect
Circuit Breaker with manual reset
Black Lead
115VAC Input,
60 Hz.
White
Lead
Illuminated Power Disconnect
Circuit Breaker with manual reset
Black Lead
115VAC Input,
60 Hz.
White
Lead
Fig. 8a
ALTV248ULseries
