Altronix ALTV248ULCB Installation Manuals

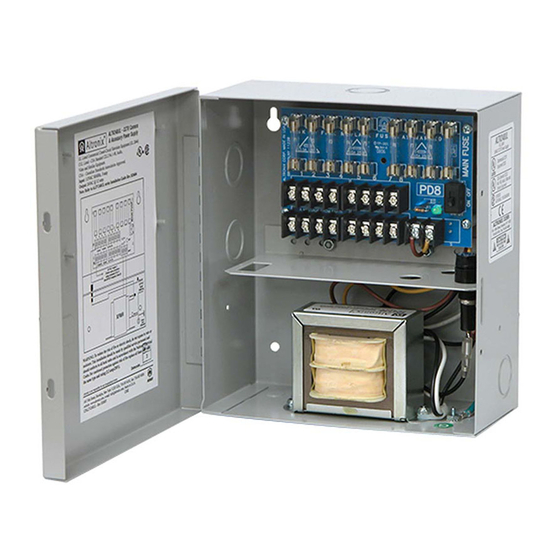

Altv248ul series cctv power supplies
Hide thumbs Also See for ALTV248ULCB:

Advertisement

Quick Links

Download this manual See also: Installation Manual
ALTV248UL Series
CCTV Power Supplies

Installation Guide

Models Include:
ALTV248UL
- 24VAC @ 3.5A (85VA)
or 28VAC @ 3A (85VA).
- Eight (8) Fuse Protected Outputs.
ALTV248175UL
- 24VAC @ 7A (175VA)
or 28VAC @ 6.25A (175VA).
- Eight (8) Fuse Protected Outputs.
ALTV248300UL
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) Fuse Protected Outputs.
ALTV248300ULM
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) Fuse Protected Outputs.
ALTV248600UL
- 24VAC @ 25A (600VA)
or 28VAC @ 20A (560VA).
- Eight (8) Fuse Protected Outputs.
Rev. 040506
ALTV248ULCB
- 24VAC @ 3.5A (85VA)
or 28VAC @ 3A (85VA).
- Eight (8) PTC Protected Outputs.
ALTV248175ULCB
- 24VAC @ 7A (175VA)
or 28VAC @ 6.25A (175VA).
- Eight (8) PTC Protected Outputs.
ALTV248300ULCB
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) PTC Protected Outputs.
ALTV248300ULCBM
- 24VAC @ 12.5A (300VA)
or 28VAC @ 10A (280VA).
- Eight (8) PTC Protected Outputs.
ALTV248600ULCB
- 24VAC @ 25A (600VA)
or 28VAC @ 20A (560VA).
- Eight (8) PTC Protected Outputs.
More than just power.
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALTV248ULCB and is the answer not in the manual?

Questions and answers

Related Manuals for Altronix ALTV248ULCB

Summary of Contents for Altronix ALTV248ULCB

  • Page 1: Installation Guide

    ALTV248UL Series CCTV Power Supplies Installation Guide Models Include: ALTV248UL ALTV248ULCB - 24VAC @ 3.5A (85VA) - 24VAC @ 3.5A (85VA) or 28VAC @ 3A (85VA). or 28VAC @ 3A (85VA). - Eight (8) Fuse Protected Outputs. - Eight (8) PTC Protected Outputs.

  • Page 2: Specifications

    Overview: Altronix ALTV248UL Series CCTV Power Supplies provide 24VAC or 28VAC distributed via eight (8) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Eight (8) Output ALTV248UL Reference Chart: Altronix Model Number 24VAC 3.5A 3.5A/...

  • Page 3: Installation Instructions

    2. Set power switch on power distribution board marked [PD] to OFF position for models ALTV248UL or ALTV248ULCB (Figs. 1a, 2a, pgs. 4, 5). Set power disconnect circuit breaker to OFF position for all other models (Figs. 3a - 10a, pgs. 6-13).
  • Page 4 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 5 Fig. 2 - ALTV248ULCB Fig. 2a Primary 24VAC or 28VAC Output 1 In-line Follow same procedure FUSED POWER OUTPUTS INPUT Fuse using terminals 2P & N through 8P & N for outputs 2 through 8) COMMON POWER OUTPUTS 24VAC configuration Class 2 Not Wet/Class 3 Wet...
  • Page 6 Fig. 3 - ALTV248175UL 24VAC or 28VAC Output 1 Follow same procedure using terminals 2P & N through FUSED POWER OUTPUTS INPUT 8P & N for outputs 2 through 8) Fig. 3a COMMON POWER OUTPUTS Class 1 Outputs Illuminated Power Disconnect Circuit Breaker with manual reset non power- limited...
  • Page 7 Fig. 4 - ALTV248175ULCB 24VAC or 28VAC Output 1 Follow same procedure using terminals 2P & N through FUSED POWER OUTPUTS INPUT 8P & N for outputs 2 through 8) Fig. 4a COMMON POWER OUTPUTS Class 2 Not Wet/Class 3 Wet Illuminated Power Disconnect Circuit Breaker with manual reset non power-...
  • Page 8 Fig. 5 - ALTV248300UL 24VAC or 28VAC Output 1 Illuminated Follow same Power Disconnect procedure Circuit Breaker FUSED POWER OUTPUTS using terminals INPUT with manual reset 2P & N through 8P & N Fig. 5a for outputs 2 COMMON POWER OUTPUTS through 8) Class 1 Outputs Black...
  • Page 9 Fig. 6 - ALTV248300ULCB 24VAC or 28VAC Output 1 Illuminated Follow same Power Disconnect procedure Circuit Breaker FUSED POWER OUTPUTS using terminals INPUT with manual reset 2P & N through 8P & N Fig. 6a for outputs 2 COMMON POWER OUTPUTS through 8) Class 2 Not Wet/Class 3 Wet Black...
  • Page 10 Fig. 7 - ALTV248300ULM Fig. 7a Illuminated Power Disconnect Circuit Breaker with manual reset Black Lead Input 115VAC, White 50/60Hz Lead Transformer underneath power distribution board Green Lead (ground) Voltage Selection Configuration 24VAC Output 28VAC Output - 10 - ALTV248UL Series...
  • Page 11 Fig. 8 - ALTV248300ULCBM Fig. 8a Illuminated Power Disconnect Circuit Breaker with manual reset Black Lead Input 115VAC, White 50/60Hz Lead Transformer underneath power distribution board Green Lead (ground) Voltage Selection Configuration 24VAC Output 28VAC Output ALTV248UL Series - 11 -...
  • Page 12 Fig. 9 - ALTV248600UL Fig. 9a Illuminated Power Disconnect Circuit Breaker with manual reset Black Lead Input 115VAC, 50/60Hz White Lead MAIN FUSE Green Lead (ground) Voltage Selection Configuration 24VAC Output 28VAC Output - 12 - ALTV248UL Series...
  • Page 13 Fig. 10 - ALTV248600ULCB Fig. 10a Illuminated Power Disconnect Circuit Breaker with manual reset Black Lead Input 115VAC, 50/60Hz White Lead MAIN FUSE Green Lead (ground) Voltage Selection Configuration 24VAC Output 28VAC Output ALTV248UL Series - 13 -...
  • Page 14 Enclosure Dimensions (H x W x D): 7.25” (184.15mm) 3.625” • ALTV248UL • ALTV248ULCB (184.15mm) 8.5” x 7.5” x 3.5” 1.25” (31.75mm) (215.9mm x 190.5mm x 88.9mm) 3.5” (88.9mm) 0.6” 0.6” 1.25” 6.05” (15.24mm) (15.24mm) (31.75mm) (153.67mm) 1.125” 1.125” (28.575mm) (28.575mm)
  • Page 15 Enclosure Dimensions (H x W x D): • ALTV248175UL • ALTV248175ULCB • ALTV248300UL • ALTV248300ULCB 12” x 7.5” x 4.5” (304.8mm x 190.5mm x 114.3mm) 7.5” (190.5mm) 4.5” (114.3mm) 1.25” 0.5” 0.5” 1.25” (31.75mm) (12.7mm) (12.7mm) (31.75mm) 1.11” 1.11” 1.5” 1.5”...
  • Page 16 (267mm) (25mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIALTV248UL Series D03R...
