Altronix ALTV248UL Installation Manuals page 7

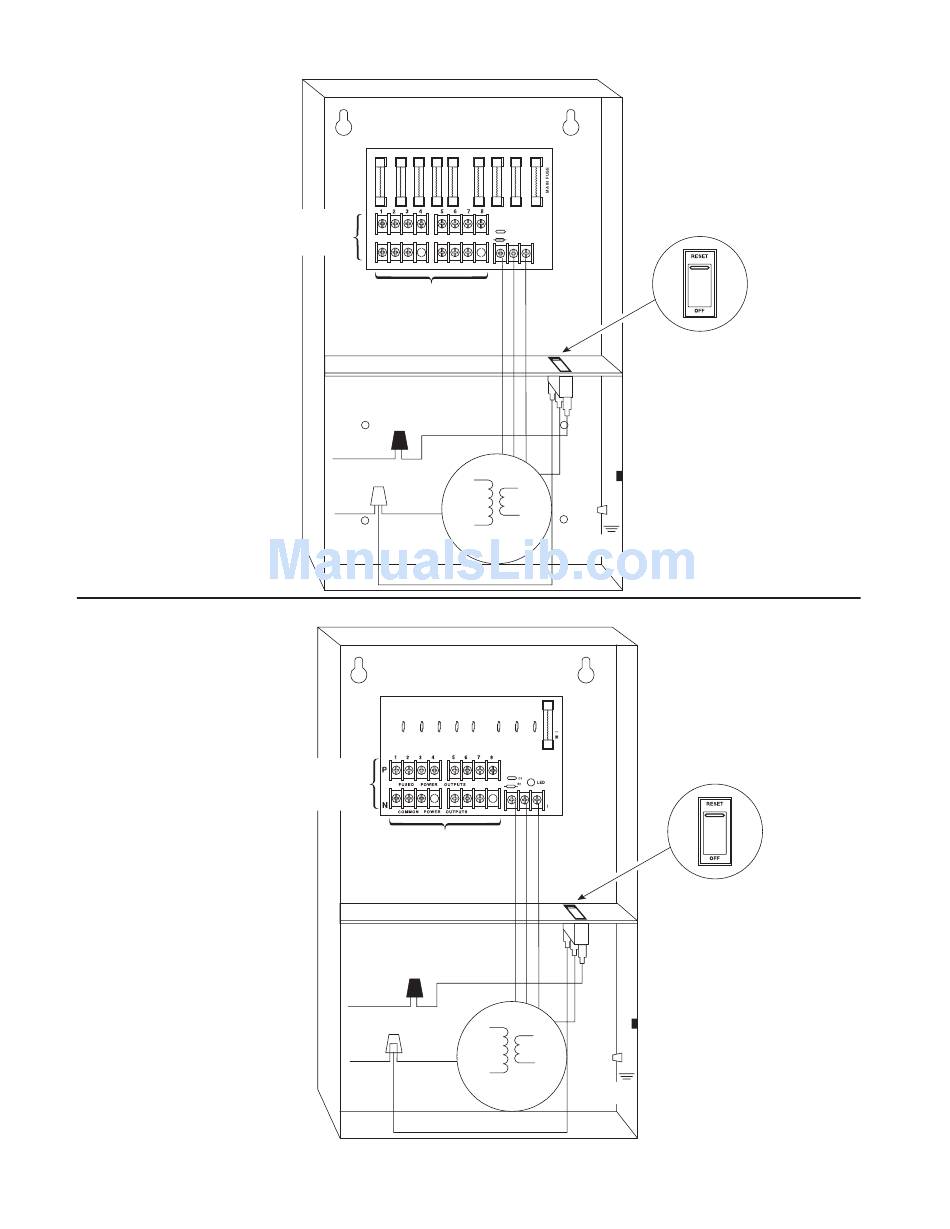

Fig. 5
ALTV248300UL
Fig. 6
ALTV248300ULCB
ALTV248ULseries
24VAC or 28VAC
output 1 (Follow P
same procedure using
terminals 2P & N
F U S E D P O W E R O U T P U T S
through 8P & N
outputs 2 through 8)
N
C O M M O N P O W E R O U T P U T S
Class 1 Outputs
115VAC input
60 Hz
White Lead
24VAC or 28VAC
output 1
(Follow same
procedure using
terminals 2P & N
through 8P & N
outputs 2 through 8)
Class 2 Not Wet/Class 3 Wet
115VAC input
60 Hz
White Lead
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
D1
LED
R1
INPUT
N P S
non power-
limited
Illuminated Power Disconnect
Circuit Breaker with manual reset
XFMR*
Green
Lead
(ground)
non-power
limited
Illuminated Power Disconnect
Circuit Breaker with manual reset
XFMR*
Green
Lead
(ground)
Fig. 5a
Fig. 6a
- 7 ­
