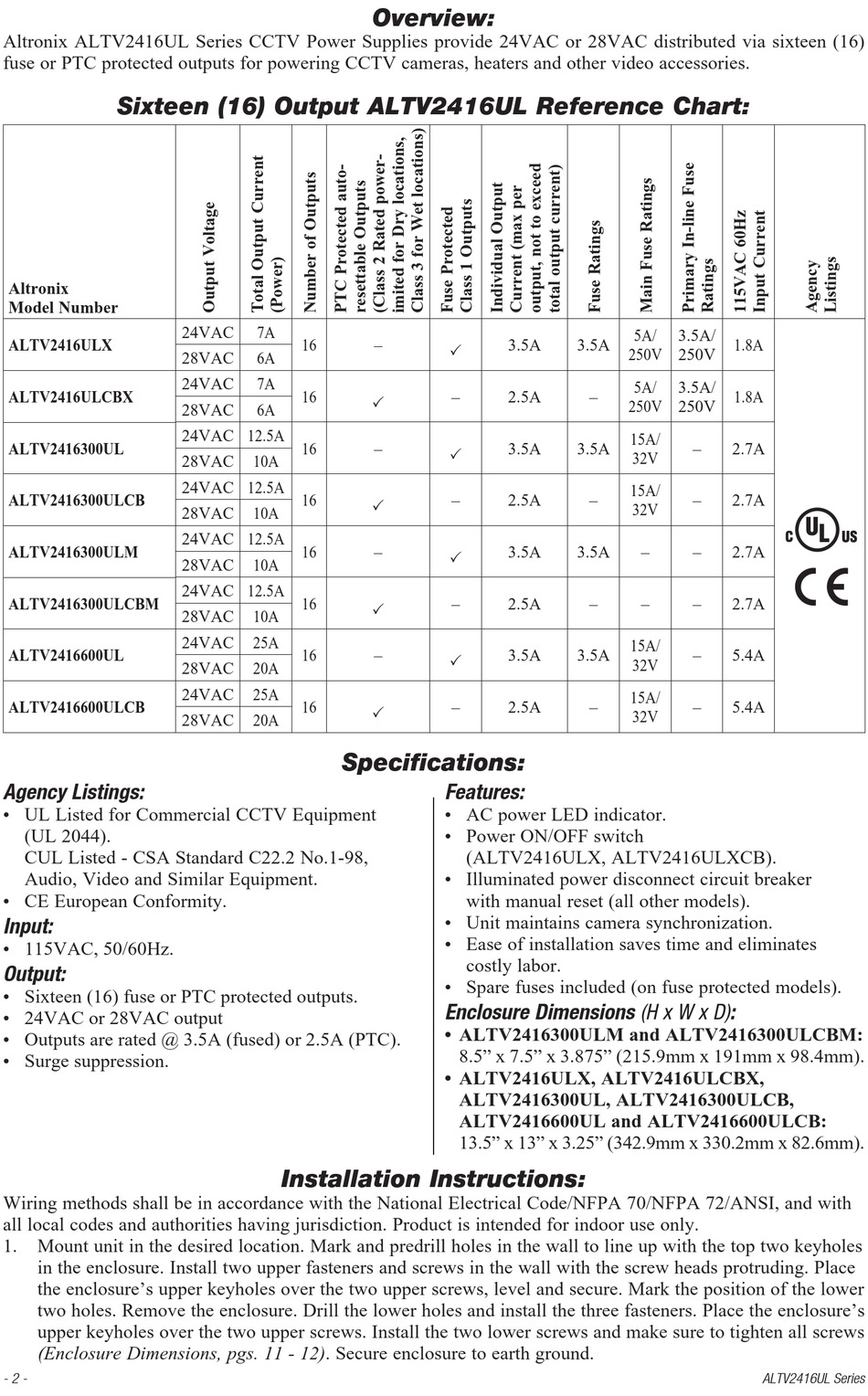

Specifications; Installation Instructions - Altronix ALTV2416300UL Installation Manuals

Altronix ALTV2416UL Series CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16)
fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories.
Sixteen (16) Output ALTV2416UL Reference Chart:
Altronix
Model Number
ALTV2416ULX
ALTV2416ULCBX
ALTV2416300UL
ALTV2416300ULCB
ALTV2416300ULM
ALTV2416300ULCBM
ALTV2416600UL
ALTV2416600ULCB
Agency Listings:
• UL Listed for Commercial CCTV Equipment
(UL 2044).
CUL Listed - CSA Standard C22.2 No.1-98,
Audio, Video and Similar Equipment.
• CE European Conformity.
Input:
• 115VAC, 50/60Hz.
Output:
• Sixteen (16) fuse or PTC protected outputs.
• 24VAC or 28VAC output
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Surge suppression.
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/NFPA 72/ANSI, and with
all local codes and authorities having jurisdiction. Product is intended for indoor use only.
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes
in the enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place
the enclosure's upper keyholes over the two upper screws, level and secure. Mark the position of the lower
two holes. Remove the enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's
upper keyholes over the two upper screws. Install the two lower screws and make sure to tighten all screws
(Enclosure Dimensions, pgs. 11 - 12). Secure enclosure to earth ground.
- 2 -
24VAC 7A
16
28VAC 6A
24VAC 7A
16
28VAC 6A
24VAC 12.5A
16
28VAC 10A
24VAC 12.5A
16
28VAC 10A
24VAC 12.5A
16
28VAC 10A
24VAC 12.5A
16
28VAC 10A
24VAC 25A
16
28VAC 20A
24VAC 25A
16
28VAC 20A

Specifications:

Installation Instructions:

Overview:
– 3.5A
P
– 2.5A
P
– 3.5A
P
– 2.5A
P
– 3.5A
P
– 2.5A
P
– 3.5A
P
– 2.5A
P
Features:
• AC power LED indicator.
• Power ON/OFF switch
(ALTV2416ULX, ALTV2416ULXCB).
• Illuminated power disconnect circuit breaker
with manual reset (all other models).
• Unit maintains camera synchronization.
• Ease of installation saves time and eliminates
costly labor.
• Spare fuses included (on fuse protected models).
Enclosure Dimensions (H x W x D):
• ALTV2416300ULM and ALTV2416300ULCBM:
8.5" x 7.5" x 3.875" (215.9mm x 191mm x 98.4mm).
• ALTV2416ULX, ALTV2416ULCBX,
ALTV2416300UL, ALTV2416300ULCB,
ALTV2416600UL and ALTV2416600ULCB:
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.6mm).
5A/ 3.5A/
3.5A 1.8A
250V 250V
5A/ 3.5A/
– 1.8A
250V 250V
15A/
3.5A – 2.7A
32V
15A/
– – 2.7A
32V
3.5A – – 2.7A
– – – 2.7A
15A/
3.5A – 5.4A
32V
15A/
– – 5.4A
32V
ALTV2416UL Series
