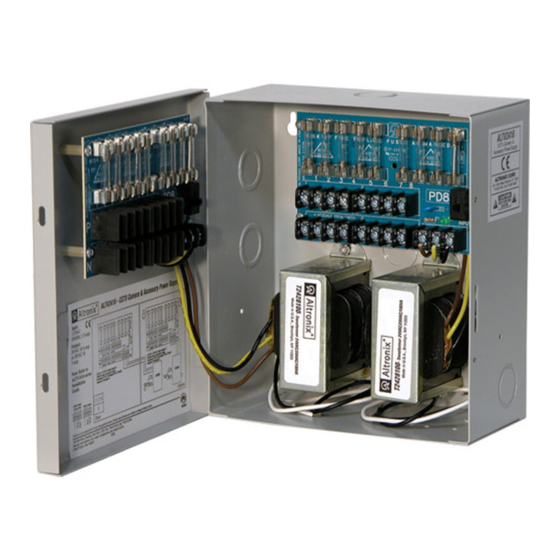

ALTV2416220 Series
16-Output CCTV Power Supplies
Models Include:
ALTV2416220
- 24VAC @ 8A (200VA) or
28VAC @ 7A (200VA).
- Sixteen (16) Fuse Protected Outputs.
ALTV2416350220
- 24VAC @ 14A (350VA) or
28VAC @ 12.5A (350VA).
- Sixteen (16) Fuse Protected Outputs.
ALTV2416300M220
- 24VAC @ 12.5A (300VA) or
28VAC @ 10A (300VA).
- Sixteen (16) Fuse Protected Outputs.
ALTV2416600220
- 24VAC @ 28A (700VA) or
28VAC @ 25A (700VA).
- Sixteen (16) Fuse Protected Outputs.
Installation Guide
Rev. 120105
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
ALTV2416CB220
- 24VAC @ 8A (200VA) or
28VAC @ 7A (200VA).
- Sixteen (16) PTC Protected Outputs.
ALTV2416350CB220
- 24VAC @ 14A (350VA) or
28VAC @ 12.5A (350VA).
- Sixteen (16) PTC Protected Outputs.
ALTV2416300CBM220
- 24VAC @ 12.5A (300VA) or
28VAC @ 10A (300VA).
- Sixteen (16) PTC Protected Outputs.
ALTV2416600CB220
- 24VAC @ 28A (700VA) or
28VAC @ 25A (700VA).
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix ALTV2416220 Series
Summary of Contents for Altronix ALTV2416220 Series
- Page 1 ALTV2416220 Series 16-Output CCTV Power Supplies Models Include: ALTV2416220 ALTV2416CB220 - 24VAC @ 8A (200VA) or - 24VAC @ 8A (200VA) or 28VAC @ 7A (200VA). 28VAC @ 7A (200VA). - Sixteen (16) Fuse Protected Outputs. - Sixteen (16) PTC Protected Outputs.
-
Page 2: Specifications
Overview: Altronix ALTV2416220 Series CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen(16) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Sixteen (16) Output ALTV2416220 Reference Chart: Altronix Model Number 24VAC ALTV2416220 –... -
Page 3: Installation Instructions
Electrical Code and all local codes. Terminal Identification: PD8/PD8CB - Distribution Module 1P - 8P AC output. 1N - 4N AC output. PD16W/PD16WCB - Distribution Module 1P - 16P AC output. 1N - 16N AC output. ALTV2416220 Series Installation Guide - 3 -... - Page 4 ALTV2416CB220 FUSED POWER OUTPUTS INPUT FUSED POWER OUTPUTS INPUT COMMON POWER OUTPUTS COMMON POWER OUTPUTS 250V Input 220VAC 50/60Hz, 0.5A Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 4 - ALTV2416220 Series Installation Guide...
- Page 5 Fig. 2 - ALTV2416350220 and ALTV2416350CB220 PTCs used on ALTV2416175CB220 MAIN FUSE Illuminated Power Switch 250V Input 220VAC 50/60Hz, 1.5A Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV2416220 Series Installation Guide - 5 -...
- Page 6 4 5 6 7 8 12 13 COMMON OUTPUTS PROTECTED OUTPUTS PTCs used on ALTV2416300CBM220 250V Input 220VAC PD16W 50/60Hz, 1.5A 3.5A 250V Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) - 6 - ALTV2416220 Series Installation Guide...
- Page 7 Fig. 4 - ALTV2416600220 and ALTV2416600CB220 PTCs used on ALTV2416600CB220 Illuminated MAIN FUSE Power Switch 250V Input 220VAC, 50/60Hz, 3A Voltage Selection Configuration 24VAC Output (Yellow) (Black) 28VAC Output (Black) (Yellow) ALTV2416220 Series Installation Guide - 7 -...
- Page 8 (servicing) instructions in the literature accompanying the appliance. CAUTION: To reduce the risk of electric shock do not open enclosure. There are no user serviceable parts inside. Refer servicing to qualified service personnel. - 8 - ALTV2416220 Series Installation Guide...
- Page 9 Notes: ALTV2416220 Series Installation Guide - 9 -...
- Page 10 (31.8mm) 1.25” 0.6” (15.2mm) 0.6” (15.2mm) (31.75mm) 6.05” (153.7mm) 1.125” 1.125” (28.6mm) (28.6mm) 1” 1” (25.4mm) (25.4mm) 6.05” (153.7mm) 1.25” 0.6” (15.2mm) 0.6” (15.2mm) (31.75mm) 1” (25.4mm) 5.25” (133.35mm) 1” 1” (25.4mm) (25.4mm) - 10 - ALTV2416220 Series Installation Guide...
- Page 11 8.5” x 7.5” x 3.875” (215.9mm x 191mm x 98.4mm) 3.63” (92.2mm) 1.25” (31.75mm) 7.25” (184.15mm) 0.6” (15.24mm) 0.6” (15.24mm) 1.25” (31.75mm) 1.25” (31.75mm) 1.25” (31.75mm) 0.6” (15.24mm) 0.6” (15.24mm) 3.85” (97.79mm) 1” (25.4mm) 1” (25.4mm) ALTV2416220 Series Installation Guide - 11 -...
- Page 12 1.0” (25.4mm) 1.0” 1.0” 10.5” (266.7mm) (25.4mm) (25.4mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty MEMBER IIALTV2416220 Series...
