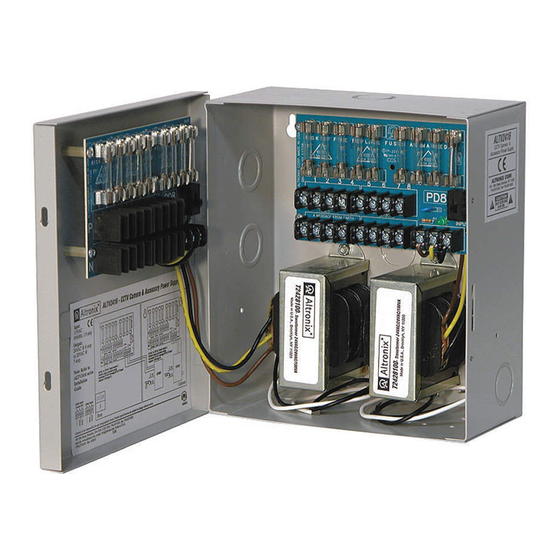

ALTV2416 Series
CCTV Power Supplies

Installation Guide

Models Include:
• ALTV2416
- 24VAC @ 8 amp (200VA).
- Sixteen (16) Fuse Protected Outputs.
• ALTV2416350
- 24VAC @ 14 amp (350VA)
or 28VAC @ 12.5 amp (350VA).
- Sixteen (16) Fuse Protected Outputs.
• ALTV2416300M
- 24VAC @ 12.5 amp (300VA)
or 28VAC @ 10 amp (300VA).
- Sixteen (16) Fuse Protected Outputs.
• ALTV2416600
- 24VAC @ 28 amp (700VA)
or 28VAC @ 25 amp (700VA).
- Sixteen (16) Fuse Protected Outputs.
• ALTV2416CB
- 24VAC @ 8 amp (200VA).
- Sixteen (16) PTC Protected Outputs.
• ALTV2416350CB
- 24VAC @ 14 amp (350VA)
or 28VAC @ 12.5 amp (350VA).
- Sixteen (16) PTC Protected Outputs.
• ALTV2416300CBM
- 24VAC @ 12.5 amp (300VA)
or 28VAC @ 10 amp (300VA).
- Sixteen (16) PTC Protected Outputs.
• ALTV2416600CB
- 24VAC @ 28 amp (700VA)
or 28VAC @ 25 amp (700VA).
- Sixteen (16) PTC Protected Outputs.
Rev. 021804

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALTV2416 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix ALTV2416 Series

Summary of Contents for Altronix ALTV2416 Series

  • Page 1: Installation Guide

    ALTV2416 Series CCTV Power Supplies Installation Guide Models Include: • ALTV2416 • ALTV2416CB - 24VAC @ 8 amp (200VA). - 24VAC @ 8 amp (200VA). - Sixteen (16) Fuse Protected Outputs. - Sixteen (16) PTC Protected Outputs. • ALTV2416350 • ALTV2416350CB...

  • Page 2: Specifications

    Overview: These Altronix CCTV Power Supplies provide 24VAC/28VAC (ALTV2416 and ALTV2416CB is 24VAC only) distrib- uted via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. Sixteen (16) Output ALTV2416 Reference Chart: Altronix...

  • Page 3: Installation Instructions

    Installation Instructions: 1. Mount unit in desired location. 2. Slide switch on PD board to OFF position for models ALTV2416 and ALTV2416CB (Fig. 1, pg. 4). Turn OFF main switch on all other models (Figs. 2-4, pgs. 4-6). 3. All units are factory set for 24VAC operation. For 28VAC operation (for models with 24VAC/28VAC option only), adjust unit prior to mounting and applying power as follows: Change the wire position so that the black wire [28V] is connected to the terminal marked [P] and the yellow wire [24V] is connected to the terminal marked [S].

  • Page 4: Enclosure Door

    Lead Enclosure Door Back Panel of Enclosure Fig. 2 ALTV2416350 • ALTV2416350CB Used on PTC Models (example: ALTV2416350CB) ALTRONIX CORP. MADE IN USA ALTRONIX CORP. MADE IN USA BROOKLYN, NY 11220 BROOKLYN, NY 11220 Power MAIN FUSE Switch Black Lead Terminal Blocks for Fig.
  • Page 5 Fig. 3 ALTV2416300M • ALTV2416300CBM Power Switch Used on PTC Models (example: ALTV2416300CBM) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 common common outputs...
  • Page 6 Fig. 4 ALTV2416600 • ALTV2416600CB Used on PTC Models (example: ALTV2416600CB) ALTRONIX CORP. MADE IN USA BROOKLYN, NY 11220 Power Switch 115VAC input, XFMR* XFMR* 50/60 Hz. Black Lead White Lead Terminal Blocks for Fig. 4 24VAC or 28VAC Input:...
  • Page 7 Enclosure Dimensions for: • ALTV2416 • ALTV2416CB • ALTV2416300M • ALTV2416300CBM 8.5"H x 7.5"W x 3.5"D TOP ONLY - 7 -...
  • Page 8 11.66" 12.1" 13" Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. II1ALTV2416Series A17D MEMBER - 8 -...
