Installation Manual

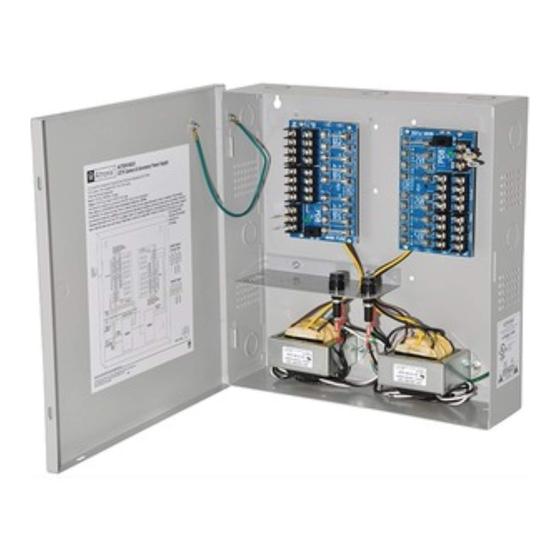

ALTV2416UL Series
CCTV Power Supplies
Installation Guide
Models Include:
• ALTV2416ULX
- 24VAC @ 7 amp (170VA)
or 28VAC @ 6 amp (170VA).
- Sixteen (16) Fuse Protected Outputs.
• ALTV2416300UL
- 24VAC @ 12.5 amp (300VA)
or 28VAC @ 10 amp (280VA).
- Sixteen (16) Fuse Protected Outputs.
• ALTV2416300ULM
- 24VAC @ 12.5 amp (300VA)
or 28VAC @ 10 amp (280VA).
- Sixteen (16) Fuse Protected Outputs.
• ALTV2416600UL
- 24VAC @ 25 amp (600VA)
or 28VAC @ 20 amp (560VA).
- Sixteen (16) Fuse Protected Outputs.
• ALTV2416ULCBX
- 24VAC @ 7 amp (170VA)
or 28VAC @ 6 amp (170VA).
- Sixteen (16) PTC Protected Outputs.
• ALTV2416300ULCB
- 24VAC @ 12.5 amp (300VA)
or 28VAC @ 10 amp (280VA).
- Sixteen (16) PTC Protected Outputs.
• ALTV2416300ULCBM
- 24VAC @ 12.5 amp (300VA)
or 28VAC @ 10 amp (280VA).
- Sixteen (16) PTC Protected Outputs.
• ALTV2416600ULCB
- 24VAC @ 25 amp (600VA)
or 28VAC @ 20 amp (560VA).
- Sixteen (16) PTC Protected Outputs.
Rev. 040506
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix ALTV2416ULX
Summary of Contents for Altronix ALTV2416ULX
-
Page 1: Installation Guide
ALTV2416UL Series CCTV Power Supplies Installation Guide Models Include: • ALTV2416ULX • ALTV2416ULCBX - 24VAC @ 7 amp (170VA) - 24VAC @ 7 amp (170VA) or 28VAC @ 6 amp (170VA). or 28VAC @ 6 amp (170VA). - Sixteen (16) Fuse Protected Outputs. -
Page 2: Specifications
Overview: These Altronix CCTV Power Supplies provide 24VAC/28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. Sixteen (16) Output ALTV2416UL Reference Chart: Altronix Model Number ALTV2416ULX 24VAC 7 amp - - - - - - 3.5 amp... -
Page 3: Terminal Identification
2. Set power switch on power distribution board marked [PD] to OFF position for models ALTV2416ULX or ALTV2416ULCBX (Figs. 1, 2, pgs. 4, 5). Set power disconnect circuit breaker to OFF position for all other models (Figs. 3a-8a, pgs. 6-10). - Page 4 CAUTION: To reduce the risk of electric shock do not open enclosure. There are no user serviceable parts inside. Refer servicing to qualified service personnel. Fig. 1 ALTV2416ULX 24VAC or 28VAC output 1 (Follow same procedure using terminals 2P & N through 8P & N...
- Page 5 Fig. 2 ALTV2416ULCBX 24VAC or 28VAC output 1 (Follow same procedure using terminals 2P & N through 8P & N outputs 2 through 8) Connected to Door 24VAC configuration Class 2 Not Wet/ Class 3 Wet 28VAC configuration Class 1 24VAC configuration Class 2 Not Wet/...
- Page 6 Fig. 3 ALTV2416300UL 24VAC or 28VAC output 1 (Follow same procedure using terminals 2P & N through 8P & N outputs 2 through 8) Connected to Door Class 1 Outputs Class 1 Outputs MAIN FUSE 24VAC or 28VAC output 1 (Follow same procedure using terminals 2P &...
- Page 7 Fig. 4 ALTV2416300ULCB 24VAC or 28VAC output 1 (Follow same procedure using terminals 2P & N through 8P & N outputs 2 through 8) Connected to Door 24VAC configuration Class 2 Not Wet/ Class 3 Wet 24VAC configuration Class 2 Not Wet/ Class 3 Wet MAIN FUSE 24VAC or 28VAC...
- Page 8 Fig. 5 Fig. 5a ALTV2416300ULM Illuminated Power Disconnect Circuit Breaker with manual reset 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 common outputs protected outputs Transformer underneath XFMR* power supply board For continuous protection against risk of fire replace fuses with same type and rating.
- Page 9 Fig. 7 ALTV2416600UL 24VAC or 28VAC output 1 (Follow same procedure using terminals 2P & N through 8P & N outputs 2 through 8) Connected to Door Class 1 Outputs Class 1 Outputs MAIN FUSE 24VAC or 28VAC output 1 (Follow same procedure using terminals 2P &...
- Page 10 Fig. 8 ALTV2416600ULCB 24VAC or 28VAC output 1 (Follow same procedure using terminals 2P & N through 8P & N outputs 2 through 8) Connected to Door 24VAC configuration Class 2 Not Wet/ Class 3 Wet 24VAC configuration Class 2 Not Wet/ Class 3 Wet MAIN FUSE 24VAC or 28VAC...
- Page 11 Enclosure Dimensions for: • ALTV2416300ULM • ALTV2416300ULCBM 3.63" 8.5”H x 7.5”W x 3.75”D 1.25" 3.85" 7.25" 1.25" 0.60" 0.60" 1.25" 0.90" 0.90" 1.00" 1.00" 8.13" 8.13" 8.13" 1.75" 1.00" 1.00" 1.25" 0.60" 0.60" 3.85" 7.25" 3.85" 1.00" 1.00" 1.00" 7.25" ALTV2416UL Series - 11 -...
- Page 12 13.5”H x 13”W x 3.5”D Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER II1ALTV2416ULSeries G16L - 12 -...
