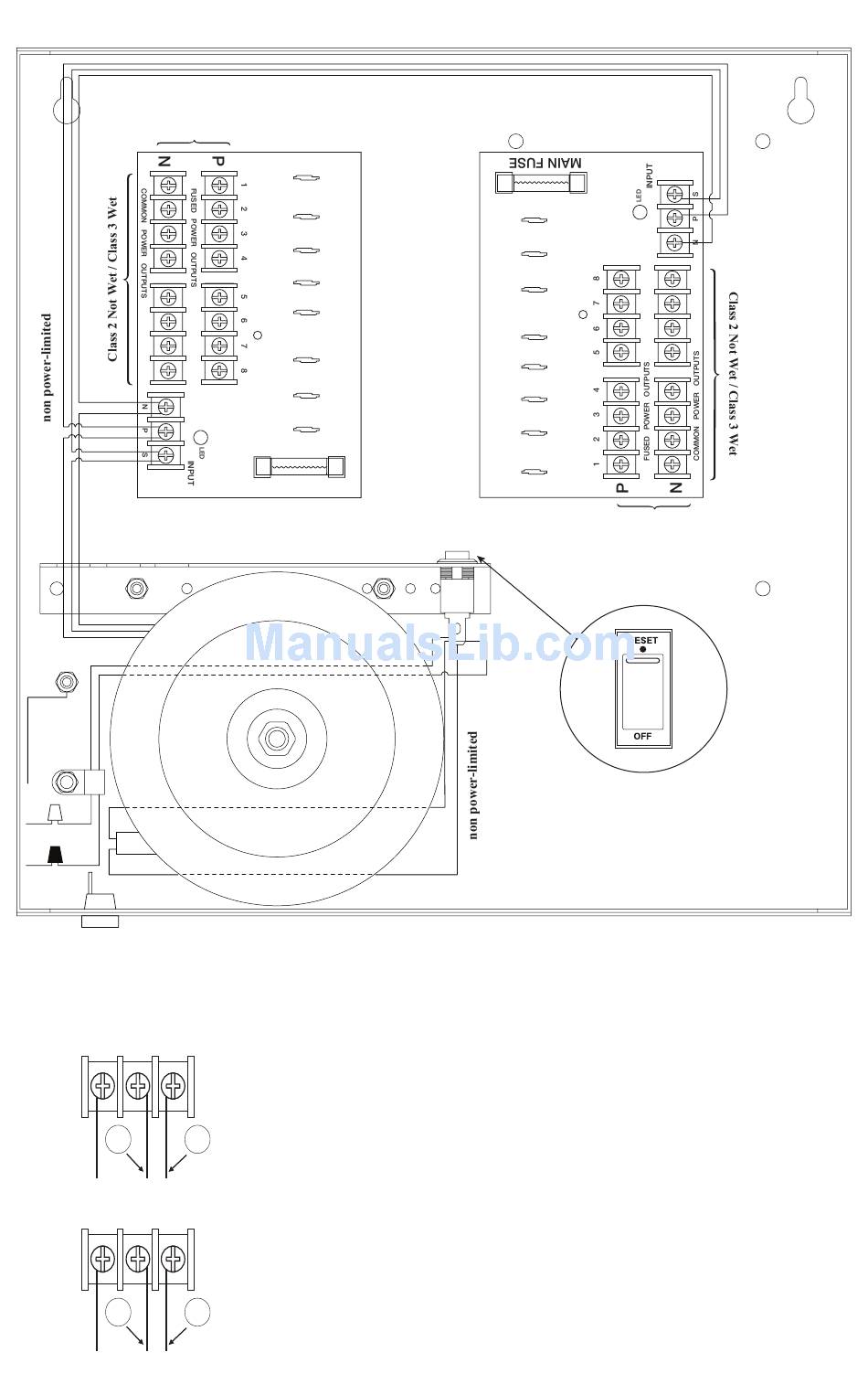

Fig. 4 - ALTV2416300ULCB
24VAC or 28VAC Output 1
Follow same procedure using terminals 2P & N
through 8P & N for outputs 2 through 8)
Green Lead
(ground)
Input
115VAC,
50/60Hz
White Lead
Black Lead
Voltage Selection
Configuration
N P
24VAC
Output
24V
N P
28VAC
Output
28V
ALTV2416UL Series
MAIN FUSE
S
28V
S
24V
24VAC or 28VAC Output 1
Follow same procedure using terminals 2P & N
through 8P & N for outputs 2 through 8)
Illuminated Power Disconnect
Circuit Breaker with manual reset
Fig. 4a
