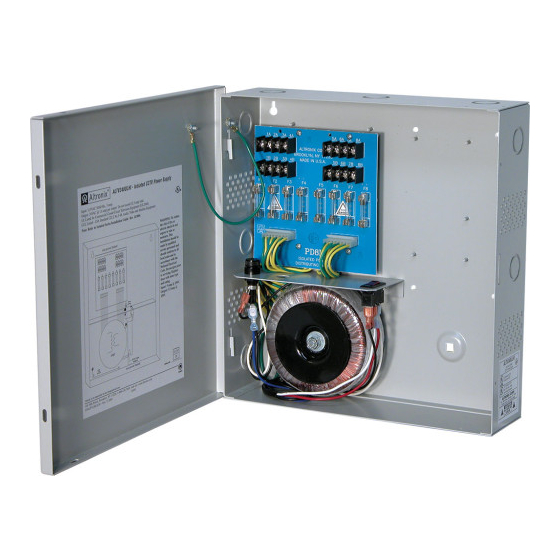

Altronix ALTV248Hi220 Installation Manual
  1. Manuals
  2. Brands
  3. Altronix Manuals
  4. Power Supply
  5. ALTV248Hi220
  6. Installation manual

Altronix ALTV248Hi220 Installation Manual

220 isolated series cctv power supplies
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

220 Isolated Series
CCTV Power Supplies

Installation Guide

Models Include:
• ALTV248Hi220
- 24VAC @ 14A total output.
- Eight (8) 1.75A Fuse Protected
Isolated Outputs.
• ALTV248Mi220
- 24VAC @ 12.5A total output.
- Eight (8) 1.6A Fuse Protected
Isolated Outputs.
• ALTV2416i220
- 24VAC @ 28A total output.
- Sixteen (16) 1.75A Fuse Protected
Isolated Outputs.
• ALTV248CBHi220
- 24VAC @ 14A total output.
- Eight (8) 1.75A PTC Protected
Isolated Outputs.
• ALTV248CBMi220
- 24VAC @ 12.5A total output.
- Eight (8) 1.6A PTC Protected
Isolated Outputs.
• ALTV2416CBi220
- 24VAC @ 28A total output.
- Sixteen (16) 1.75A PTC Protected
Isolated Outputs.
Rev. 041112

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALTV248Hi220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altronix ALTV248Hi220

Summary of Contents for Altronix ALTV248Hi220

  • Page 1: Installation Guide

    220 Isolated Series CCTV Power Supplies Installation Guide Models Include: • ALTV248Hi220 • ALTV248CBHi220 - 24VAC @ 14A total output. - 24VAC @ 14A total output. - Eight (8) 1.75A Fuse Protected - Eight (8) 1.75A PTC Protected Isolated Outputs.

  • Page 2: Specifications

    Overview: Altronix Isolated CCTV Power Supplies provide 24VAC distributed via eight (8) or sixteen (16) fuse or PTC protected isolated outputs for powering CCTV cameras, heaters, and other video accessories. 220 Isolated Power Supply Reference Chart: Total Output Output PTC Protected...
  • Page 3 ALTV248Hi220 • ALTV248CBHi220 Fig. 1 - Used on PTC Models (example: ALTV248CBHI220) Power Switch XFMR* 220VAC input Green Lead 50/60 Hz. (ground) WARNING: Change fuses with the same type and rating. Output: 3.5A @ 250V IIisolated 220 series - 3 -...
  • Page 4 ALTV248Mi220 • ALTV248CBMi220 Fig. 2 - Power Switch Used on PTC Models (example: ALTV248CBMI220) Transformer underneath power supply board WARNING: Change fuses with the same type and ratng. Output: 3.5A @ 250V - 4 - IIisolated 220 series...
  • Page 5 ALTV2416i220 • ALTV2416CBi220 Fig. 3 - Used on PTC Models (example: ALTV2416CBI220) Power Switch XFMR* XFMR* 220VAC Green input Lead (ground) 50/60 Hz. WARNING: Change fuses with the same type and rating. Output: 3.5A @ 250V IIisolated 220 series - 5 -...
  • Page 6 Enclosure Dimensions for: • ALTV248Mi220 • ALTV248CBMi220 8.5” x 7.5” x 3.5” (215.9mm x 190.5mm x 88.9mm) 7.25” (184.15mm) 3.625” (184.15mm) 1.25” (31.75mm) 3.5” (88.9mm) 0.6” 0.6” 1.25” 6.05” (15.24mm) (15.24mm) (31.75mm) (153.67mm) 1.125” 1.125” (28.575mm) (28.575mm) 2” (50.8mm) 2” (50.8mm) 8.125”...
  • Page 7 Enclosure Dimensions for: • ALTV248Hi220 • ALTV248CBHi220 • ALTV2416i220 • ALTV2416CBi220 13.5” x 13” x 3.25” (342.9mm x 330.2mm x 82.55mm) 1.40” 4.85” 4.85” 1.40” (36mm) (123mm) (123mm) (36mm) 1.20” (31mm) 3.25” (83mm) 12.5” (318mm) 1.20” 1.20” 0.75” 0.75” (31mm) 11.0”...
  • Page 8 Notes Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER Isolated 220 Series...

This manual is also suitable for:

Altv2416i220Altv248cbhi220Altv248cbmi220Altv248mi220Altv2416cbi220
