10.0 Meaning of LED's

energy, you can switch off the unit by pressing the button again.
The second LED (yellow) only lights when the SmartCD is connected to the computer
by USB for charging purposes and at least one of the batteries requires charging.
The third LED (green) only lights when radio communication is established between
the SmartCD and a relevant lock (e.g. for programming, retrieval).
The fourth LED (blue) lights when using the Bluetooth interface; it remains lit for the
duration of the programming, retrieval or reset procedure and goes out again
afterwards.

11.0 Items supplied

SmartCD
Two batteries of type US14500V (installed)
Cable for connecting to a USB interface
CD-ROM containing USB drivers
SimonsVoss LDB software (or SmartLSM for mobile on-site programming) is also
needed to use the SmartCD. These are not supplied; they must be purchased
separately.
Before start-up, please read the PDA manufacturer manual.

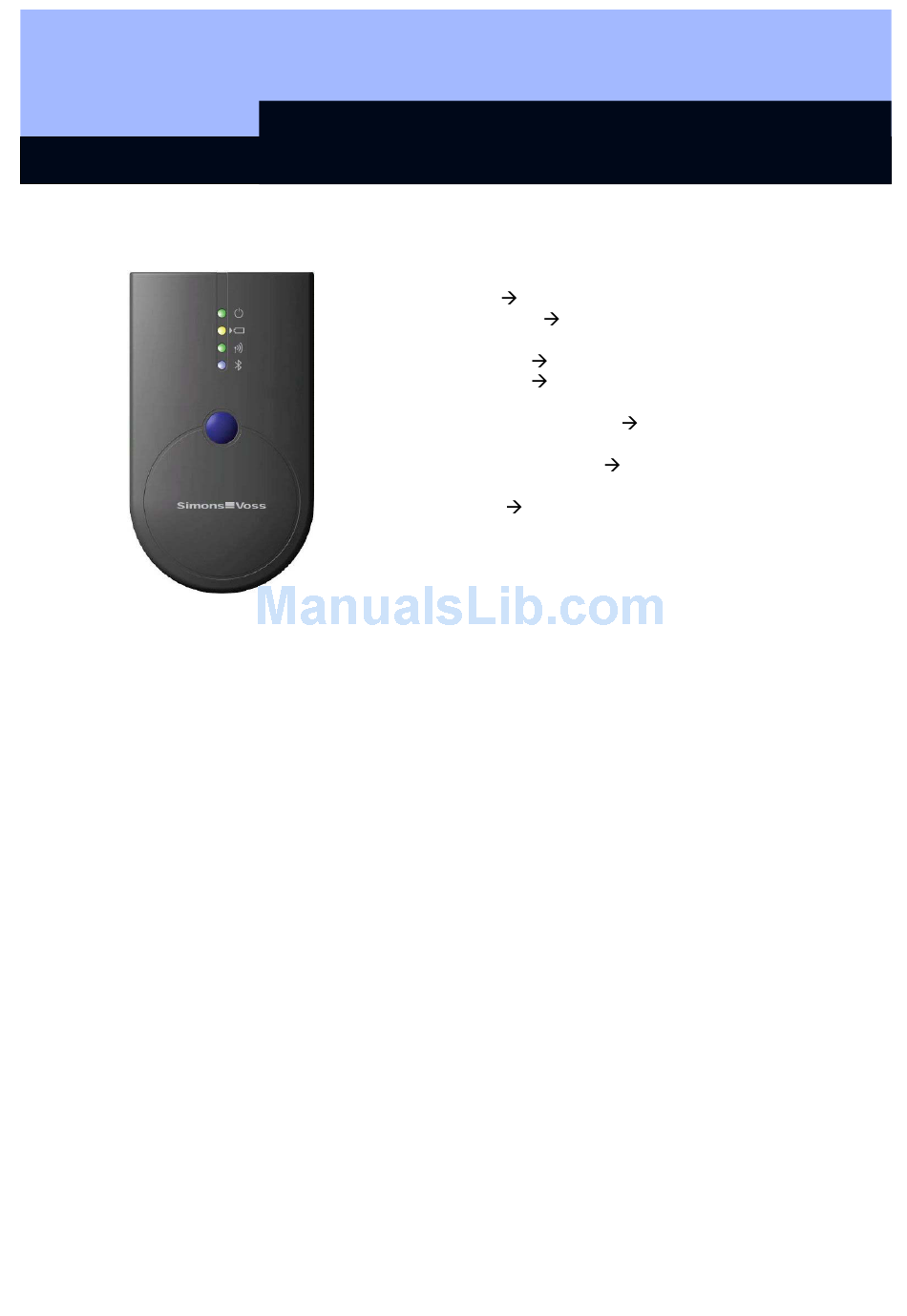

SmartCD Programming Device
First LED (green) on
First LED (green) flashing
Second LED (yellow) on
Second LED (yellow) off
Third LED (green) flashing rapidly
with a SimonsVoss lock
Third LED (green) flashing slowly
Fourth LED (blue) on
The first LED (green) lights when the unit is connected via
USB to a PC/laptop, or when the SmartCD is switched on
without a USB connection by pressing the button. To save
Unit ready for operation
Standby
Batteries are charging
Batteries are charged
Unit is communicating
No connection to lock
Bluetooth active
