Seagull Models NIEUPORT 28 REPLICA Assembly Manual page 7

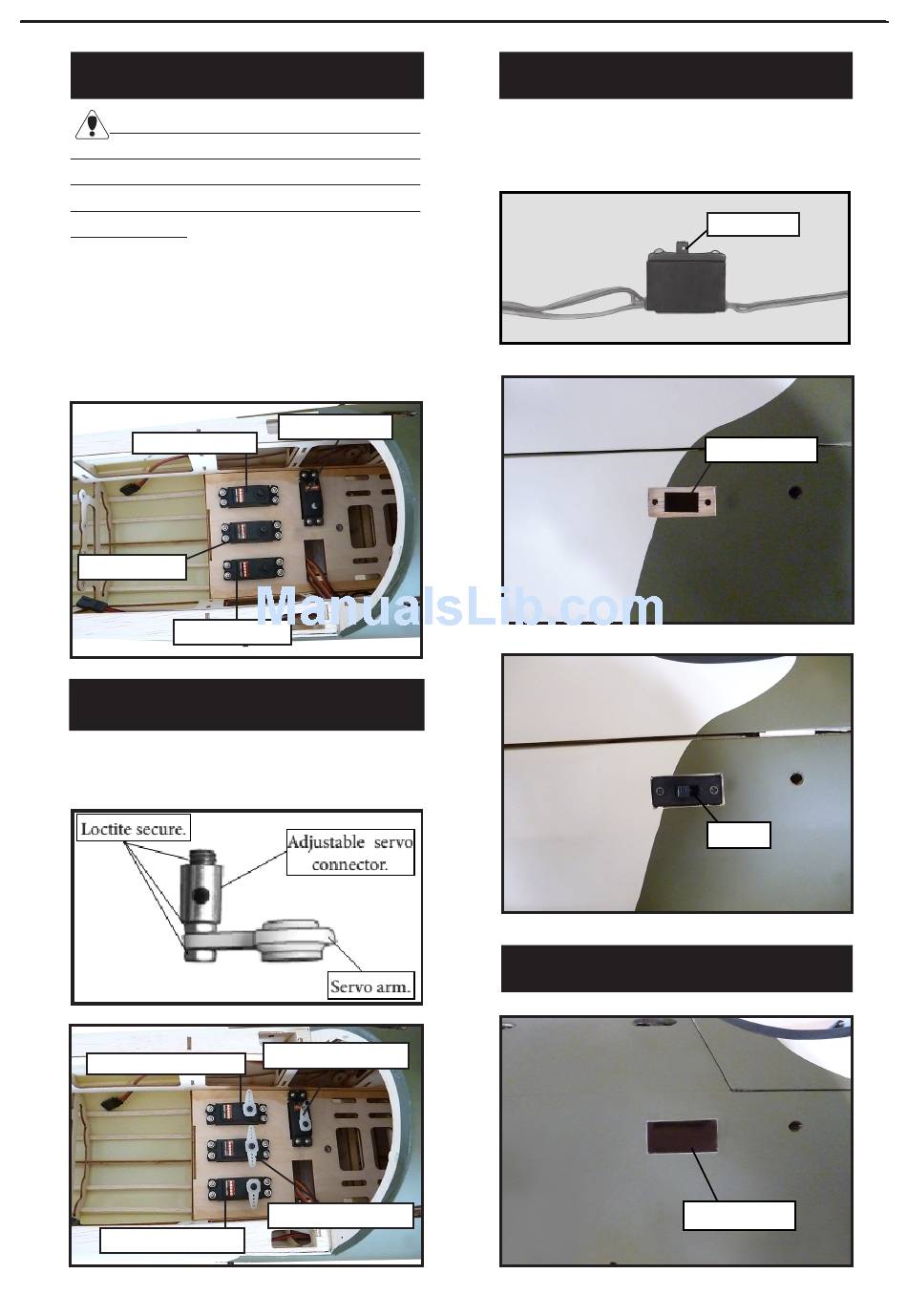

INSTALLING THE FUSELAGE SERVOS.
Because the size of servos differ, you
may need to adjust the size of the precut
opening in the mount. The notch in the
sides of the mount allow the servo lead to
pass through.
1) Install the rubber grommets and brass
collets into all servos. Test fit the servos
into the fuselage servo mounts.
2) Secure the servos with the screws
provided with your radio system.
1.
Elevator servo.
Rudder servo.
Elevator servo.
THROTTLE SERVO ARM
INSTALLATION.
Install adjustable servo connector in the
servo arm as same as picture below:
1.
2.
Elevator servo arm .
Elevator servo arm.
.
.
Throttle servo.
Throttle servo arm.
Rudder servo arm.
INSTALLING THE RECEIVER SWITCH.
Install the switch into the precut hole in
the side, in the fuselage.
1.
2.
3.
INSTALLING THE ENGINE SWITCH.
1.
3/32" Hole.
Trim and cut.
.
Switch.
Trim and cut.
7
