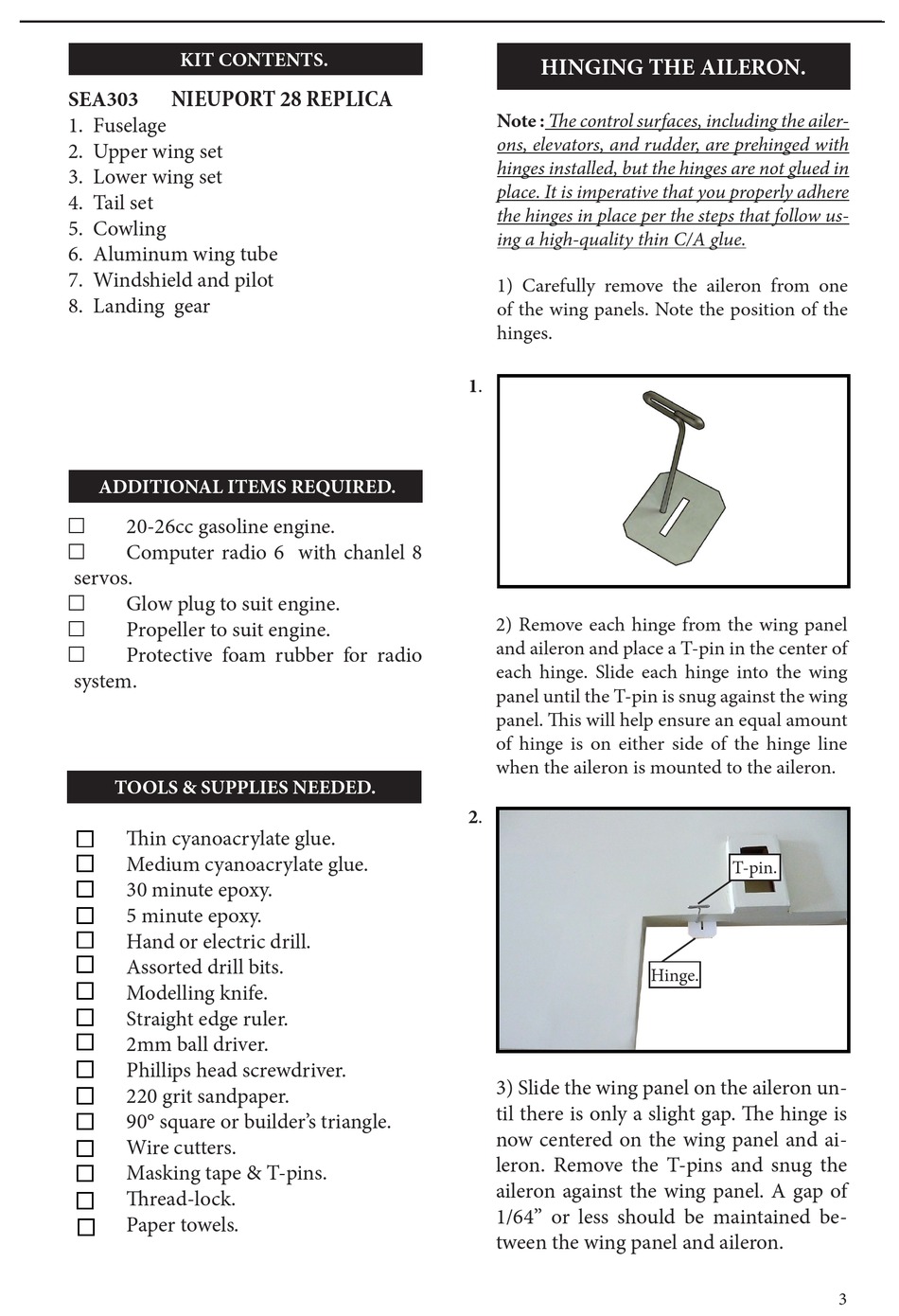

KIT CONTENTS.

NIEUPORT 28 REPLICA
SEA303
1. Fuselage
2. Upper wing set
3. Lower wing set
4. Tail set
5. Cowling
6. Aluminum wing tube
7. Windshield and pilot
8. Landing gear

ADDITIONAL ITEMS REQUIRED.

20-26cc gasoline engine.
�
Computer radio 6 with chanlel 8
�
servos.
Glow plug to suit engine.
�
Propeller to suit engine.
�
Protective foam rubber for radio
�
system.
TOOLS & SUPPLIES NEEDED.
Thin cyanoacrylate glue.
Medium cyanoacrylate glue.
30 minute epoxy.
5 minute epoxy.
Hand or electric drill.
Assorted drill bits.
Modelling knife.
Straight edge ruler.
2mm ball driver.
Phillips head screwdriver.
220 grit sandpaper.
90° square or builder's triangle.
Wire cutters.
Masking tape & T-pins.
Thread-lock.
Paper towels.

HINGING THE AILERON.

Note : The control surfaces, including the ailer-
ons, elevators, and rudder, are prehinged with
hinges installed, but the hinges are not glued in
place. It is imperative that you properly adhere
the hinges in place per the steps that follow us-
ing a high-quality thin C/A glue.
1) Carefully remove the aileron from one
of the wing panels. Note the position of the
hinges.
1.
2) Remove each hinge from the wing panel
and aileron and place a T-pin in the center of
each hinge. Slide each hinge into the wing
panel until the T-pin is snug against the wing
panel. This will help ensure an equal amount
of hinge is on either side of the hinge line
when the aileron is mounted to the aileron.
2.
3) Slide the wing panel on the aileron un-
til there is only a slight gap. The hinge is
now centered on the wing panel and ai-
leron. Remove the T-pins and snug the
aileron against the wing panel. A gap of
1/64" or less should be maintained be-
tween the wing panel and aileron.
T-pin.
Hinge.
3
