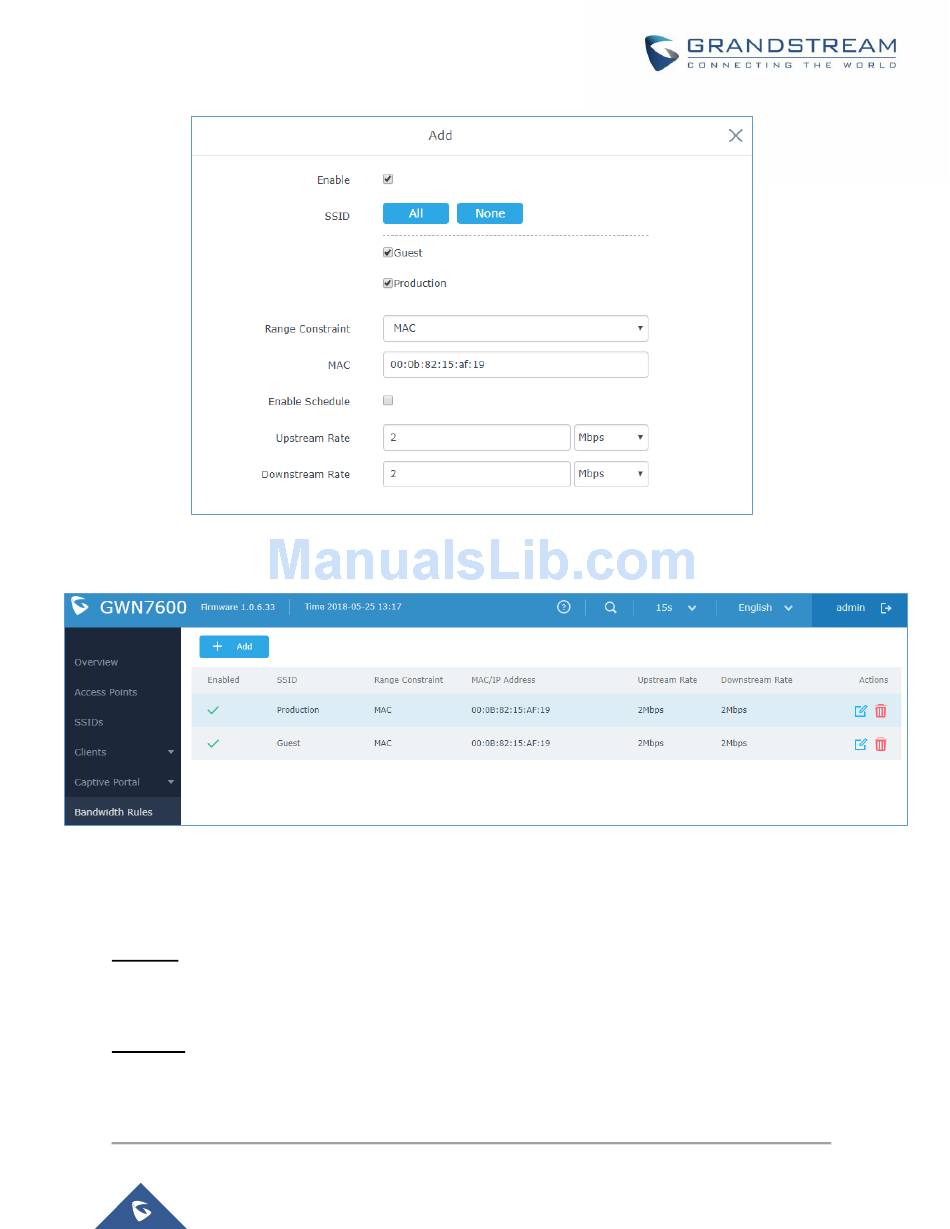

Figure 54: MAC Address Bandwidth Rule
The following figure shows examples of bandwidth rules:
Figure 55: Bandwidth Rules
Note:
The same settings for bandwidth management are available from the following menus:
Per-SSID
Navigate on the web GUI under "SSID→Add /Edit→WiFi" and you can set the Upstream and Downstream
rate in Mbps.
Per-Client
Navigate on the web GUI under "Clients→Edit→Bandwidth Rules" where you can set the Upstream and
Downstream rate in Mbps.
P a g e
|
67
GWN7600/GWN7600LR User Manual
Version 1.0.6.41
