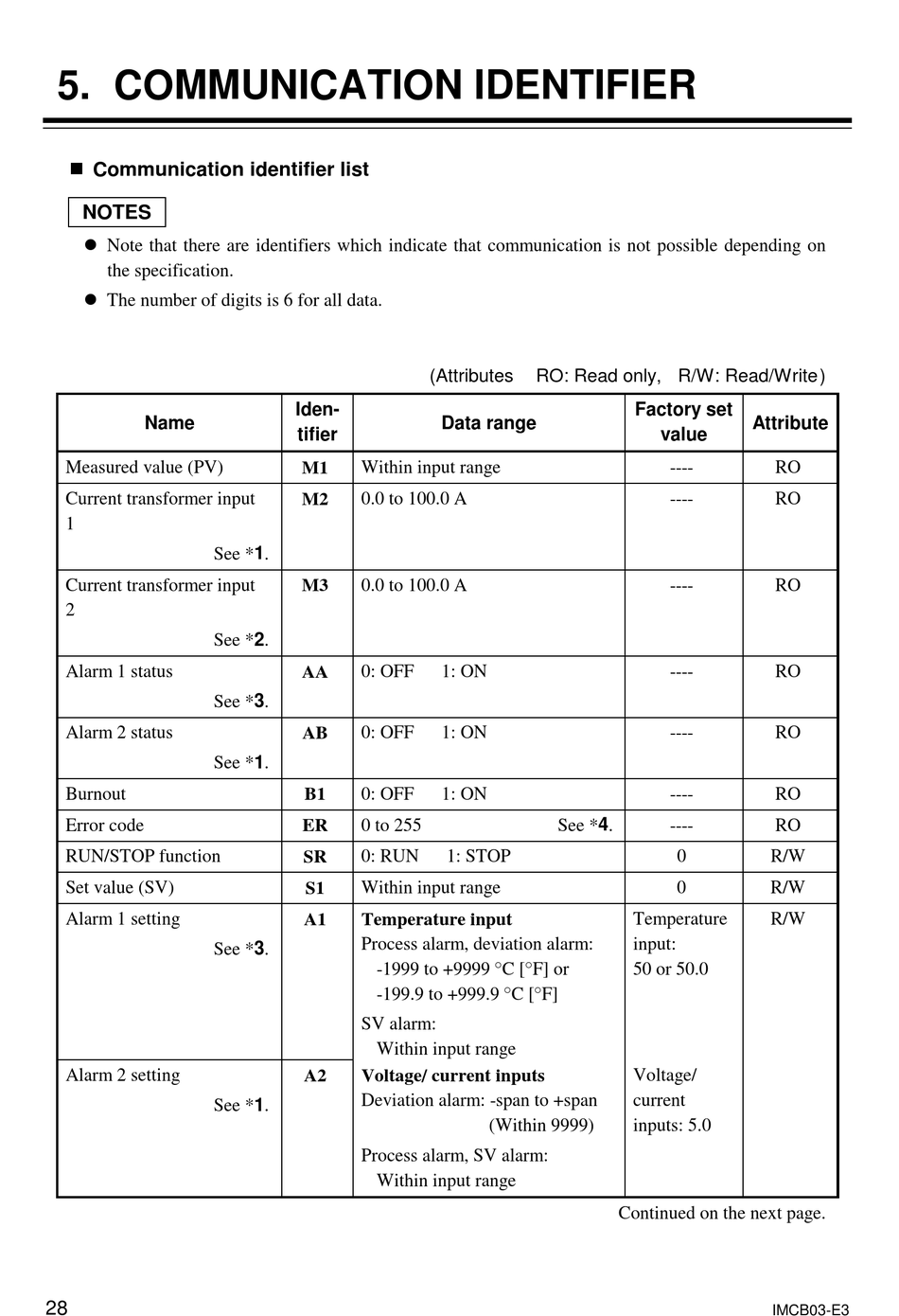

5. COMMUNICATION IDENTIFIER

' Communication identifier list
NOTES
! Note that there are identifiers which indicate that communication is not possible depending on
the specification.
! The number of digits is 6 for all data.
Name
Measured value (PV)
Current transformer input
1
See *1.
Current transformer input
2
See *2.
Alarm 1 status
See *3.
Alarm 2 status
See *1.
Burnout
Error code
RUN/STOP function
Set value (SV)
Alarm 1 setting
See *3.
Alarm 2 setting
See *1.
28
(Attributes
Iden-
Data range
tifier
M1
Within input range
M2
0.0 to 100.0 A
M3
0.0 to 100.0 A
AA
0: OFF
1: ON
AB
0: OFF
1: ON
B1
0: OFF
1: ON
ER
0 to 255
0: RUN
1: STOP
SR
Within input range
S1
A1
Temperature input
Process alarm, deviation alarm:
-1999 to +9999 "C ["F] or
-199.9 to +999.9 "C ["F]
SV alarm:
Within input range
A2
Voltage/ current inputs
Deviation alarm: -span to +span
Process alarm, SV alarm:
Within input range
RO: Read only, R/W: Read/Write)
Factory set
See *4.
Temperature
input:
50 or 50.0
Voltage/
current
(Within 9999)
inputs: 5.0
Continued on the next page.
Attribute
value
----
RO
----
RO
----
RO
----
RO
----
RO
----
RO
----
RO
0
R/W
0
R/W
R/W
IMCB03-E3
