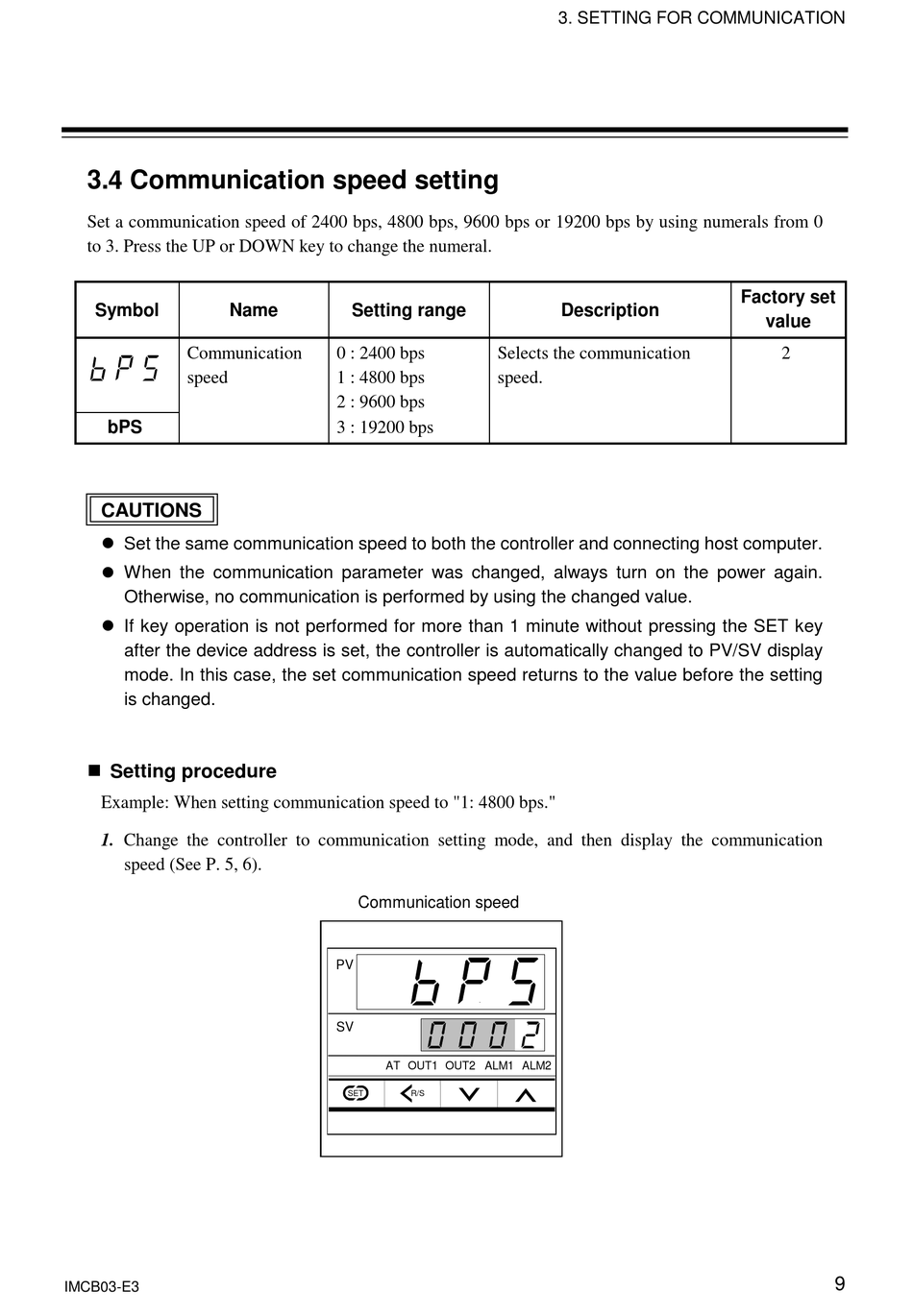

3.4 Communication speed setting

Set a communication speed of 2400 bps, 4800 bps, 9600 bps or 19200 bps by using numerals from 0
to 3. Press the UP or DOWN key to change the numeral.
Symbol Name
Communication
speed
bPS
CAUTIONS
% Set the same communication speed to both the controller and connecting host computer.
% When the communication parameter was changed, always turn on the power again.
Otherwise, no communication is performed by using the changed value.
% If key operation is not performed for more than 1 minute without pressing the SET key
after the device address is set, the controller is automatically changed to PV/SV display
mode. In this case, the set communication speed returns to the value before the setting
is changed.
! Setting procedure
Example: When setting communication speed to "1: 4800 bps."
1. Change the controller to communication setting mode, and then display the communication
speed (See P. 5, 6).
IMCB03-E3
Setting range
0 : 2400 bps Selects the communication
1 : 4800 bps speed.
2 : 9600 bps
3 : 19200 bps
Communication speed
PV
SV
AT OUT1 OUT2 ALM1
SET R/S
3. SETTING FOR COMMUNICATION
Description
ALM2
Factory set
value
2
