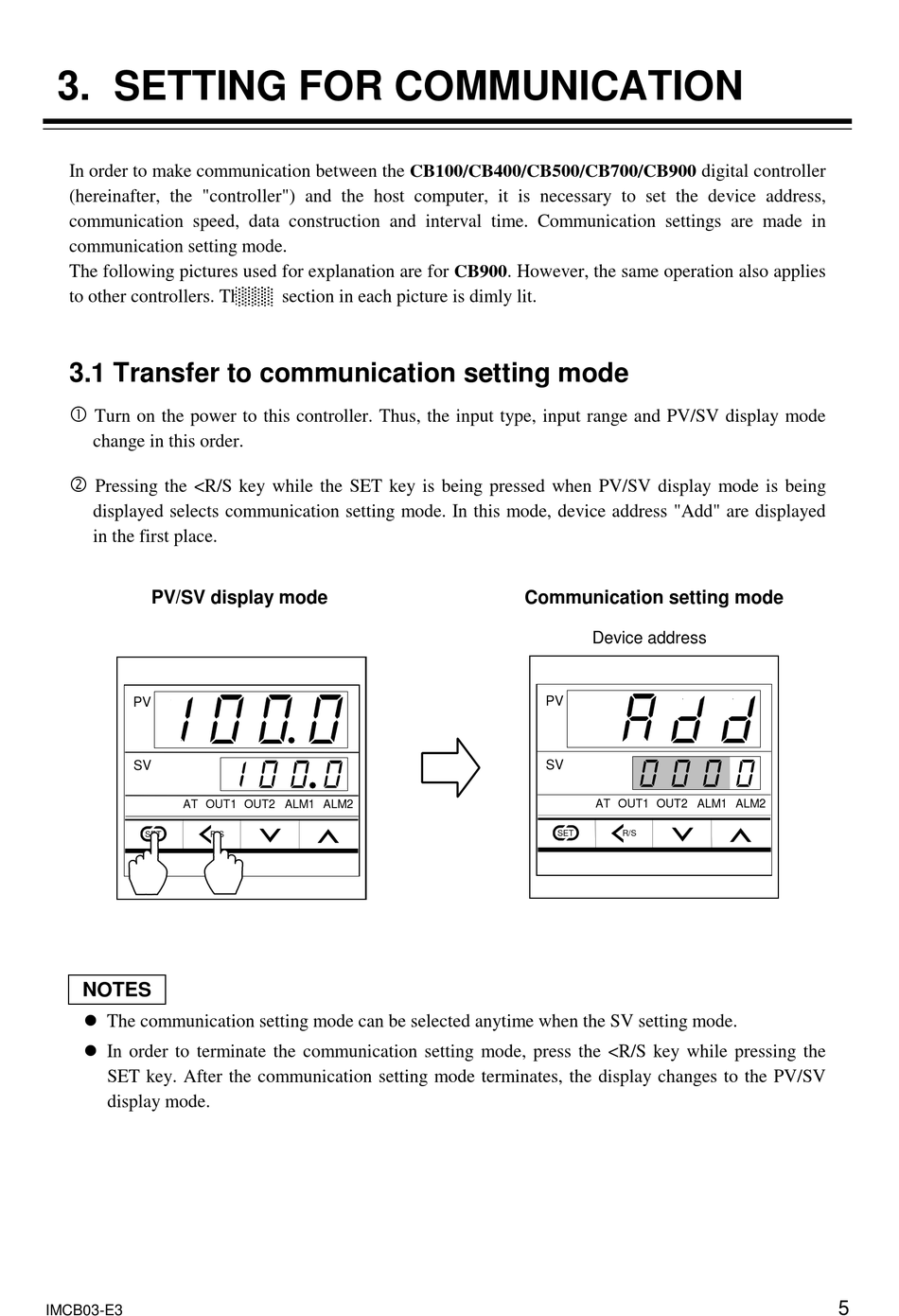

3. SETTING FOR COMMUNICATION

In order to make communication between the CB100/CB400/CB500/CB700/CB900 digital controller
(hereinafter, the "controller") and the host computer, it is necessary to set the device address,
communication speed, data construction and interval time. Communication settings are made in
communication setting mode.
The following pictures used for explanation are for CB900. However, the same operation also applies
to other controllers. The

3.1 Transfer to communication setting mode

#
Turn on the power to this controller. Thus, the input type, input range and PV/SV display mode
change in this order.
$
Pressing the <R/S key while the SET key is being pressed when PV/SV display mode is being
displayed selects communication setting mode. In this mode, device address "Add" are displayed
in the first place.
PV/SV display mode
PV
SV
AT OUT1
SET R/S
NOTES
% The communication setting mode can be selected anytime when the SV setting mode.
% In order to terminate the communication setting mode, press the <R/S key while pressing the
SET key. After the communication setting mode terminates, the display changes to the PV/SV
display mode.
