3. SETTING FOR COMMUNICATION
! Setting procedure

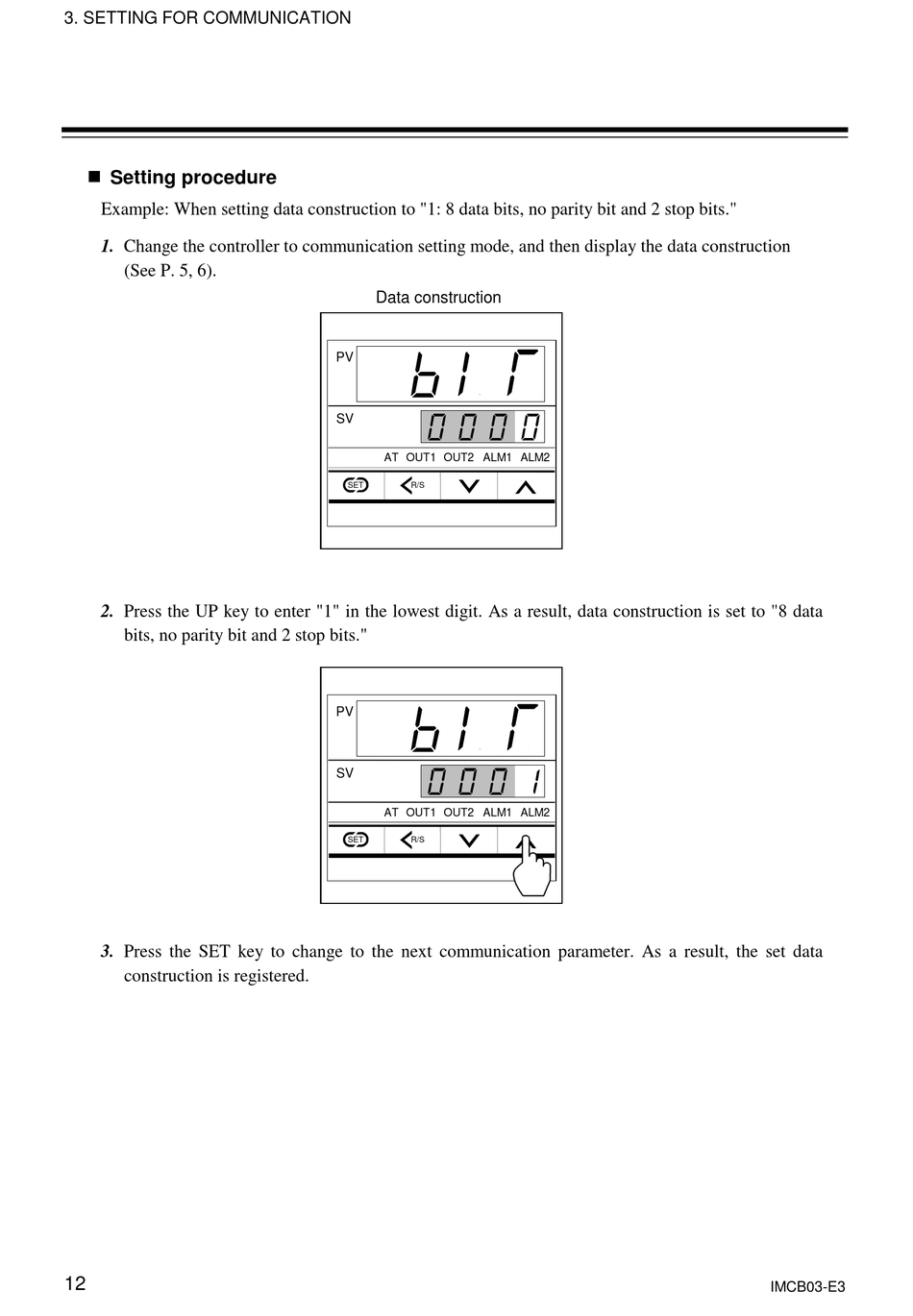

Example: When setting data construction to "1: 8 data bits, no parity bit and 2 stop bits."
1. Change the controller to communication setting mode, and then display the data construction
(See P. 5, 6).
2. Press the UP key to enter "1" in the lowest digit. As a result, data construction is set to "8 data
bits, no parity bit and 2 stop bits."
3. Press the SET key to change to the next communication parameter. As a result, the set data
construction is registered.
