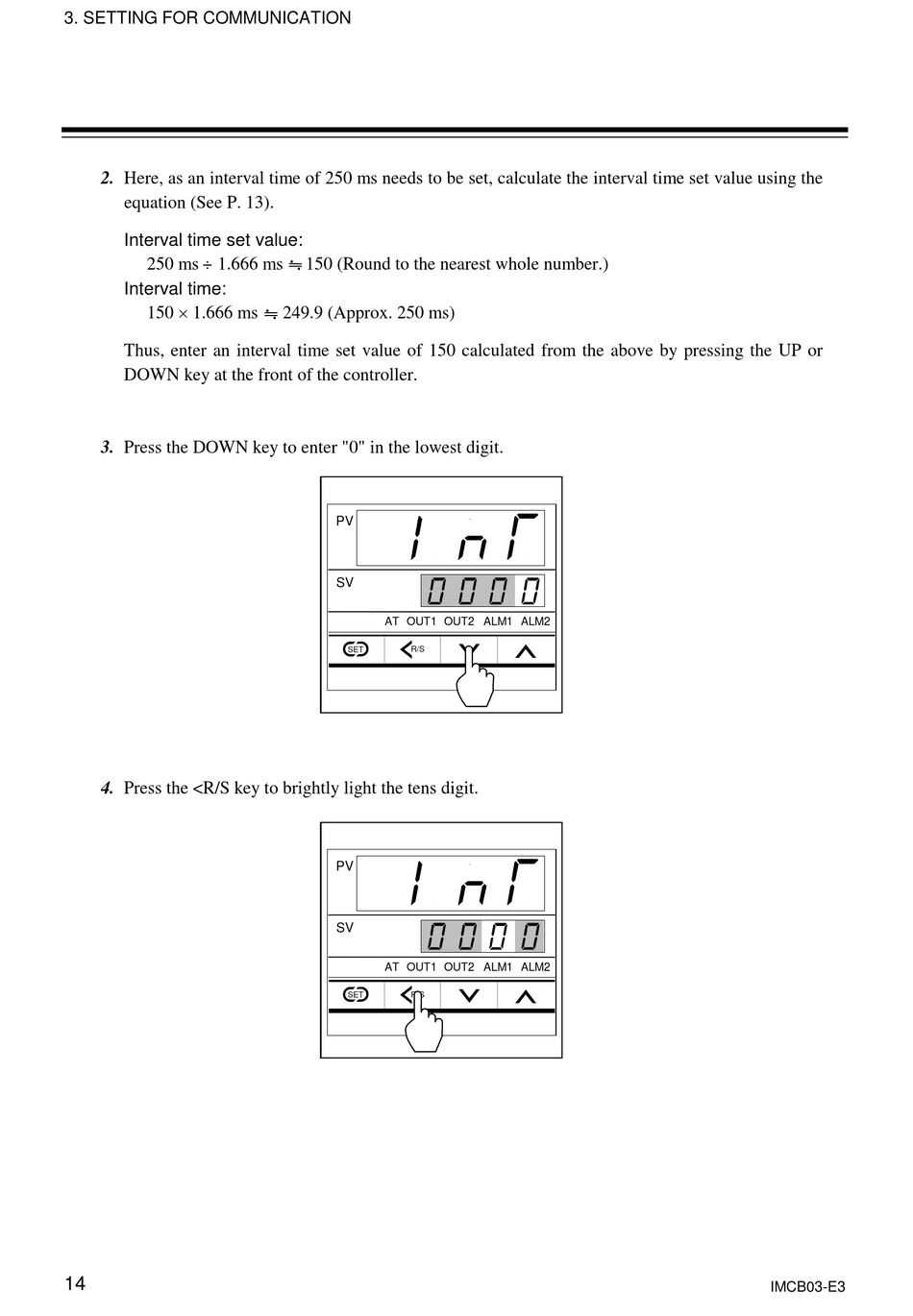

3. SETTING FOR COMMUNICATION
2. Here, as an interval time of 250 ms needs to be set, calculate the interval time set value using the
equation (See P. 13).
Interval time set value:
250 ms # 1.666 ms
Interval time:
150 " 1.666 ms
Thus, enter an interval time set value of 150 calculated from the above by pressing the UP or
DOWN key at the front of the controller.
3. Press the DOWN key to enter "0" in the lowest digit.
4. Press the <R/S key to brightly light the tens digit.
14
150 (Round to the nearest whole number.)
249.9 (Approx. 250 ms)
