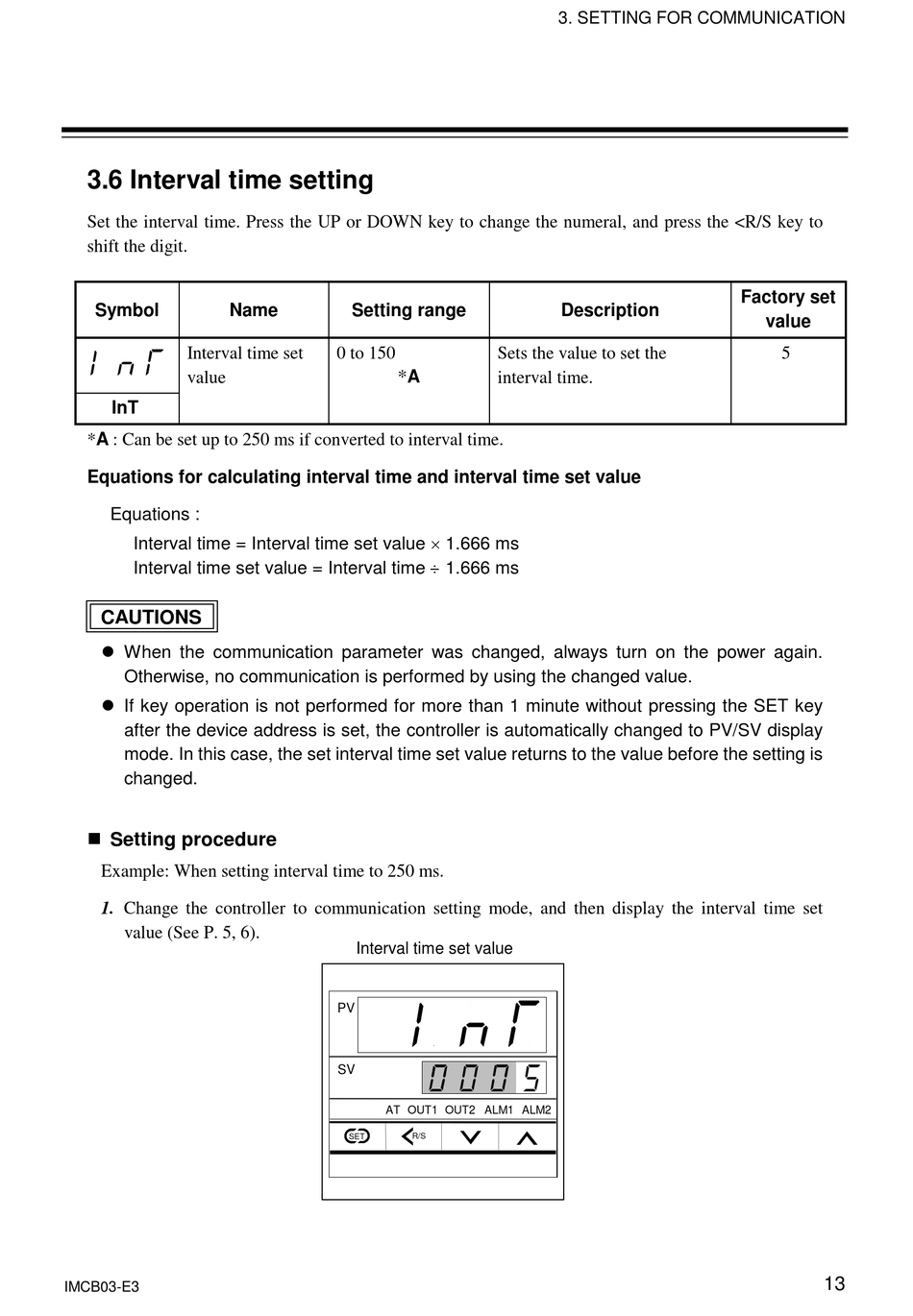

3.6 Interval time setting

Set the interval time. Press the UP or DOWN key to change the numeral, and press the <R/S key to
shift the digit.
Symbol Name
Interval time set
value
InT
*A : Can be set up to 250 ms if converted to interval time.
Equations for calculating interval time and interval time set value
Equations :
Interval time = Interval time set value " 1.666 ms
Interval time set value = Interval time # 1.666 ms
CAUTIONS
% When the communication parameter was changed, always turn on the power again.
Otherwise, no communication is performed by using the changed value.
% If key operation is not performed for more than 1 minute without pressing the SET key
after the device address is set, the controller is automatically changed to PV/SV display
mode. In this case, the set interval time set value returns to the value before the setting is
changed.
! Setting procedure
Example: When setting interval time to 250 ms.
1. Change the controller to communication setting mode, and then display the interval time set
value (See P. 5, 6).
IMCB03-E3
Setting range
0 to 150 Sets the value to set the
* A
interval time.
Interval time set value
PV
SV
AT OUT1 OUT2 ALM1
SET R/S
3. SETTING FOR COMMUNICATION
Description
ALM2
Factory set
value
5
13
