3.2 Communication parameter selection

Parameters in communication setting mode are selected in the order of device address "Add,"
communication speed "bPS," data construction "bIT" and interval time set value "InT."
Each parameter is selected by pressing the SET key.

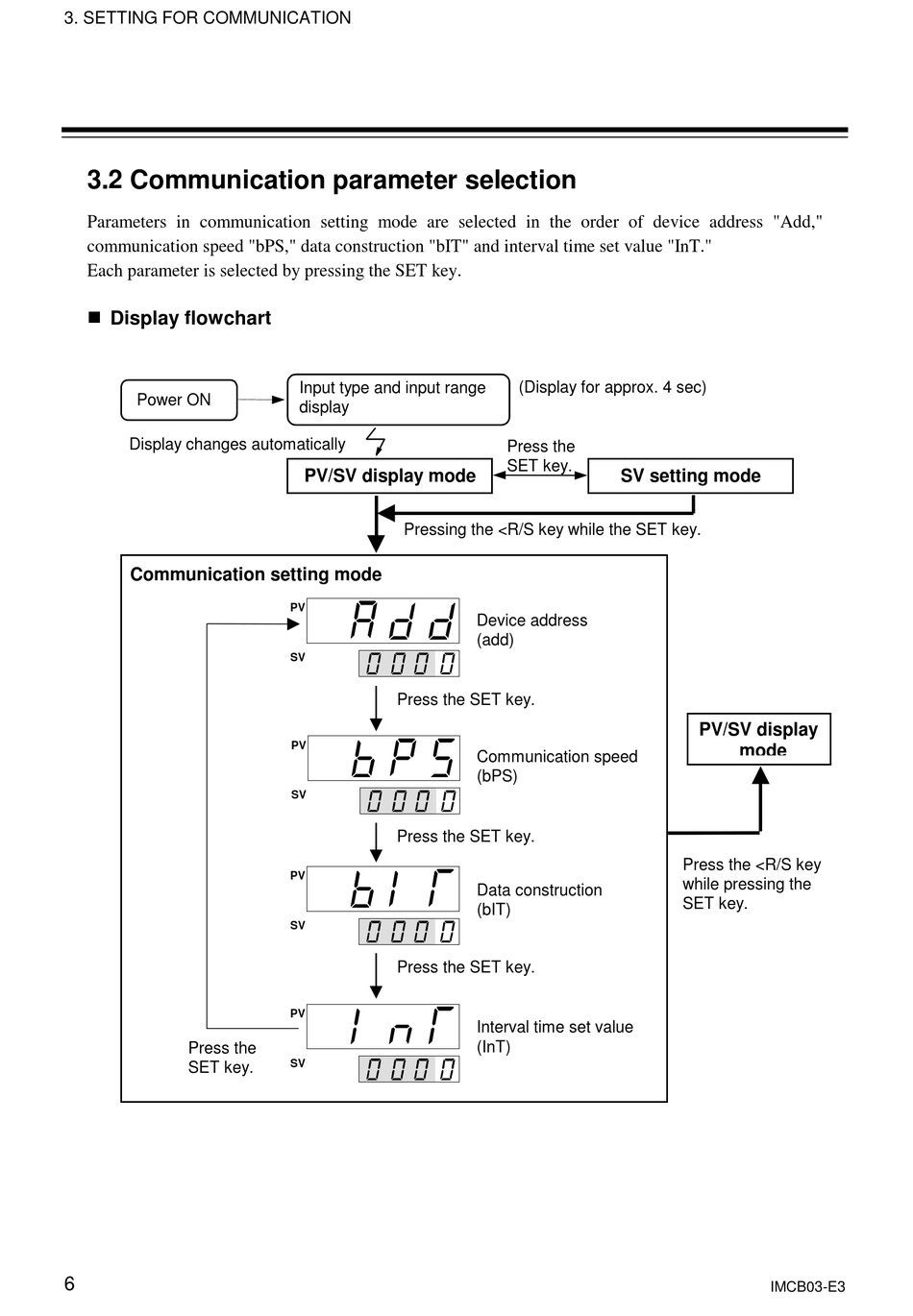

! Display flowchart
Power ON
Display changes automatically
Communication setting mode
Press the
SET key.
6
Input type and input range
display
PV/SV display mode
Pressing the <R/S key while the SET key.
PV
SV
Press the SET key.
PV
SV
Press the SET key.
PV
SV
Press the SET key.
PV
SV
(Display for approx. 4 sec)
Press the
SET key.
SV setting mode
Device address
(add)
Communication speed
(bPS)
Data construction
(bIT)
Interval time set value
(InT)
PV/SV display
mode
Press the <R/S key
while pressing the
SET key.
