Summary of Contents for CYP CS-802D

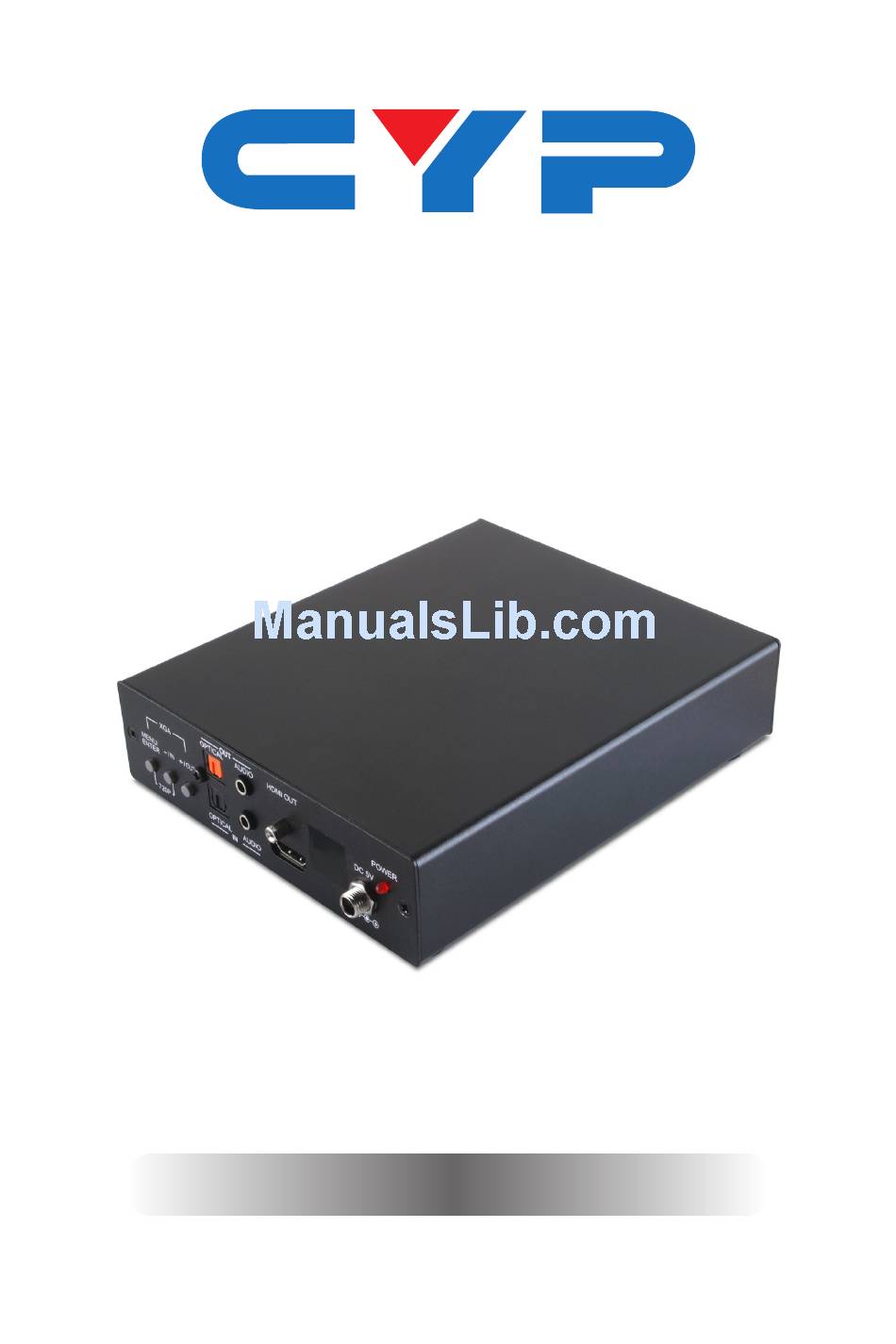

- Page 1 CS-802D HD High Resolution Scaler Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 3 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel .........2 6.2 Rear Panel .........3 6.3 Remote Control .........4 6.4 RS-232 Protocols ........5 6.5 RS-232 Commands......5 6.6 OSD Menu ..........7... -
Page 5: Introduction
1. INTRODUCTION This HD High Resolution Scaler can switch and convert Dual-Link DVI, Mini-DisplayPort and PC/Component inputs to a HDMI output , along with their associated audio signals. With the ability to scale a wide range of resolutions, the operation of all features can be easily handled through on-panel controls, IR remote control, or by RS-232 protocol. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL AUDIO HDMI OUT POWER DC 5V MENU/ ENTER OPTICAL AUDIO 720P MENU/ENTER Button: Press this button to ENTER the OSD menu. Press again to confirm the selection. Note: Pressing '−' (MINUS) and 'ENTER' simultaneously will immediately switch the output resolution of the device to 720p@60 Hz. Pressing '+' (PLUS) and 'ENTER' simultaneously will immediately switch the output resolution of the device to XGA. MINUS (-)/IN Button: When in the OSD menu, press this button repeatedly to move down through the menu. -
Page 7: Rear Panel
IR Window: Receives the IR signal from the supplied IR Remote only. DC 5V and POWER LED: Connect the 5V DC power supply into the unit and plug the adaptor to AC wall outlet. Once the system turns on the LED will turn RED. 6.2 Rear Panel RS232 Dual-Link DVI... -
Page 8: Remote Control
6.3 Remote Control POWER: Press to turn the system ON/ OFF. COMP VIDEO IN: Press the required key to VIDEO IN AUDIO OPTICAL directly select the video source (DVI/ MUTE AUDIO IN MDP/PC/COMP). EXIT MENU ENTER AUDIO IN: Press the required key INFO OUTPUT to directly select the audio source... -
Page 9: Rs-232 Protocols
6.4 RS-232 Protocols SCALER REMOTE CONTROLLER Definition Definition ► ◄ Baud Rate: 19200 bps Data Bit: 8 bits Parity: None Stop Bit: 1 bit Flow Control: None 6.5 RS-232 Commands COMMAND DESCRIPTION POWER ? Power Status POWER ON Power On POWER OFF Power Off VIDEO ? - Page 10 COMMAND DESCRIPTION Video Input in PC COMP Video Input in Component AUDIO ? Audio Input Source AUDIO Audio Input in AUDIO OPTICAL Audio Input in OPTICAL MDPA Audio Input in MDP MUTE ? Mute Status MUTE ON Mute On MUTE OFF Mute Off INFO ? Info.OSD Status...
-
Page 11: Osd Menu
Key Feedback Enable FEEDBACK OFF Key Feedback Disable STATE ? Video Input Signal Status VERSION ? Firmware Version DEFAULT Reset to Factory Default About ? About CS-802D Note: Any commands will not be executed unless followed by a carriage return. Commands are not case-sensitive. 6.6 OSD Menu FIRST LEVEL SECOND LEVEL THIRD LEVEL Input Video COMP Exit... - Page 12 SECOND LEVEL THIRD LEVEL Output Resolution 720x480P 1280x720P 1920x1080P 640x480 800x600 1024x768 1280x1024 1600x1200 1920x1200 1280x800 By Native Exit Misc. Setup EDID Mode Internal External Exit Info. OSD Mode Exit About CS-802D FW Ver. Factory Reset System Reset Exit Exit...
-
Page 13: Connection Diagram
7. CONNECTION DIAGRAM Laptop VGA Input Input (D-sub15-pin) Mini Digital Audio Analog Stereo DisplayPort Input Input (3.5mm Input (Optical) Mini-jack) RS-232 RS232 Dual-Link DVI PC/COMP SERVICE Power OPTICAL AUDIO HDMI OUT POWER Supply DC 5V MENU/ ENTER OPTICAL AUDIO 720P HDMI Output Digital Audio... -
Page 14: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Mini DisplayPort Video 2.7 Gbps & 1.62 Gbps/Lane Bandwidth Input Ports 1×Dual-Link DVI, 1×Mini DisplayPort, 1×D-sub 15-pin, 1×Optical, 1×3.5mm Mini- jack Output Ports 1×HDMI, 1×Optical, 1×3.5mm Mini-jack Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:... -
Page 15: Input Resolution Supports
8.2 Input Resolution Supports INPUT RESOLUTION COMP 640x350@85 640x400@85 720x400@85 VGA640x480@60/72/75/85 SVGA800x600@56/60/72/75/85/120RB 848x480@60Hz XGA1024x768@43i/60/75/85/120R 1280x720@60 1280x768@60R/60/75/85/120R ... - Page 16 INPUT RESOLUTION COMP 1920x1200@60/60RB (60RB only) 1920x1440@60 720x480I/P 720x576I/P 720I/P@24/25/30/50/60 1080I@50/60 1080P@24/30/50/60 2048x1080@@50/60 2048x1152@@60R 2560x1600@60R ...
-
Page 17: Output Resolution Supports
8.3 Output Resolution Supports OUTPUT RESOLUTION HDMI 640x480 800x600 1024x768 1280x1024 1600x1200 1920x1200@60 1280x800 720x480P 1280x720P (Default) 1920x1080P Note: When the output resolution is set to 'By Native' but it does not match the built-in supported resolution, the output resolution will automatically be set to the default of 1280 × 720p. 9. ACRONYMS ACRONYM COMPLETE TERM COMP Component Video Digital Visual Interface HDMI High-Definition Multimedia Interface... - Page 18 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20121217 MPM-CS802D...
