Summary of Contents for CYP CSC-220

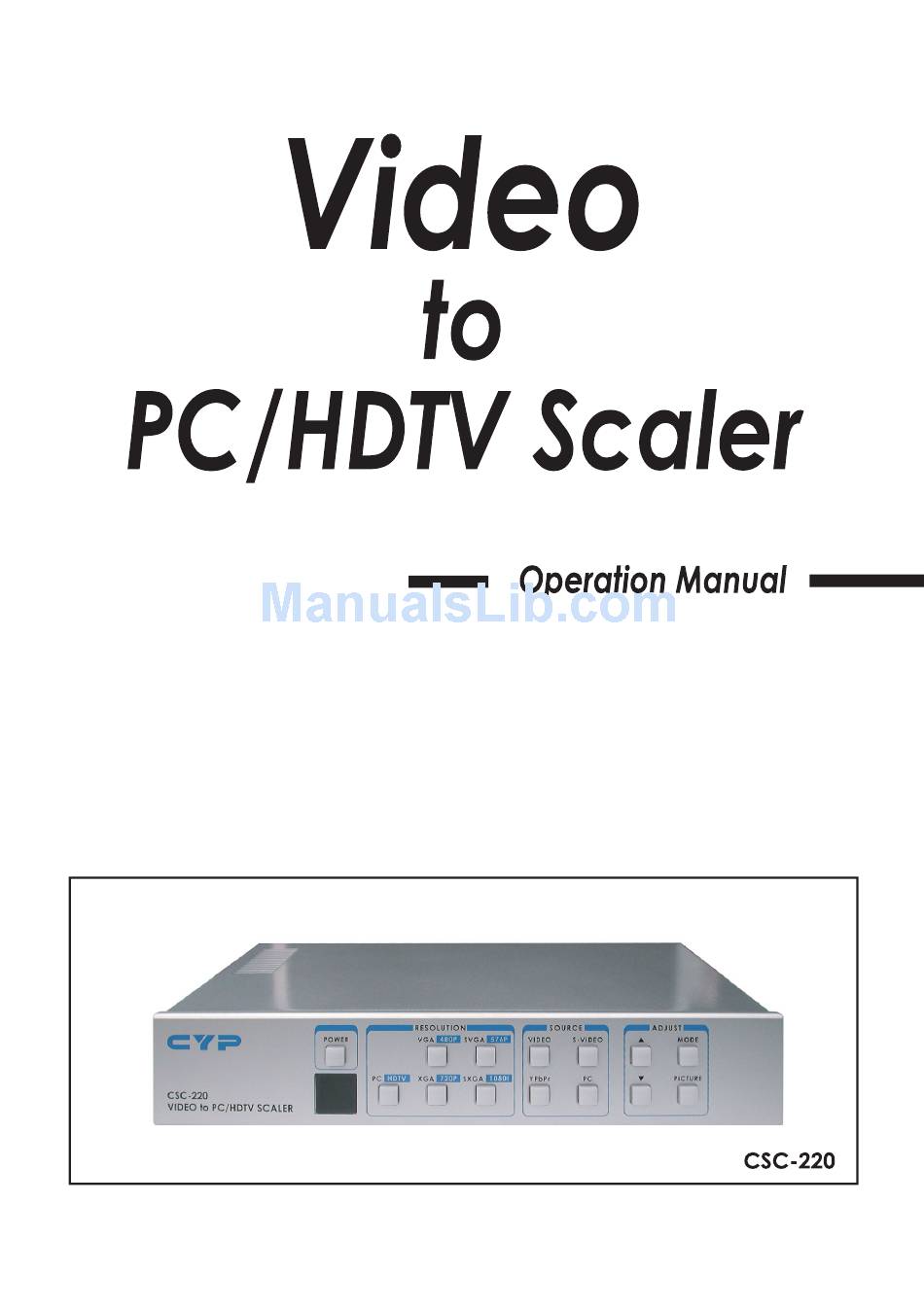

- Page 2 Video Processors. Please visit www.cypress.com.tw to learn more details about these products. This manual includes operation information on the CSC-220 model. Please read this to become familiar with the CSC-220 and keep the manual for possible reference in the future.

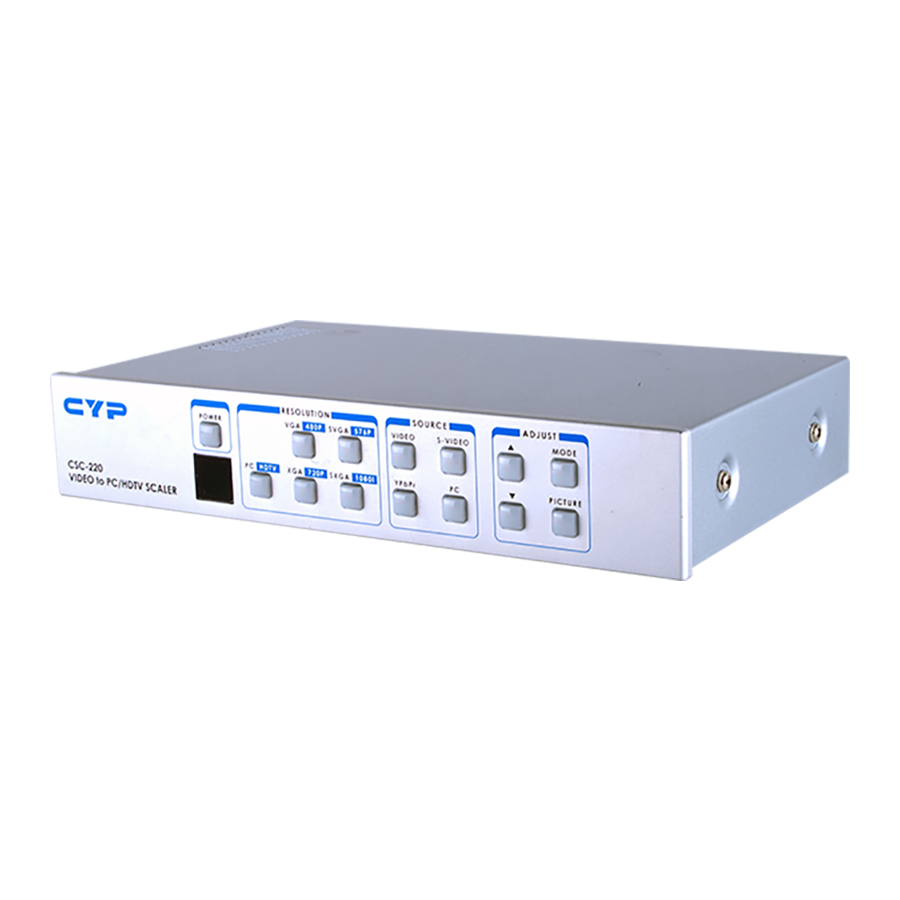

- Page 3 (4). Controlling the scaler The video scaler is controlled via front panel push buttons or remote control and its status is indicated by OSD display. The front panel controls are shown below. Front Panel 1. Mode: Press the button repeatedly will toggle through the following adjust controls: Source ResolutionOutput...
- Page 4 2. Picture: Press the button to toggle through picture adjust parameters as follows: ContrastBright Color Hue Detail Contrast * Contrast: Press or to adjust contrast level. The range of adjustment is 0~63. Factory default value is 58. * Bright: Press ...
- Page 5 7. Power and LED button: Press once to power on the unit, press again to turn it off. Note: * Under picture adjust mode, press and simutaneously will revert the selected parameter back to factory preset value. Press both buttons for over 5 seconds. will revert all picture parameters back to their factory preset values.
- Page 6 5 . The HD-15 D-Sub(labeled "RGB/YPbPr") connector is shared by PC/RGBHV output and HDTV/YPbPr output. When PC/RGBHV output resoultion (VGA to SXGA) is selected, use the HD-15 to HD-15 VGA cable to connect the output to the input of your PC monitor. When HDTV/YPbPr output (480p, 576p, 720p, 1080i) is selected, use the HD-15 to YPbPr 3 x RCA cable to connect the output to the YPbPr input of your HDTV display.
- Page 7 (7). Remote Control 1. POWER: Power ON/OFF button. 2. DISPLAY: Press the button to enable or disable the on screen display of the resolution information. 3. C-VIDEO: Press the button to select composite video as input source. 4. S-VIDEO: Press the button to select S-Video as input source. 5.
- Page 8 A disk is provided with the CSC-220 containing a sample Windows Control Panel that permits remote control of the unit from a PC via RS-232. Note: * The connection between the CSC-220 unit and the RS-232 remote controller is made with a modem cable. Remote Controller...
-
Page 9: Command Response
(9). RS-232 Control of the CSC-220 Video Scaler * Command / Response codes of RS-232 transmission: Command Response Description "[POWER1]" "[POWER1]" power on(normal) "[POWER0]" "[POWER0]" power off(standby) "[IN0]" "[IN0] Composite video input "[IN1]" "[IN1]" S video input "[IN2]" "[IN2]" Y PB PR/Y CB CR input "[IN3]"... -
Page 10: Specifications
(10). Specifications Computer input (Loop thru) RGB with HV Sync Max computer input resolution 1280 x 1024 Computer input connector type HD 15 Female Computer input signal level RGB @ 0.7V, H&V Sync @ TTL Composite Video @ 1 Vp-p 75 ohm S-Video @ 1 Vp-p 75 ohm Video inputs YPbPr Y : 1 Vpp 75 ohm...
