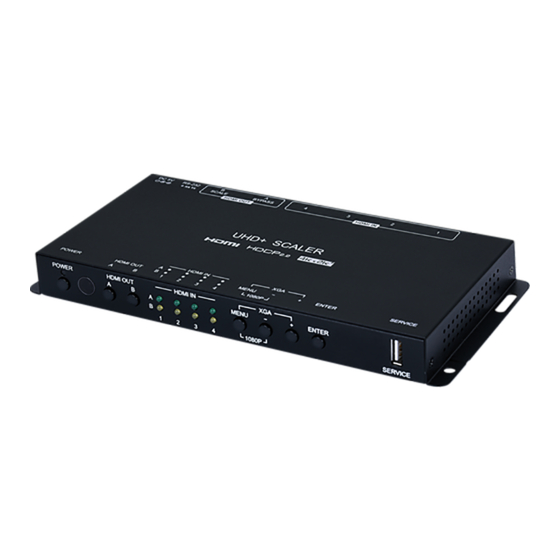

4k uhd+ 4×2 hdmi matrixing scaler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CSC-104
4K UHD
4×2 HDMI Matrixing Scaler
+
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSC-104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CSC-104

Summary of Contents for CYP CSC-104

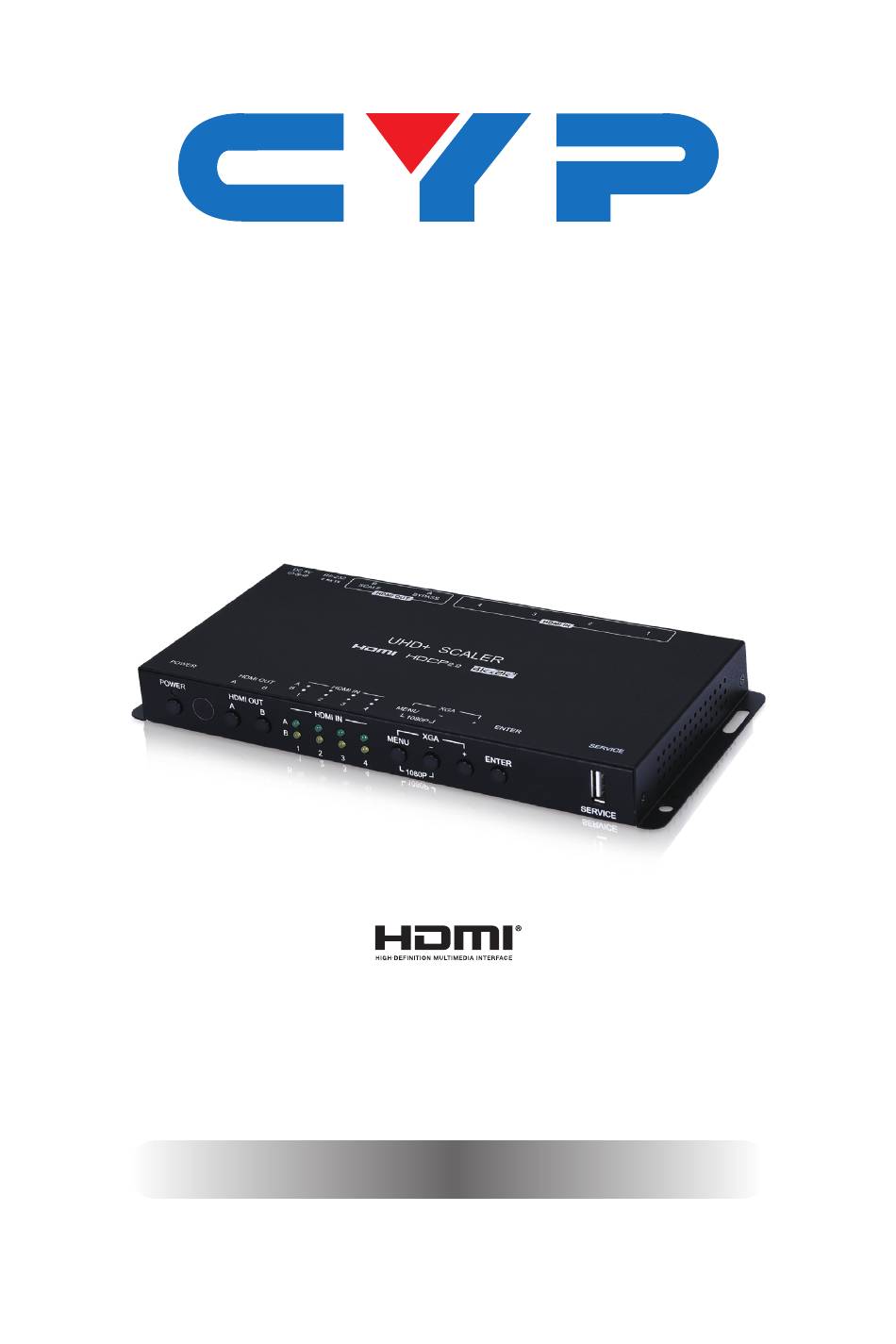

  • Page 1 CSC-104 4K UHD 4×2 HDMI Matrixing Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Remote Control ......... 5 6.4 OSD Menu ..........6 6.5 RS-232 Control .........

  • Page 6: Introduction

    1. INTRODUCTION This Scaler is a new and powerful 4K scaling solution. The maximum resolution supported is 4096×2160@50/60Hz (4:4:4, 8-bit) for all HDMI inputs and outputs. The scaled HDMI output is powered by a high quality single-pass scaling engine with the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels.

  • Page 7: System Requirements

    • 1×3-pin Terminal Block to 9-pin D-sub Adapter Cable • 1×Shockproof Feet (Set of 4) • 1×Operation Manual 4. SYSTEM REQUIREMENTS • HDMI source equipment such as media players, video game consoles or set-top boxes. • HDMI receiving equipment such as HDTVs, monitors or audio amplifiers.

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER HDMI OUT HDMI IN MENU − ENTER SERVICE 1080P POWER BUTTON & LED: Press this button to power on the unit (green LED) or place it into stand-by mode (red LED). IR RECEIVER WINDOW: Accepts IR signals from the included IR remote for control of this unit only.

  • Page 9: Rear Panel

    6.2 Rear Panel HDMI IN HDMI OUT RS-232 TX RX DC 5V BYPASS SCALE HDMI IN 1~4 PORTS: Connect to HDMI source equipment such as media players, game consoles or set-top boxes. HDMI OUT A~B PORTS: Connect to HDMI TVs, monitors or amplifiers for digital video and audio output.

  • Page 10: Remote Control

    6.3 Remote Control POWER POWER BUTTON: Press this button to HDMI 1 HDMI 2 HDMI 3 power on the unit or place it into stand- HDMI 4 AUDIO MUTE HDMI by mode. HDMI 1 HDMI 2 HDMI 3 HDMI A SOURCE 1~4 BUTTONS: Press any AUDIO HDMI 4 MUTE...

  • Page 11: Osd Menu

    6.4 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 12 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Output 1400×1050 60 1440×900 60 1600×1200 60 1680×1050 60 1920×1200 60 RB 2560×1600 60 1920×1080 60 1280×720 60 2048×1080 50 2048×1080 60 2560×1440 60 RB 720×480p 60 1280×720p 60 1920×1080P 60 720×576p 50 1280×720p 50 1920×1080p 50 1920×1080p 24...
  • Page 13 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Output 4096×2160p 25 4096×2160p 30 4096×2160p 50 4096×2160p 60 Native Aspect Over Scan FULL Best Fit Pan Scan Letter Box Under 2 Under 1 Follow In Zoom Mode 60~180 (100) Zoom Mode Ratio HDMI1 HDCP Support Off Refer to Source...
  • Page 14 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Freeze Auto Setup Auto Sync Off 3Min 5Min 10Min Auto Scan From Last From HDMI1 From HDMI2 From HDMI3 From HDMI4 Auto Switch HDMI1 Bypass Output Video HDMI2 HDMI3 HDMI4 4K down to 1080p YUV444 Follow In 4K 6G YUV420...
  • Page 15 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Bypass Output Bypass Color YUV444 YUV422 1) Video (Output B only): Selects the HDMI input to route to the scaled output (Output B) for display. 2) Output (Output B only): Selects the output resolution to use on the scaled output.
  • Page 16 8) Freeze (Output B only): Allows for the video on the scaled output to be frozen. While the output is frozen, audio output will also be muted. 9) Auto Setup: Provides control over the behavior of the automated video source handling of the unit. ■...
  • Page 17 PICTURE (OUTPUT B ONLY) 2ND LEVEL 3RD LEVEL 0~1023 (512) Color Gain R 0~1023 (512) Color Gain G 0~1023 (512) Color Gain B 0~1023 (512) Color Offset R 0~1023 (512) Color Offset G 0~1023 (512) Color Offset B 0~60 (30) Brightness 0~60 (30) Contrast...
  • Page 18 7) Sharpness: Provides control over the amount of sharpness processing to apply to the scaled output image. 8) NR: Provides control over the aggressiveness of the digital noise reduction processing when applied to the scaled output image. Selecting “Off” disables all noise reduction processing. 9) Reset Picture: Selecting this will reset all picture settings back to their factory defaults.
  • Page 19 2ND LEVEL 3RD LEVEL Timer 0~50 (50) Transparent Display Reset OSD 1) H Position: Set the horizontal position of the OSD menu. 2) V Position: Set the vertical position of the OSD menu. 3) Timer: Set the length of time to wait before automatically turning off the OSD menu if there is no user interaction.
  • Page 20 EDID 2ND LEVEL 3RD LEVEL HDMI1 EDID UHD MCh UHD+ 2Ch UHD+ MCh User 1 User 2 User 3 User 4 Output A Auto Output A Output B Auto Output B HDMI2 EDID HDMI3 EDID [Same as HDMI1 EDID] HDMI4 EDID HDMI ALL EDID 1) HDMI1~4 EDID: Select the EDID to use with the specified HDMI input.
  • Page 21 FW UPDATE 2ND LEVEL 3RD LEVEL Update from USB 1) Update from USB: Provides a way to update the unit’s firmware. Insert a USB thumb drive, with a valid firmware file (*.bin format) in the root directory, into the unit’s USB service port then select this option.

  • Page 22: Rs-232 Control

    6.5 RS-232 Control Unit Controlling PC Serial Port Default Settings Definition Definition Baud Rate 19200 Data Bits Parity Bit None Stop Bits Flow Control None 6.6 RS-232 Commands COMMAND Description and Parameters HELP Show the full command list. Show the full command list. SET FACTORY DEFAULT Reset the unit to the factory defaults.
  • Page 23 COMMAND Description and Parameters SET OUT N1 ROUTE N2 Route Input N2 to Output N1. N1 = A ~ B [Output port] N2 = 1 ~ 4 [Input port] GET OUT N1 ROUTE Show the current routing for Output N1. N1 = A ~ B [Output port] SET ALL OUT ROUTE N1...
  • Page 24 COMMAND Description and Parameters GET OUT TYPE LIST List the port type of all outputs on the unit. GET IN PORT NUMBER Show the number of input ports on the unit. GET OUT PORT NUMBER Show the number of output ports on the unit. SET OUT B TIMING N1 Set the scaled output resolution for Output B.
  • Page 25 COMMAND Description and Parameters [1920×1080p@60Hz] [720×576p@50Hz] [1280×720p@50Hz] [1920×1080p@50Hz] [1920×1080p@24Hz] [1920×1080p@25Hz] [1920×1080p@30Hz] [2560×1080p@50Hz] [2560×1080p@60Hz] [3840×2160p@24Hz] [3840×2160p@25Hz] [3840×2160p@30Hz] [3840×2160p@50Hz] [3840×2160p@60Hz] [4096×2160p@24Hz] [4096×2160p@25Hz] [4096×2160p@30Hz] [4096×2160p@50Hz] [4096×2160p@60Hz] GET OUT B TIMING Show the currently selected scaling resolution number for Output GET OUT N1 TIMING STRING Show the current output timing details for Output N1.
  • Page 26 COMMAND Description and Parameters SET OUT B CONTRAST N1 Set Output B’s contrast level. N1 = 0 ~ 60 [Contrast] GET OUT B CONTRAST Show Output B’s current contrast level. SET OUT B BRIGHTNESS N1 Set Output B’s brightness level. N1 = 0 ~ 60 [Brightness] GET OUT B BRIGHTNESS...
  • Page 27 COMMAND Description and Parameters SET OUT B NR N1 Set the amount of noise reduction to apply to Output B’s source. Available values for N1: [Off] [Low] [Middle] [High] [Auto] GET OUT B NR Show Output B’s current noise reduction setting. SET OUT B R GAIN N1 Set Output B’s red gain level.
  • Page 28 COMMAND Description and Parameters SET OUT B ASPECT RATIO N1 Set Output B’s aspect ratio. Available values for N1: [Overscan] [Full] [Best fit] [Pan scan] [Letterbox] [Underscan 2] [Underscan 1] [Follow input] [Zoom mode] GET OUT B ASPECT RATIO Show the current aspect ratio setting for Output B. GET OUT ASPECT RATIO LIST List all available aspect ratios.
  • Page 29 COMMAND Description and Parameters SET AUDIO OUT N1 MUTE N2 Enable or disable audio mute on Output N1. N1 = A ~ B [Output port] Available values for N2: [Mute off] [Mute on] GET AUDIO OUT N1 MUTE Show the current mute state of Output N1. N1 = A ~ B [Output port] SET ALL AUDIO OUT MUTE N1...
  • Page 30 COMMAND Description and Parameters GET IN N1 HDCP STATUS Show the current HDCP status of Input N1. N1 = 1 ~ 4 [Input port] Available HDCP status types: [Unsupported] [HDCP 1.4] [HDCP 2.2] [Unknown] GET OUT N1 HDCP STATUS Show the current HDCP support level on Output N1. N1 = A ~ B [Output port] Available HDCP support types:...
  • Page 31 COMMAND Description and Parameters SET IN N1 EDID N2 Set the EDID for Input N1 to EDID N2. N1 = 1 ~ 4 [Input port] Available values for N2: [FHD 2CH] [FHD MCH] [UHD 2CH] [UHD MCH] [UHD+ 2CH] [UHD+ MCH] [User EDID 1] [User EDID 2] [User EDID 3]...
  • Page 32 COMMAND Description and Parameters GET USER N1 EDID DATA List User EDID N1’s EDID data in ASCII HEX. N1 = 1 ~ 4 [User EDID] GET INTERNAL N1 EDID DATA List Internal EDID N1’s data in ASCII HEX. N1 = 1 ~ 6 [Internal EDID] GET SINK N1 EDID DATA List Output N1’s sink’s EDID data in ASCII HEX.
  • Page 33 COMMAND Description and Parameters GET ALL IN EDID LIST List the EDIDs assigned to all inputs. SET OUT ALL OSD TIMEOUT N1 Set the OSD display timeout length, or disable the timeout. Available values for N1: [No timeout] [5 seconds] [10 seconds] [15 seconds] [20 seconds]...
  • Page 34 COMMAND Description and Parameters SET OUT ALL OSD HPOSITION N1 Set the horizontal position of the OSD. N1 = 0 ~ 60 [Horizontal position] GET OUT ALL OSD HPOSITION Show the current horizontal position of the OSD. SET OUT ALL OSD VPOSITION N1 Set the vertical position of the OSD.

  • Page 35: Connection Diagram

    7. CONNECTION DIAGRAM RS-232 Equipped PC/Laptop Set-top Box Media Player Game Console HDMI RS-232 Inputs Power Supply HDMI IN HDMI OUT RS-232 TX RX DC 5V BYPASS SCALE HDMI Outputs UHDTV UHDTV...

  • Page 36: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Ports 4×HDMI Output Ports 2×HDMI Control Port 1×RS-232 (Terminal Block) Other Port 1×Service (USB Type-A) IR Frequency 30–50kHz (30–60kHz under ideal conditions) Baud Rate 19200bps Power Supply 5V/3A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model: ±8kV (Air Discharge)

  • Page 37: Video Specifications

    8.2 Video Specifications Input Output Bypass Scaled Supported Resolutions (Hz) HDMI HDMI HDMI 720×400@85    720×480i@60    720×480p@60    640×480@60/72/75/85 60Hz   720×576i@50    720×576p@50    800×600@56/60/72/75/85 60Hz  ...

  • Page 38: Cable Specifications

    Input Output Bypass Scaled Supported Resolutions (Hz) HDMI HDMI HDMI 2560×1440@60 (RB)    3840×2160@24/25/30    3840×2160@50/60 (4:4:4)    3840×2160@50/60 (4:2:0)    4096×2160@24/25/30    4096×2160@50/60 (4:4:4)    4096×2160@50/60 (4:2:0) ...

  • Page 39: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM ASCII American Standard Code for Information Interchange Consumer Electronics Control Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range HDTV High-Definition Television Infrared Light-Emitting Diode LPCM Linear Pulse-Code Modulation...
  • Page 40 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
