- Page 1 CS-803MDP Mini-DisplayPort to HDMI Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. - Page 5 CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 OSD Menu .........4 7.
-
Page 6: Introduction
1. INTRODUCTION The Mini-DisplayPort to HDMI scaler allows you to display the output of any standard DisplayPort 1.1 source (such as Mac laptops) on HDMI TVs or monitors. This unit also supports converting DisplayPort audio (up to LPCM 2.0) to HDMI audio. Perfect for use in boardrooms or for individuals and professionals at home or in the office who need increased compatibility between their equipment. -
Page 7: Operation Controls And Functions

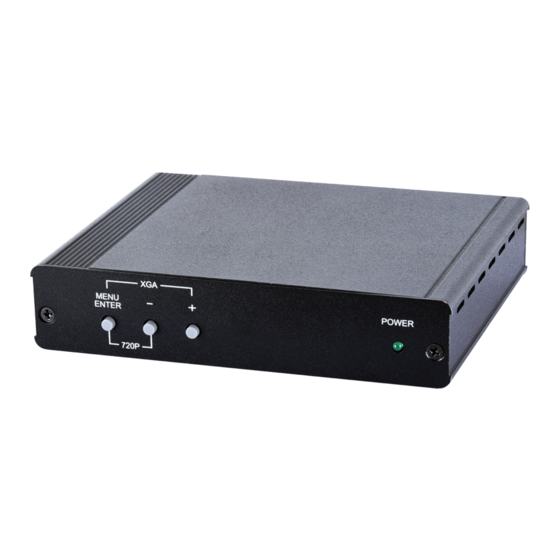

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER ENTER 720P MENU/ENTER Press to enter the OSD menu, or to confirm selections within the OSD. Note: Press the ENTER and “-” buttons together to switch the output resolution to 720p60. Press the ENTER and “+” buttons together to switch the output resolution to XGA. -
Page 8: Rear Panel
6.2 Rear Panel HDMI OUT SERVICE MDP IN DC 5V HDMI OUT Connect to HDMI TVs, monitors or amplifiers for digital video and audio output. SERVICE This slot is reserved for firmware update use only. MDP IN Connect to DisplayPort source equipment such as Mac laptops or PCs with DisplayPort output cards using a DisplayPort to Mini- DisplayPort adapter cable if necessary. -
Page 9: Osd Menu
1920×1200 By Native Exit Info. OSD Mode Exit Audio Mute About CS-803MDP FW Ver. Factory Reset System Reset (720p60/Un-mute) Exit Note: When the output timing is set to “By Native”, but the detected timing does not match a supported resolution, the output will be set to... -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Laptop Mini-DisplayPort Input Power Supply HDMI OUT SERVICE MDP IN DC 5V HDMI Output HDTV... -
Page 11: Specifications
8. SPECIFICATIONS Input Ports 1×Mini-DisplayPort, 1×USB Service Output Port 1×HDMI Mini-DisplayPort Video 2.7 Gbps & 1.62 Gbps/Lane Bandwidth Mini-DisplayPort Input VGA (640×480)~WQXGA (2560×1600) Resolutions Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions 145 mm (W)×124 mm (D)×30 mm (H) - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
